Lockton | SKU: SGDC165-S

Lockton Door Closer Series 165 - EN 2-6

$241.00

Shipping calculated at checkout.

Finish

Pickup available at Lockmart Braeside

Usually ready in 2-4 days

Delivery and Shipping

We aim to process your order same business day, or next business day at latest!
It's impossible for us to stock everything. Please see Shipping Policy, or reach out to our team.

Description

PRODUCT DESCRIPTION

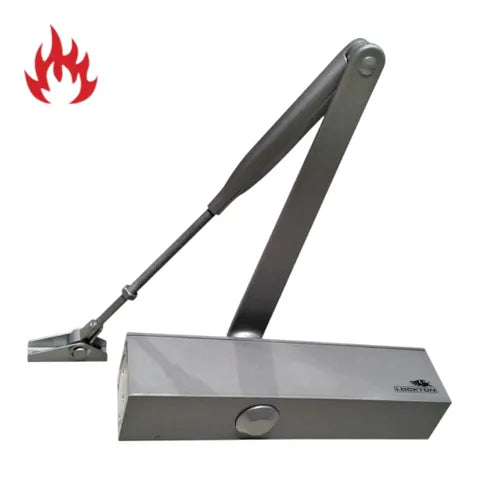

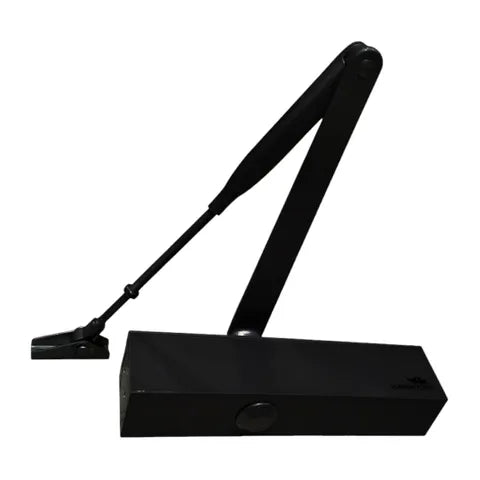

The Lockton Door Closer Art. SGDC165-S Rack & Pinion Door Closer.

PRODUCT SPECIFICATION

Rack & Pinion operation
Suits Left & Right Opening Doors
Suits Inward & Outward Opening Doors
Delayed action function between 180° - 65°

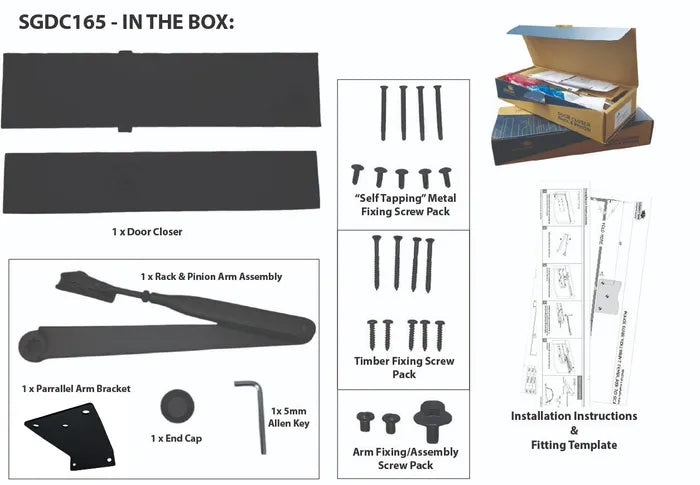

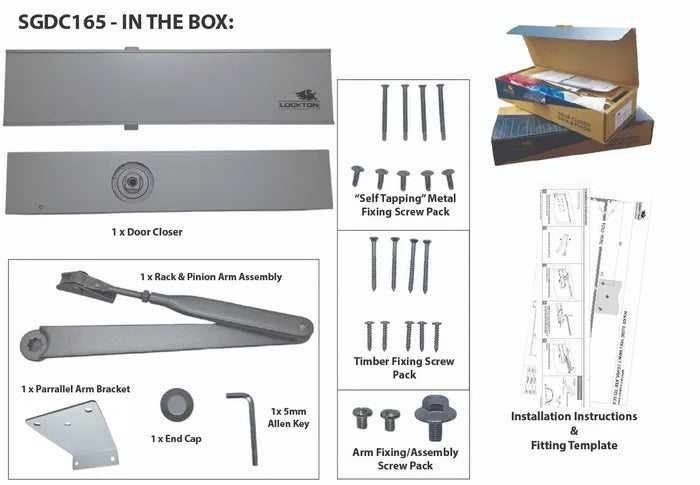

Comes with Standard arm
Parallel Arm Bracket
Supplied with both Timber and "Self Tapping" Metal Screw Packs
Adjustable Backcheck (opening limit)
Simple to read installation instructions
Can be fitted with optional Hold Open Arm or Slide Track Arm (please see RELATED PRODUCTS)
Closing & Latching Speed Adjustment
Closing range 180° - 15°
Latching speed range 15° - 0°
Suitable for door sizes 2-6 adjustable on door with Hex Key
Size #2: Door width of 850mm & Weight of 40kg
Size #3: Door width of 950mm & weight of 60kg
Size #4: Door width of 1100mm & Weight of 80kg
Size #5: Door width of 1250mm & Weight of 100kg
Size #6: Door width of 1400mm & Weight of 120kg
10 Year Warranty (*)
Fire Rated AS1905, As1530
Tested & certified to BS EN 1154:1997
MADE IN TAIWAN
