Borg Mechanical BL5001 Code Lock

Borg BL5001 Mechanical Code Lock

The Borg BL5001 is a fully mechanical code lock built for internal access control in light to medium duty applications. No battery, no power supply, no app — just a large 10-digit keypad, a solid lever handle, and up to 2048 possible code combinations.

It's a straightforward, reliable lock that suits offices, storerooms, internal access doors, and anywhere you need to control entry without the complexity of an electronic system.

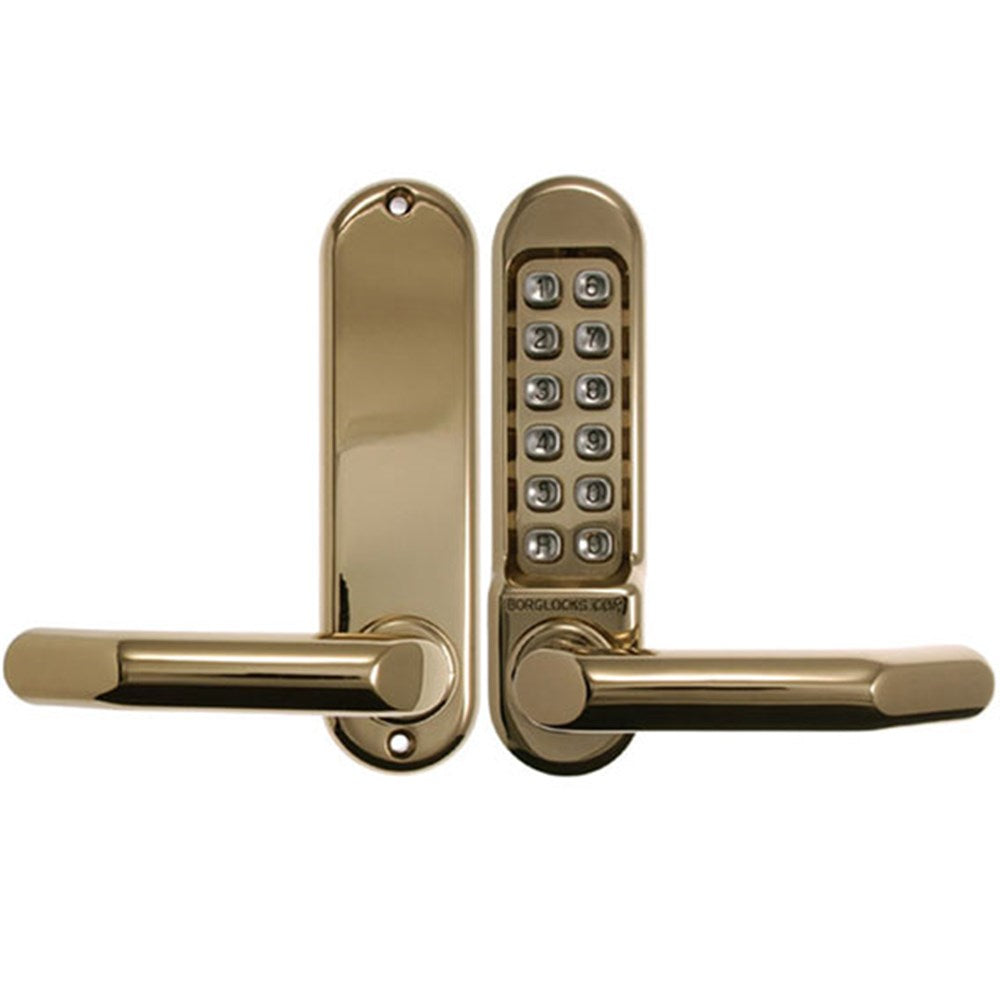

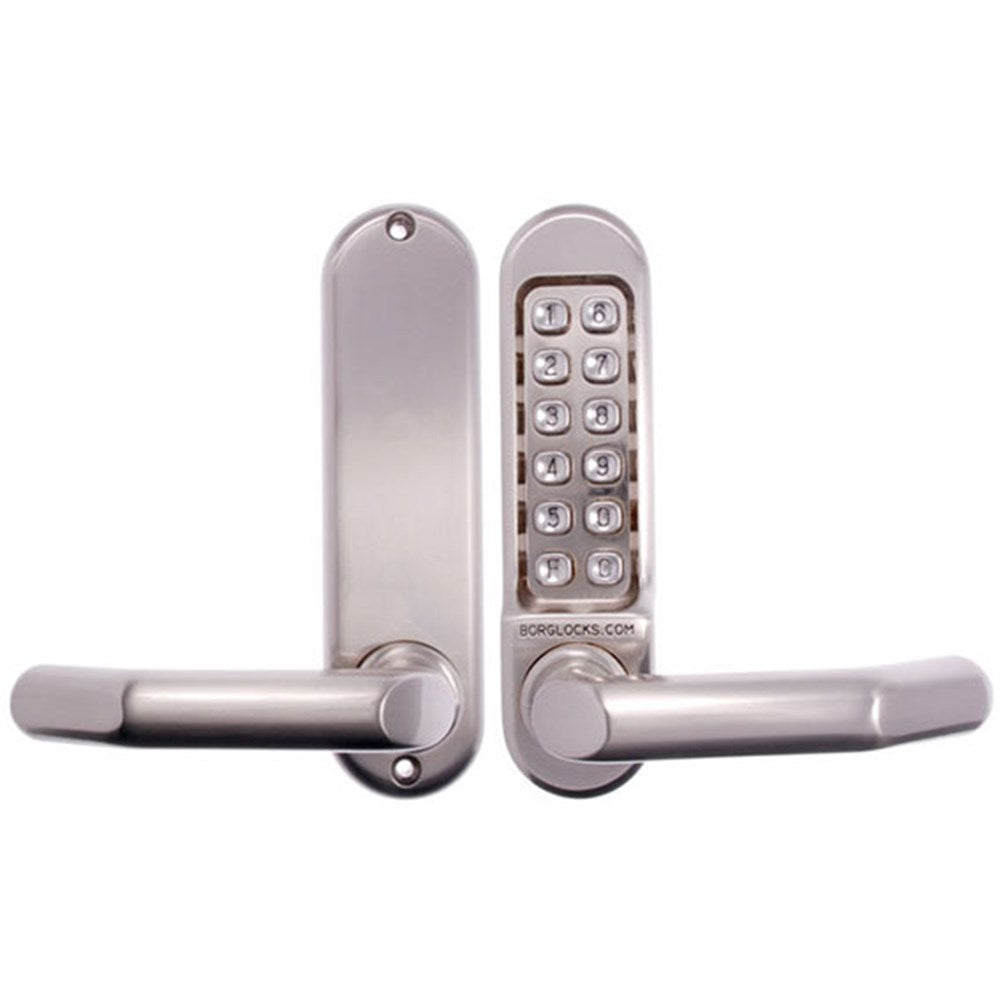

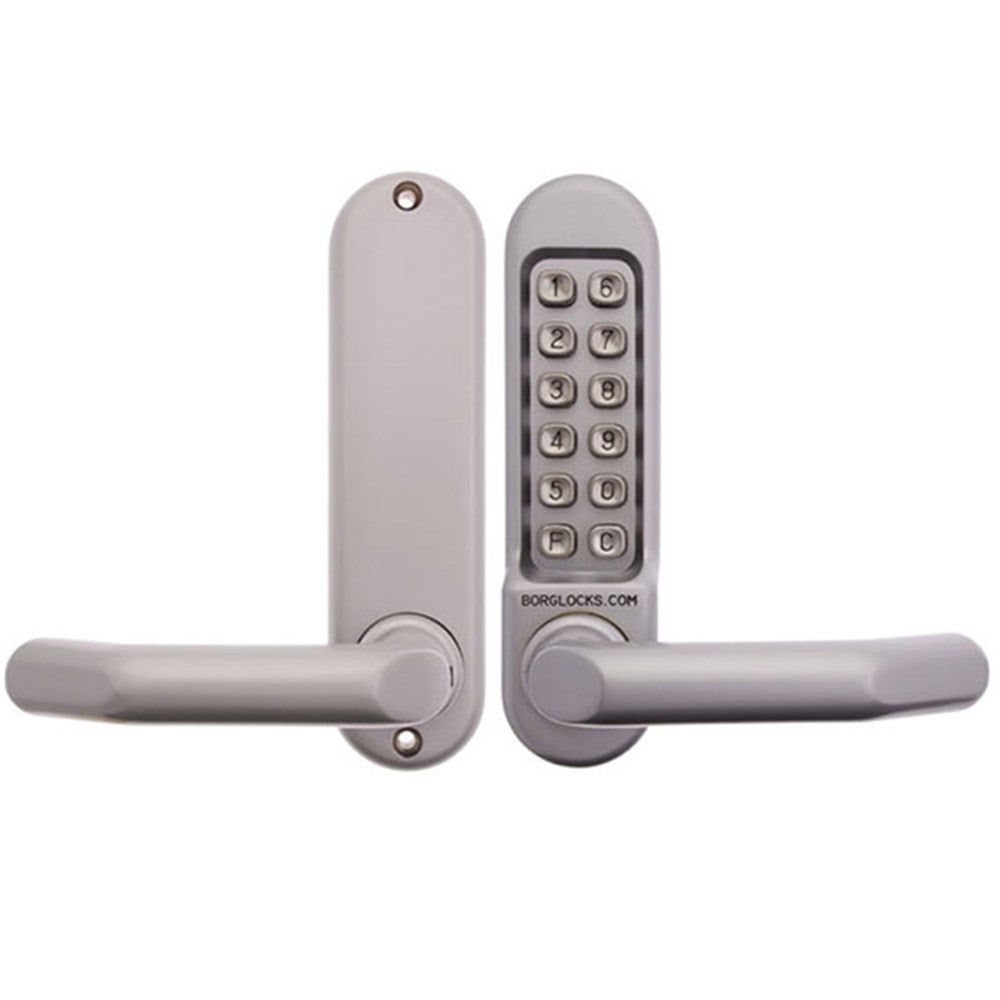

Available in Satin Chrome, Polished Brass and Stainless Steel.

Key Features

• Fully mechanical — no battery or power required
• Large 10-digit keypad with indented buttons for easy use
• Full size lever handles with soft grip rubber insert
• Clutched lever protection against forced entry and lock damage
• Optional passage function (holdback) for hands-free access during business hours
• Easy code change procedure — up to 2048 combinations (1024 with passage function)
• 60mm heavy duty tubular latch with 12mm bolt projection
• 8mm square drive — compatible with a wide range of leading lock brands
• Fully reversible — suits left and right hand doors
• Fire rated — tested up to 4 hours on fire door assemblies to AS 1905.1-2005
• Suits doors 35–54mm thick
• For internal use

Technical Specifications

Also available

Looking for an external-rated mechanical code lock? Borg makes external versions suited to gates, external doors and outdoor applications. Browse our mechanical code lock range →

Need help choosing the right lock for your door? Call us on 1300 730 539 or email sales@lockmart.com.au and we'll sort you out.
