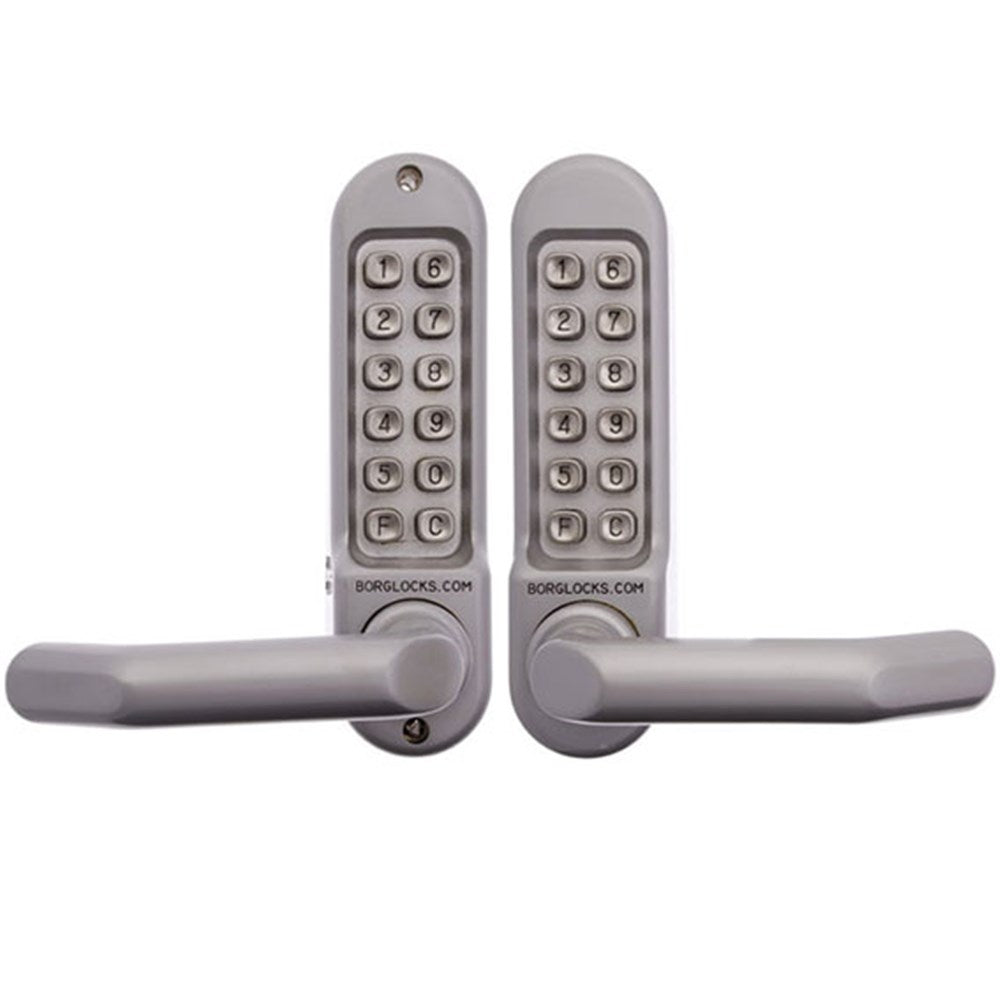

Borg Mechanical Door Lock Back to Back Keypads BL5051SC

The Borg BL5000 Mechanical Digital Lock is a reliable keyless access solution designed for light to medium duty internal doors. Featuring fully mechanical operation, the BL5000 eliminates the need for batteries or wiring, making it a dependable access control option for offices, storerooms, staff areas and residential applications.

Equipped with large back-to-back keypads, the BL5000 allows authorised users to enter a code from either side of the door while maintaining secure access control. The full-size lever handles with soft-grip rubber inserts provide comfortable operation, while the clutched handle mechanism protects the lock against forced entry and internal damage.

The lock includes a 60 mm heavy duty tubular latch and an 8 mm square drive, allowing it to operate a wide range of common mortice and tubular latches. An optional passage function can also be enabled when free access is required.

With up to 2048 possible code combinations, the Borg BL5000 offers dependable security for internal applications without the complexity of electronic systems.

Key Features

• Fully mechanical digital lock – no batteries or wiring required
• Back-to-back keypads allow coded access from both sides of the door
• Large 10-digit keypad with indented buttons for easy operation
• Clutched lever handles help protect against forced entry and lock damage
• Full size lever handles with soft-grip rubber inserts
• 60 mm heavy duty tubular latch
• 12 mm bolt projection
• Optional passage mode for free access when required
• Up to 2048 possible code combinations
• Fully reversible for left or right hand doors
• Simple code change procedure
• Satin chrome finish

Applications

The Borg BL5000 is ideal for:

• Office internal doors
• Staff areas
• Store rooms
• Residential internal access doors
• Light commercial environments

Note: This lock is designed for light to medium usage areas and is not recommended for high-traffic commercial entry doors.
