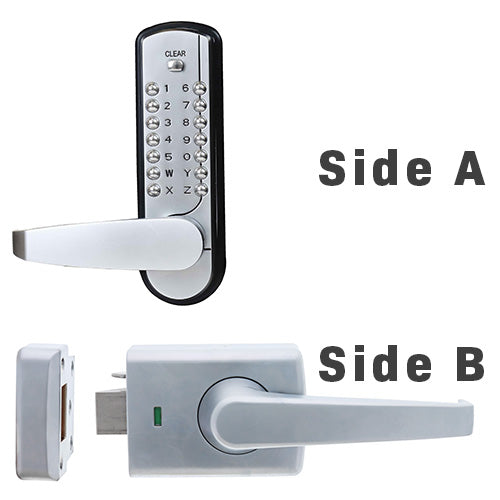

Carbine CDL7200LL Heavy Duty Mechanical Code Lock with Alpha Lock

Carbine CDL7200LL Heavy Duty Mechanical Code Lock with Alpha Lock

The Carbine CDL7200LL is a heavy duty BCA compliant mechanical code lock supplied complete with a Carbine Alpha internal lock and lever. Like the CDL7200-HD, it's built for high volume commercial use — cycle tested to exceed 100,000 openings, weather tested to 240 hours salt spray, and fire rated.

The key difference with the LL model is the internal Carbine Alpha lock, which allows the door to be locked from the inside independently of the code lock. Ideal for storerooms, offices and commercial spaces where you need both code-controlled entry and the ability to secure the door from within.

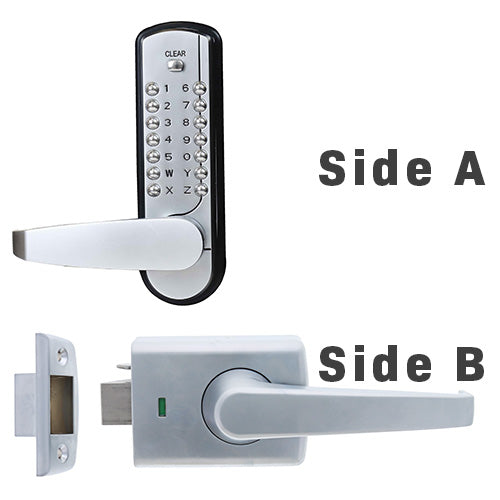

Two variants are available depending on your door configuration — standard strike or outward opening strike. Both are 60mm backset, Satin Chrome.

Important note on the external lever: The external lever features a security break point — it will shear off under excessive pull force to prevent forced entry. It should not be used as a pull handle on heavy doors. If your installation requires a pull handle, use an additional pull handle alongside this lock.

Key Features

• Fully mechanical — no battery or power required
• BCA compliant — AS1428 compliant with levers on both sides
• Supplied with Carbine Alpha internal lock and lever
• Clutching external BCA compliant lever with security break point
• Ball bearing-style push buttons — increased resistance to code manipulation
• Heavy duty cryptographic combination elements
• Easy code change via switch system on rear of pad — no disc changes required
• Cycle tested to exceed 100,000 openings
• Weather tested to 240 hours salt spray
• 2 hour fire rating (with supplied latchset)
• Reversible handles — suits left and right hand doors
• Larger body footprint — retrofits over existing lockset holes
• Suits Carbine NK2000 and Lockwood 530 retrofit applications
• Suits doors 32mm to 54mm thick
• 60mm backset
• Finish: Satin Chrome

Technical Specifications

Variants

Also available

• Carbine CDL7200-HD Mechanical Code Lock — same heavy duty platform without the internal Alpha lock
• Carbine NK2000SC Mechanical Code Lock — light to medium duty option

Browse the full Mechanical Code Lock range →

Need help choosing or want it professionally installed? Call us on 1300 730 539 or email sales@lockmart.com.au.
