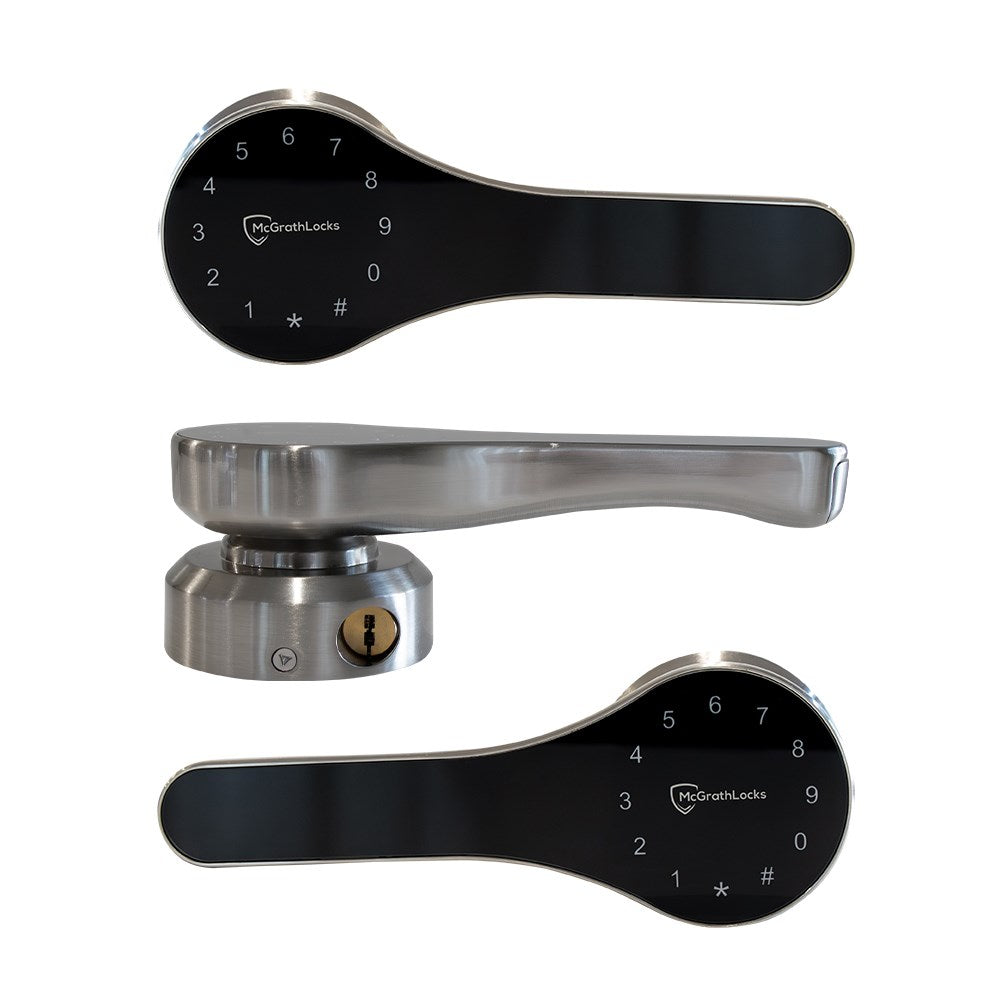

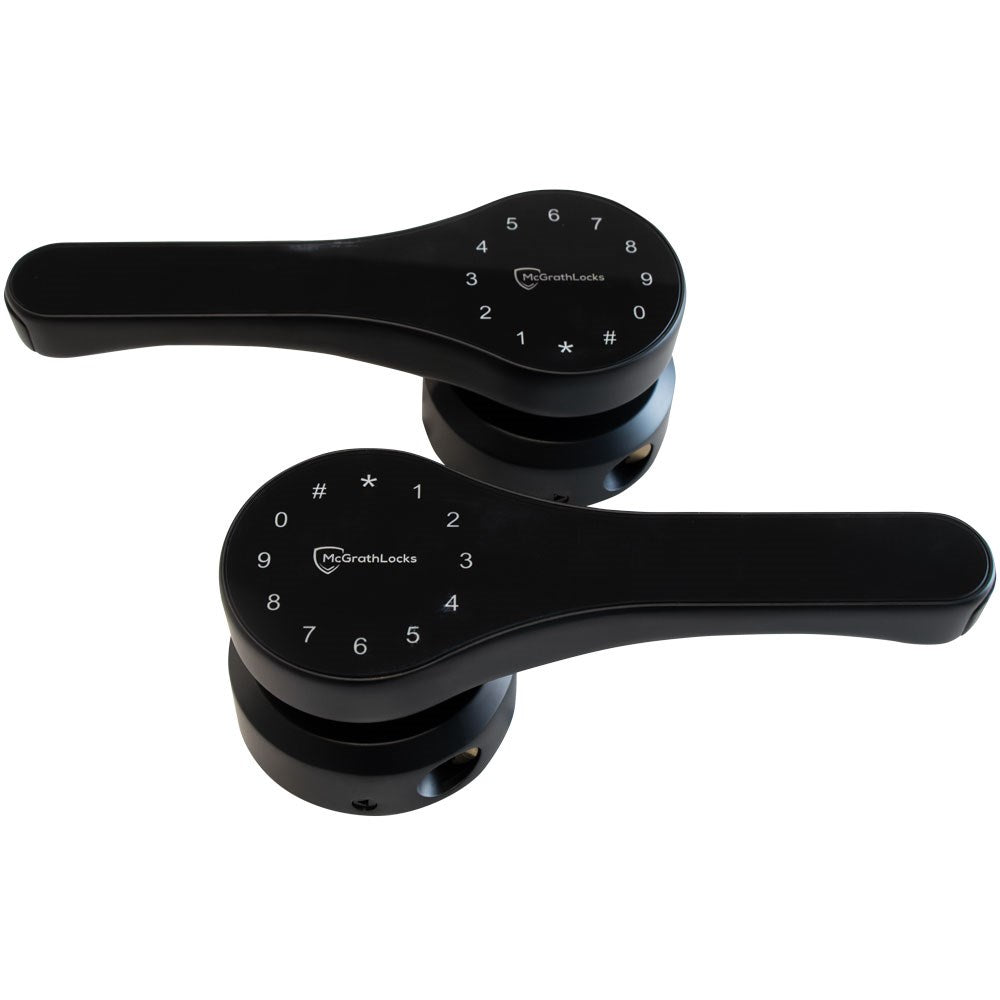

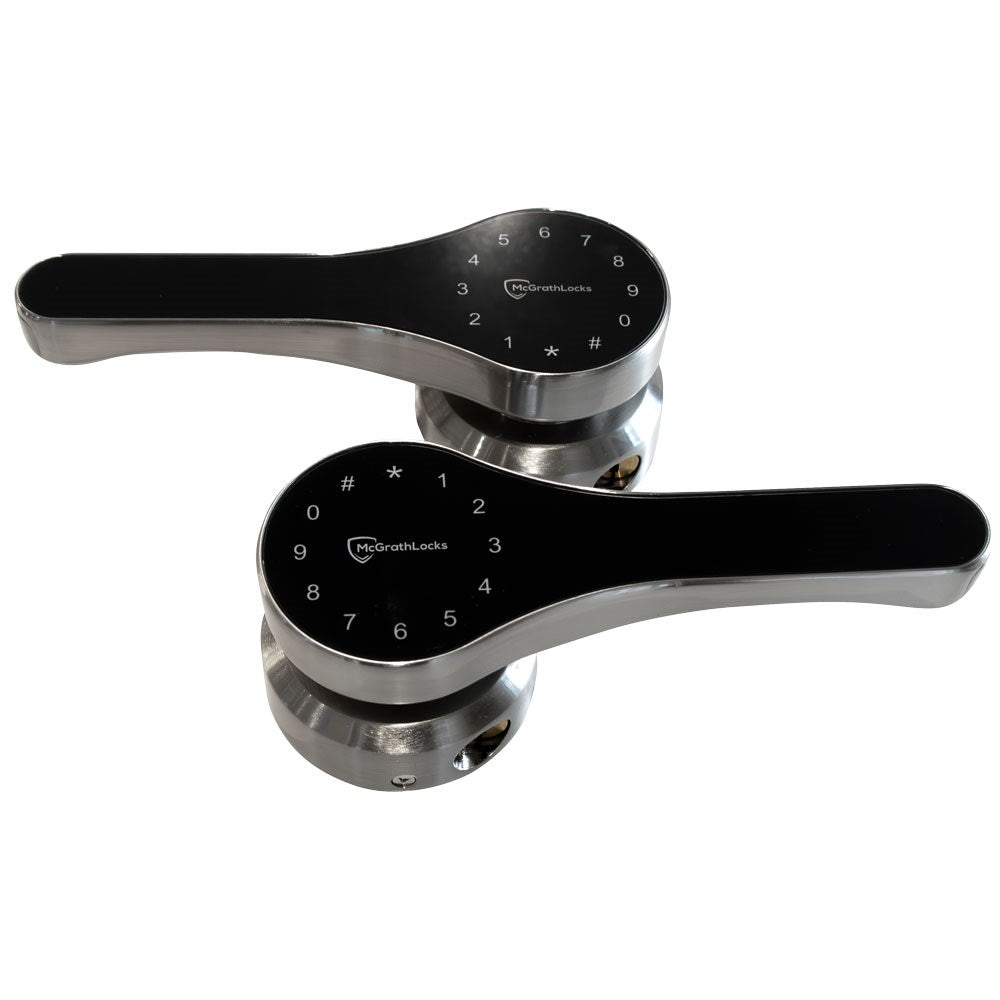

McGrath Ascot Digital Lock Double Sided - IP66 Rating

The ASCOT by McGrath Locks is a double sided digital lock designed for the Australian market. A great addition to the home, office or business, this 4 in 1 digital lock is specially designed for external applications such as a gate, where both sides need to be independently locked. It provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Utilising the powerful McGrath Locks Bluetooth App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the ASCOT from anywhere in the world using the McGrath Locks App.

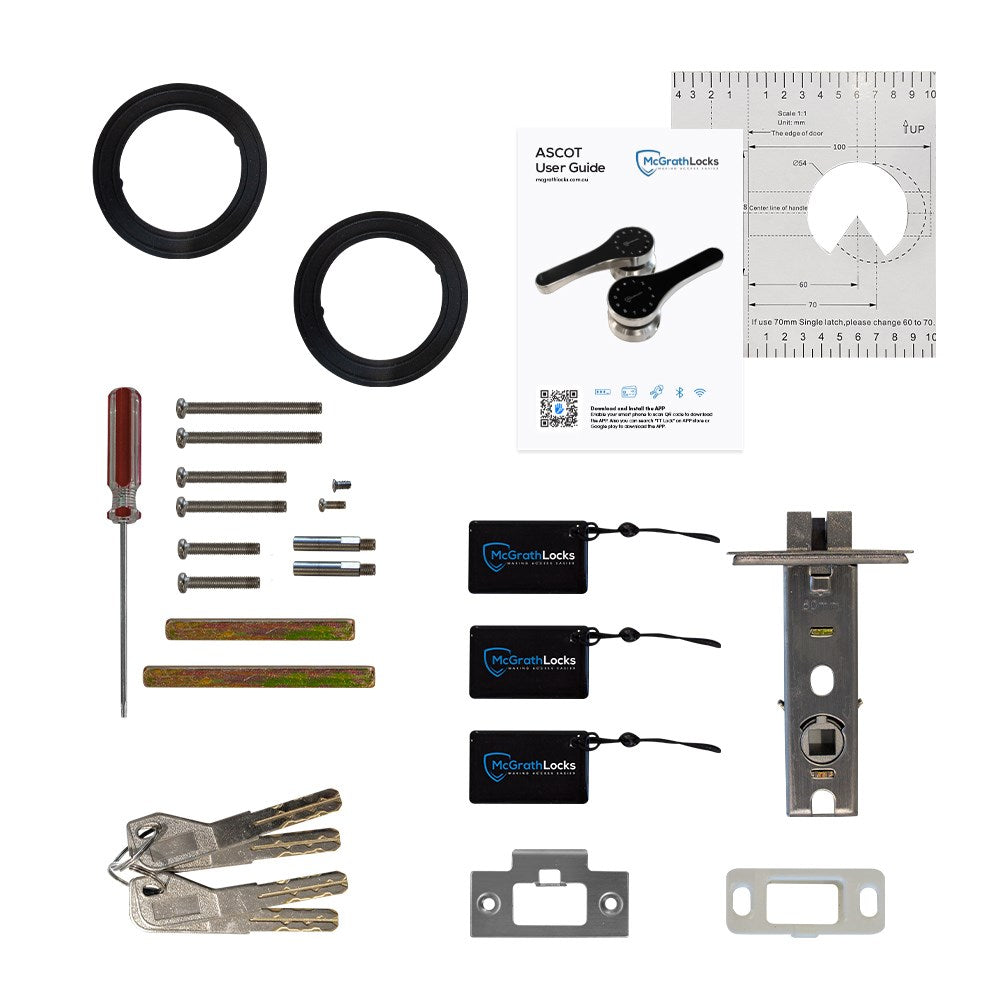

The ASCOT has an IP66 rating which makes it ideal for external applications where a robust solution is required. The lock is supplied with a tubular latch but can also be installed with a mortice lock should the need arise.

• Fobs / Cards / And other credentials and other parts, Found Here
• Lock functions and access easily managed via McGrath Locks App.
• Enrol Pin Codes, RFID credentials and send eKeys to your family and visitors.
• Passage Mode can be used to leave your gate open when required.
• Anti peep code function stops unathorised people seeing the correct code inputted.
• Incorrect attempt lockout.
• Reset button can be disabled in App for additional security.
• Audit trail within App to see who accessed your door and when.
• Low battery alert (within App and audible at the lock).
• 4 x AAA Alkaline Batteries Per Handle (not included).
• Mechanical key override.
• Tempered Glass Screen for extra durability.
• Field changeable handing.
• Outside handle projection 60 mm.
• Lock rose dimensions 75 mm.
• Finished in satin chrome.
• Australian Registered Design Number 202215177
