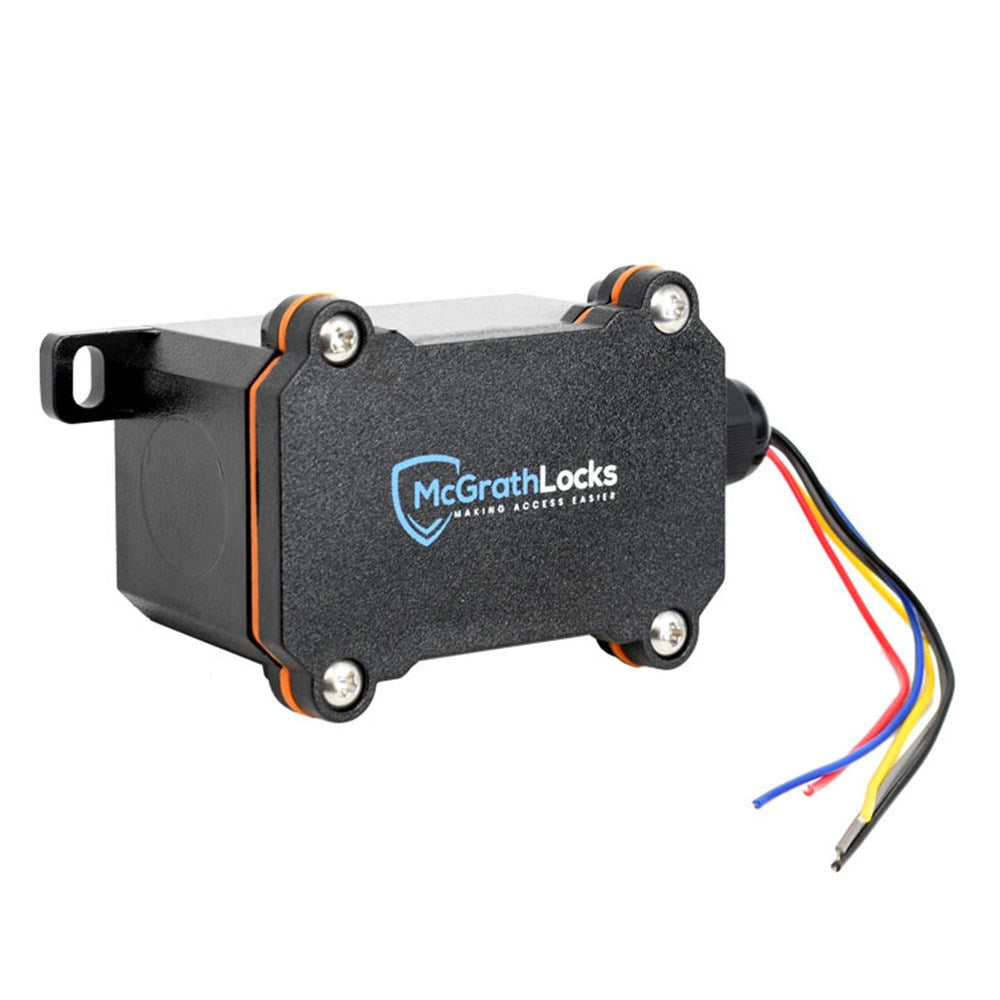

McGrath Locks Z Chip, 12-24v Relay Supplied in Weather Resistant Case

The McGrath Locks Z Chip is a McGrath Locks operated 12 – 24v dry contact relay. It is perfect solution for expanding your McGrath Locks ecosystem for roller doors, gates, bollards, or via a buffered relay -  electric strikes and maglocks. The McGrath Locks wireless keypad can be connected to the Z Chip for Pincode access to your doors or gate.

Connecting a gateway also provides remote access through the McGrath Locks App to your device making it perfect for deliveries behind gates or roller doors. The controller can be set to open / close the low voltage relay from 1 – 900 seconds via the McGrath Locks App.

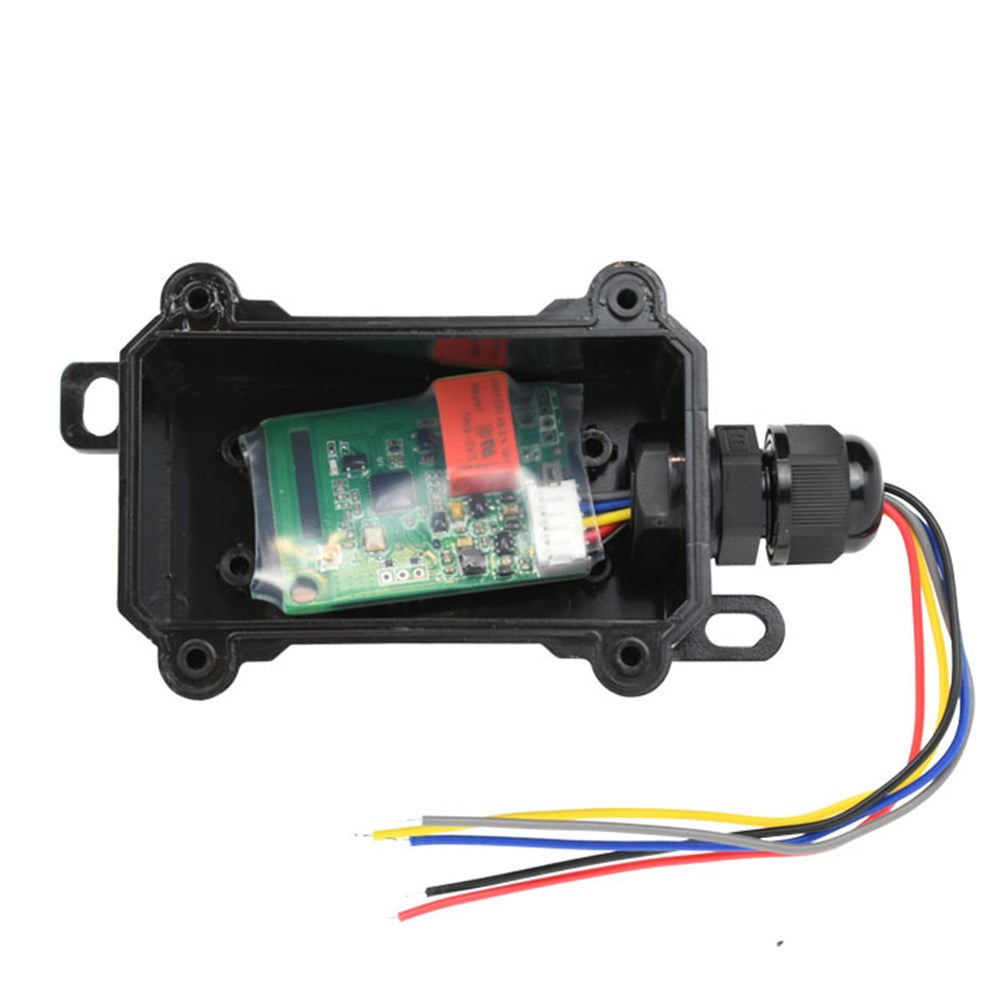

It is supplied with an IP68 weather enclosure for protection on external installations.

Z Chip

• 12- 24v DC.
• BLE 4.0 and above.
• Built-in real time chip.
• Built-in antenna.
• 38 L x 27 W mm.
• Can add one wireless keypad per Z Chip.
• Working temperature -20° ~ 70°.

Weather case enclosure

• 50 L x 30 H x 21 mm W.
• IP68.
