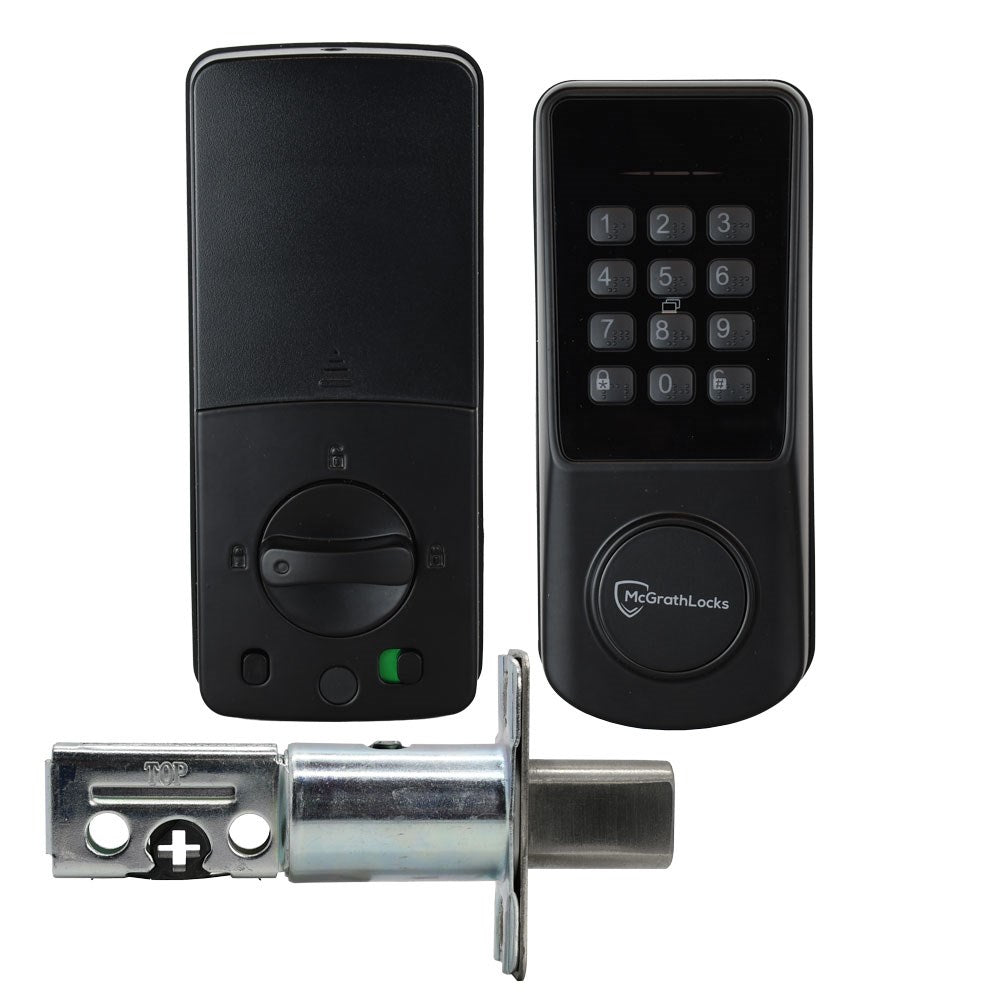

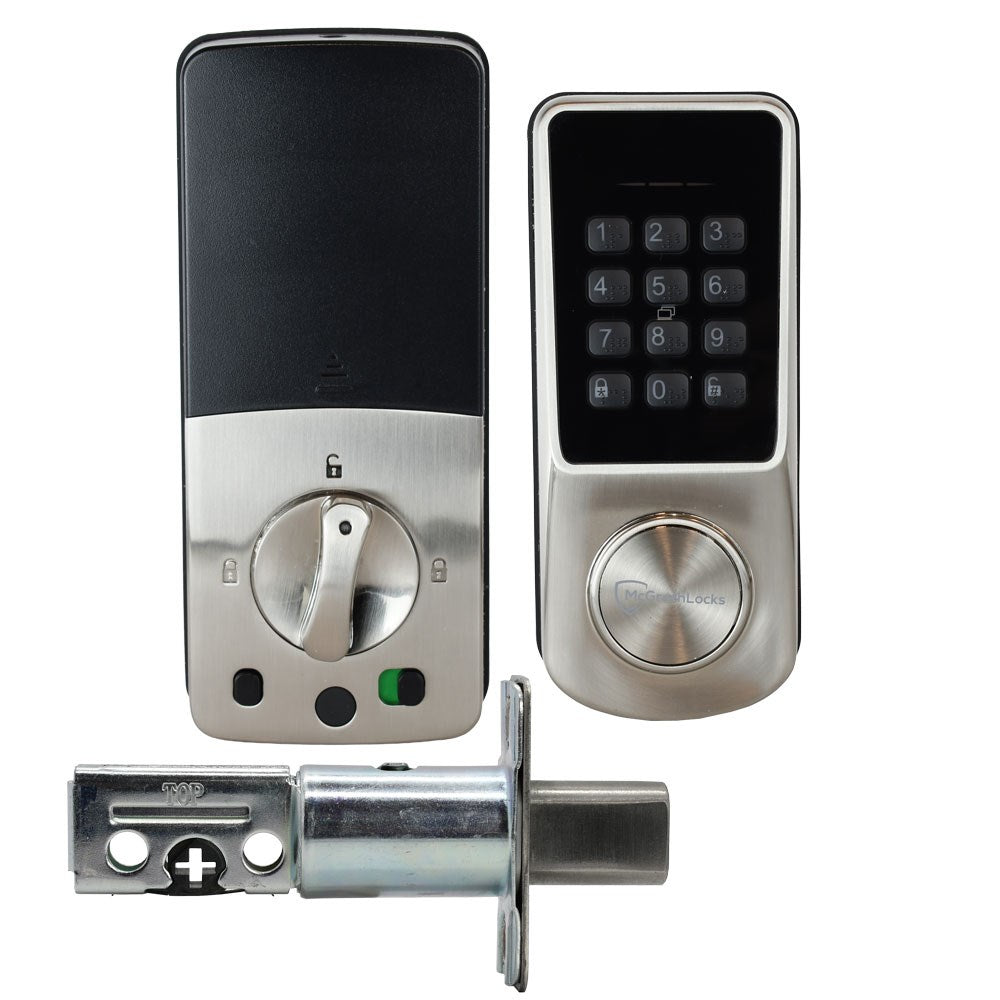

McGrath Ashgrove 4-in-1 Digital Deadbolt

The Ashgrove by McGrath Locks is a sleek, modern digital deadbolt designed specifically for the Australian market. Combining contemporary styling with advanced access control, it offers secure and convenient entry for residential and light commercial applications.

Featuring a durable tempered glass screen with raised braille buttons, the Ashgrove improves usability across all environments while maintaining a refined appearance. Available in Satin Nickel and Matt Black finishes, it suits a wide range of architectural styles.

With 4-in-1 access options and full control via the McGrath Locks App, you can easily manage users, monitor activity and control your door from anywhere when connected to a gateway.

Access Options

• PIN Code
• RFID Credential
• eKeys via Bluetooth (BLE)
• Mechanical key override (rekeyable PD cylinder)

Smart Features

• Passage Mode (hold door unlocked when required)
• Anti-peep code protection
• Incorrect attempt lockout
• Privacy switch (locks out all access except Administrator & override key)
• Reset button can be disabled via app
• Audit trail to track access history
• Supplied with door sensor for optional door monitoring
• Low battery alert (audible + in-app)
• USB-C emergency power input

Built for Australian Conditions

• Fire-resistant internal construction
• IP65 weather rating (external assembly)
• Anti-saw 304 stainless steel adjustable backset bolt
• Tempered glass screen for added durability

Technical Specifications

• Outside Case: 165mm (H) × 71mm (W) × 28mm (D)
• Inside Case: 166.5mm (H) × 73.5mm (W) × 38.7mm (D)
• Power: 4 × AA alkaline batteries (not included)
• Australian Registered Design #202513992


Documents

ASHGROVE A4 Brochure_489.4 KB
ASHGROVE A4 Datasheet_121.4 KB
ASHGROVE User Guide_4.4 MB
