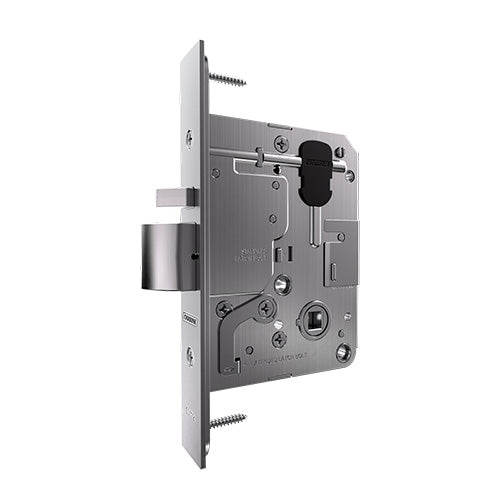

Carbine Longreach Standard Backset Mortice Lock

The Carbine Longreach 60mm standard backset latching mortice lock is built for high-performance security in commercial and residential applications.

Featuring a selectable 15mm or extended 19.5mm latchbolt projection, a refined 45-degree lever operation, and fire-rated durability, Longreach combines smooth functionality with exceptional strength.

Fully retrofit-compatible and tested to over 1 million latching cycles, it's the future of mortice locking.

• Selectable extended latch bolt projection.
• Latch bolt can be set at the standard length of 15mm.
• Latch bolt can be set at an extended length of 19.5mm.
• Deadlatching is operational at both standard and extended latch bolt positions
• Improved deadlatching mechanism allows deadlatching to be operational with door gaps up to 9.5mm.
• New 2 in 1 Carbine XZ cam (CSM72-CAMXZ) can lock and unlock the handle/s and also retract the latch (compatible with this lock only).
• Fire rated for 4 hours
• Improved latching mechanism to prevent door jamming on closing.
• Hardened steel lock bar protection cover to prevent manipulation.
• Configurable locking of either or both handles with an existing X cam.
• 45 degree lever operation of unlatching latch bolt from striker plate.
• Through fixing oval cylinder escutcheon with Carbine Crisi round furniture.
• Selectable Anti-lockout mode (use allen key provided not impact driver)
• The lock is functional with oval cylinders fitted with the standard W, X and Z cams. Note; W-Cam MUST be installed with the leg at the bottom to operate correctly with the CSM72-STA.
• Retrofittable into doors fitted with existing equivalent latching mortice locks.
• Hold back mode can be configured with our Carbine hold back cam (handed) fitted on oval cylinder.
• Latch bolt and deadlatching snib handing for Installation on left- and right-hand opening doors.
• Compatible with most electric strikes.
• Rebate kit available (CSM72-P-RK-SS).
• Extended timber faceplate available (sold separately)
• 60mm backset
• Installation suitable for door thickness from 32mm to 50mm. Extended length hardware available separately for 50-100mm thick doors.
• Optimal (and minimum) door clearance between door and door frame is 3mm with a maximum of 5mm.
• Installation on inward and outward opening doors.
• Stainless steel casing, face plate, latch bolt and deadlatching snib
• Cycle tested to 1,000,000 cycles, far exceeding the highest level of D8 of Australian Standard AS4145:2008*.
• Corrosion tested to 240 hours (equivalent to level C7 of Australian Standard AS4145:2008)*.
• Strength and security tested to the equivalent of S8 of Australian Standard AS4145:2008*. *Tested with Carbine Crisi furniture
