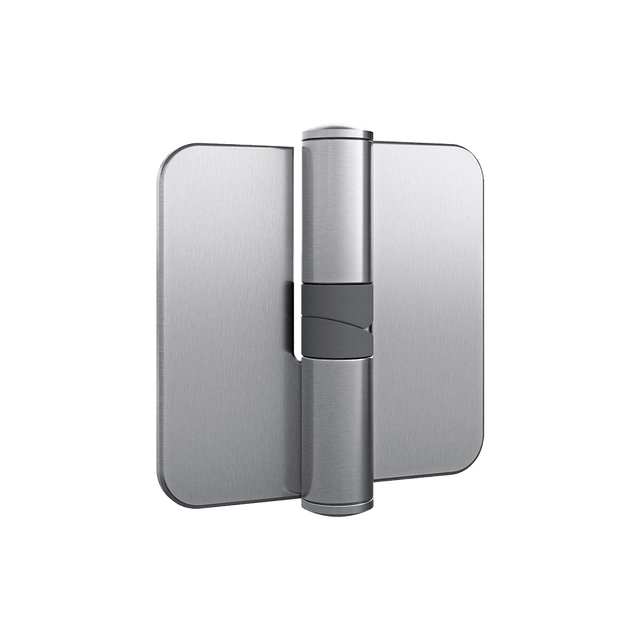

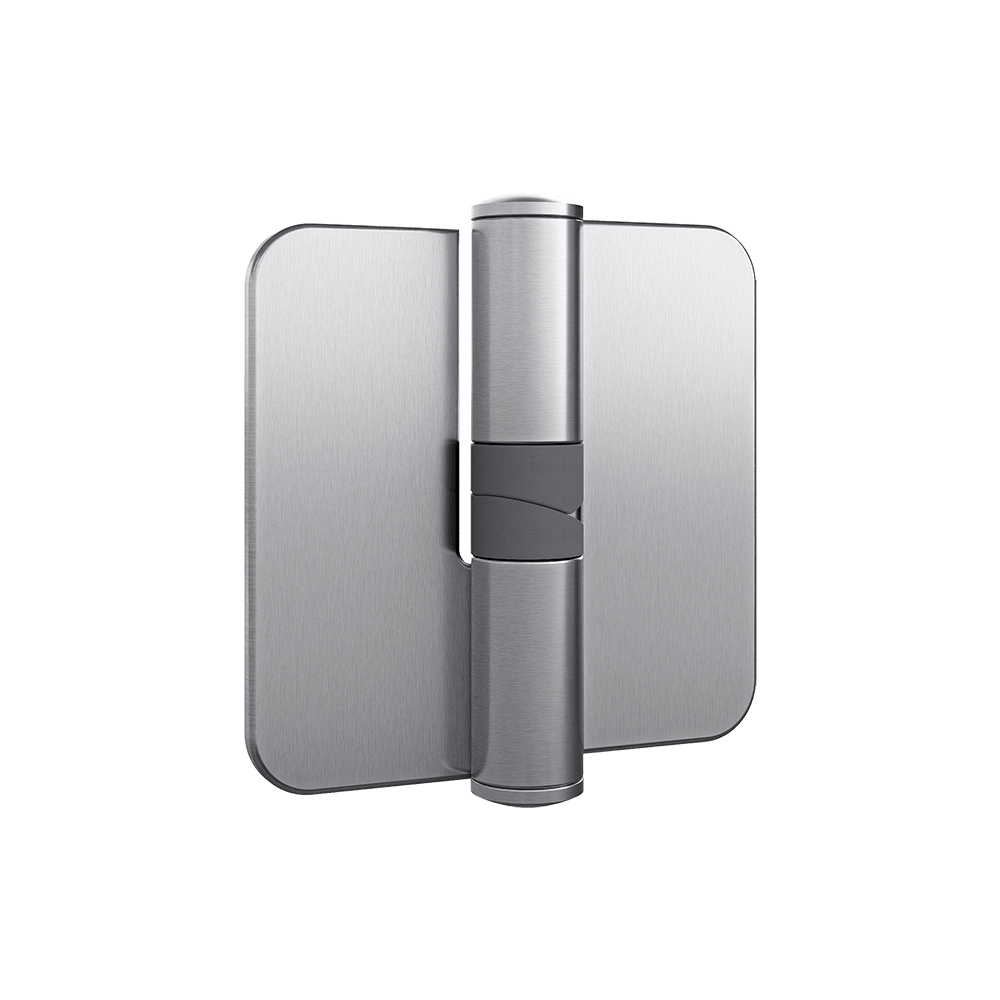

Metlam 207C Stainless Steel Concealed Fix Gravity Hinge

The Metlam 207C Gravity Hinge is a stainless steel, concealed fix hinge for commercial toilet partitions. It suits projects specifying stainless steel hardware and gives a clean finish with hidden fixings and a gravity-driven hold open or hold closed action.

Key features

• Stainless steel construction
• Concealed fixings
• Gravity action: Hold Open or Hold Closed
• Left Hand and Right Hand versions
• Screw fix or bolt through

What's included

• 1 x 207C gravity hinge
• Fixings to suit selected type

Specifications

How to order

Metlam hinges are sold individually. Choose the finish, then the handing and hold function (Left or Right Hand, Hold Open or Hold Closed), then the fixing type. Order three hinges per door.

Ideal for

Commercial washrooms specifying stainless steel partition hardware, including coastal, high-traffic and industrial sites.

Frequently asked questions

Are these hinges sold individually?

Yes, the price is for one hinge. Metlam recommends three hinges per cubicle door to stop the door bowing, so order three per door unless your partition supplier specifies otherwise.

What is the difference between Hold Open and Hold Closed?

Hold Open hinges move the door towards the open position when the cubicle is vacant, so users can see it is free. Hold Closed hinges move the door towards the closed position for a neater look when the cubicle is not in use. Choose one function and use it on every hinge on the door.

How do I work out Left Hand or Right Hand?

Stand in front of the door and look for the hinges. If they are visible on the right-hand side, you need Right Hand hinges; if they are on the left-hand side, you need Left Hand hinges. If you are unsure, send us a photo and we will confirm before dispatch.

How does a gravity hinge work?

A gravity hinge uses a rising cam rather than a spring, so it has no mechanical parts to wear or adjust. Its hold open or hold closed action depends on the door weight and how well the door is aligned, so performance can vary between installations.

Should I choose Screw Fix or Bolt Through?

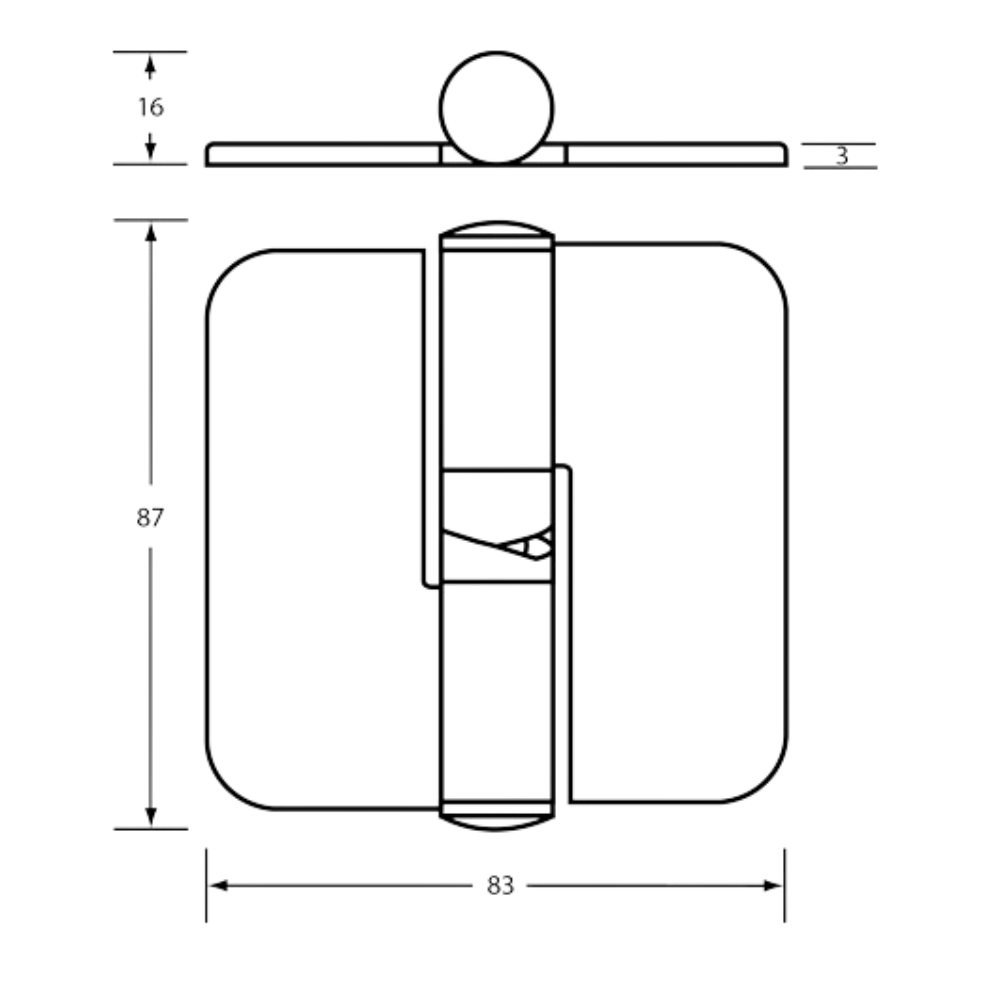

Screw Fix mounts the hinge to the partition board with screws and suits most installations. Bolt Through uses fixings that pass through the board, giving a stronger, more tamper-resistant fixing for high-traffic or vandal-prone washrooms.
