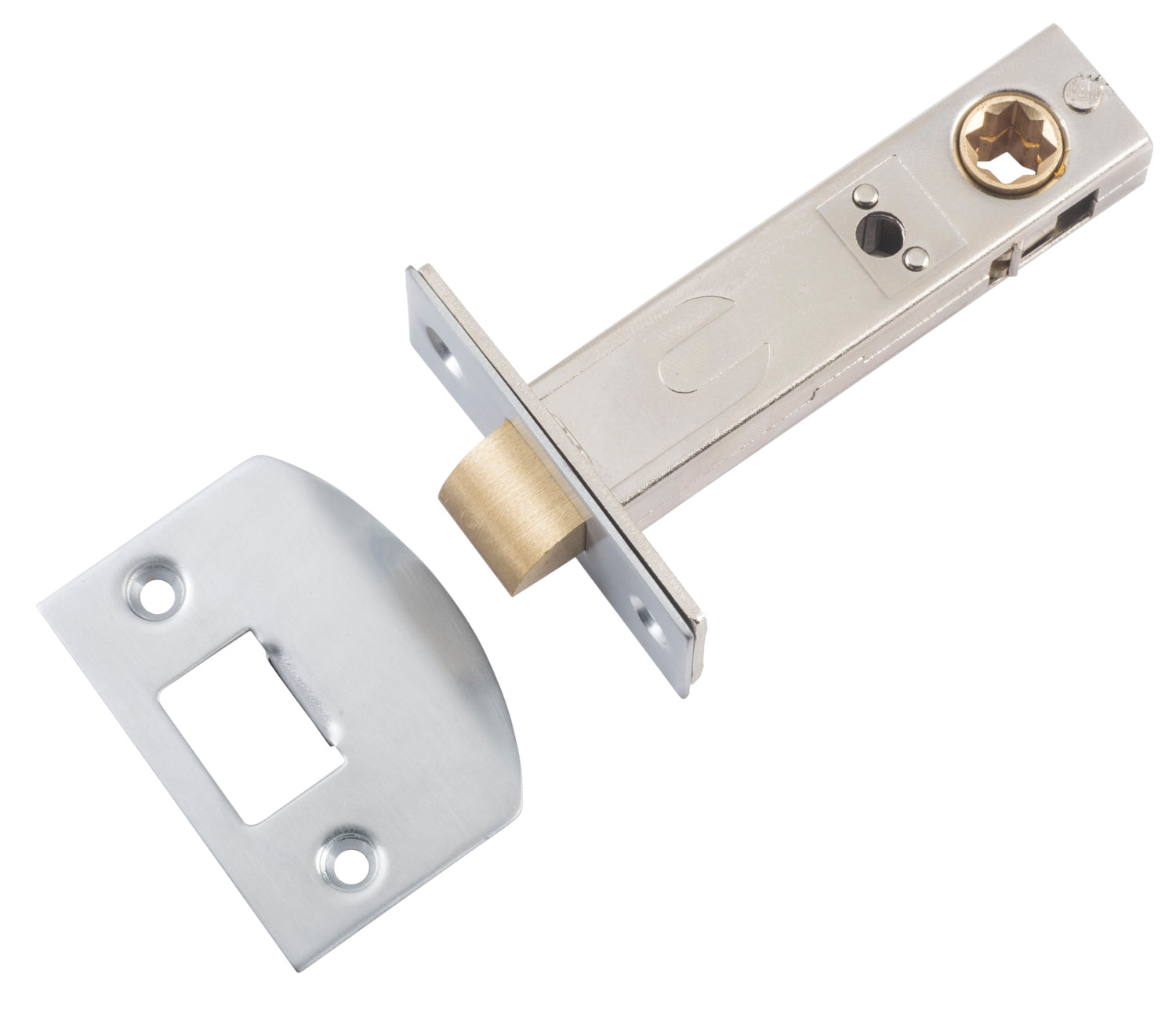

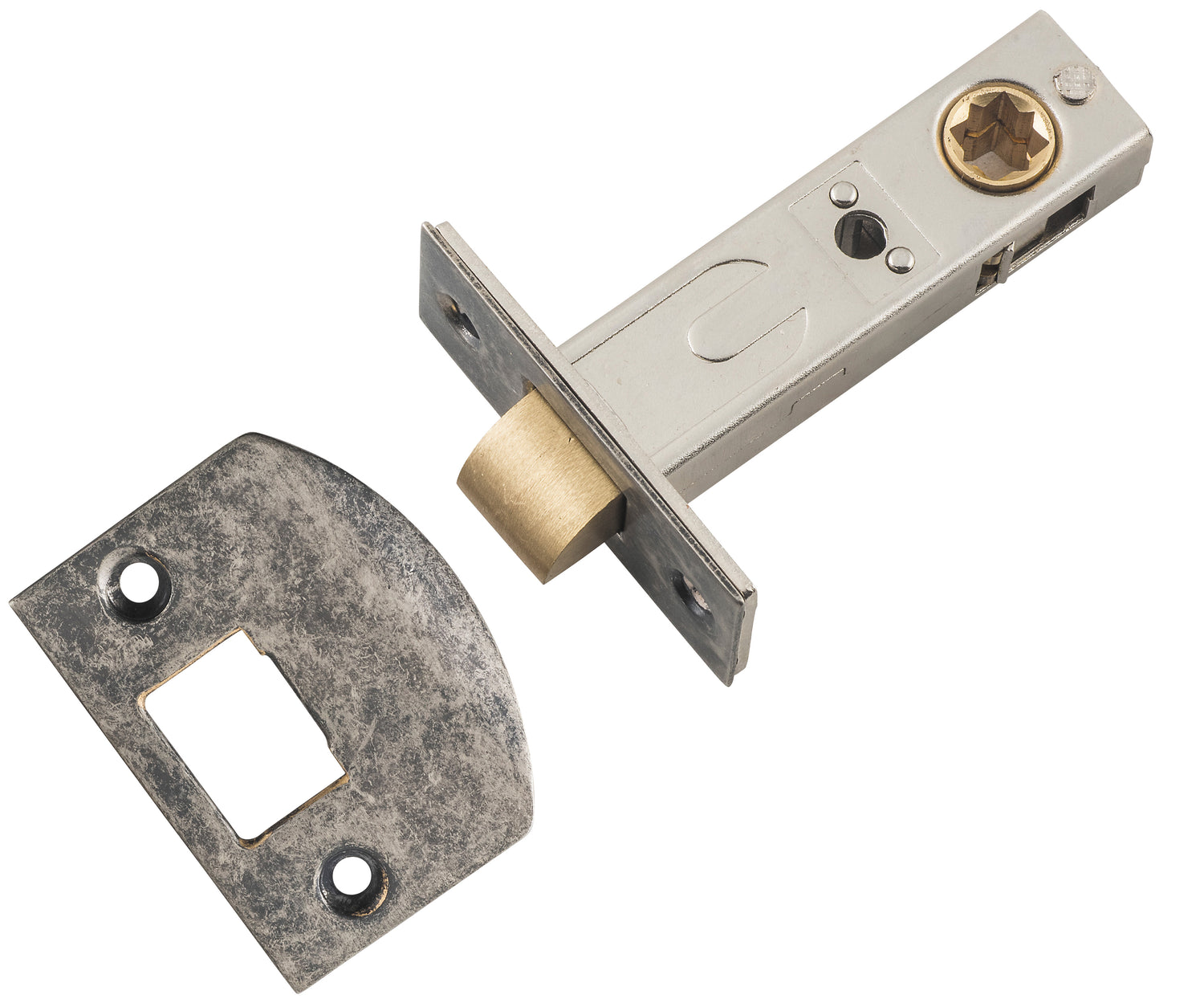

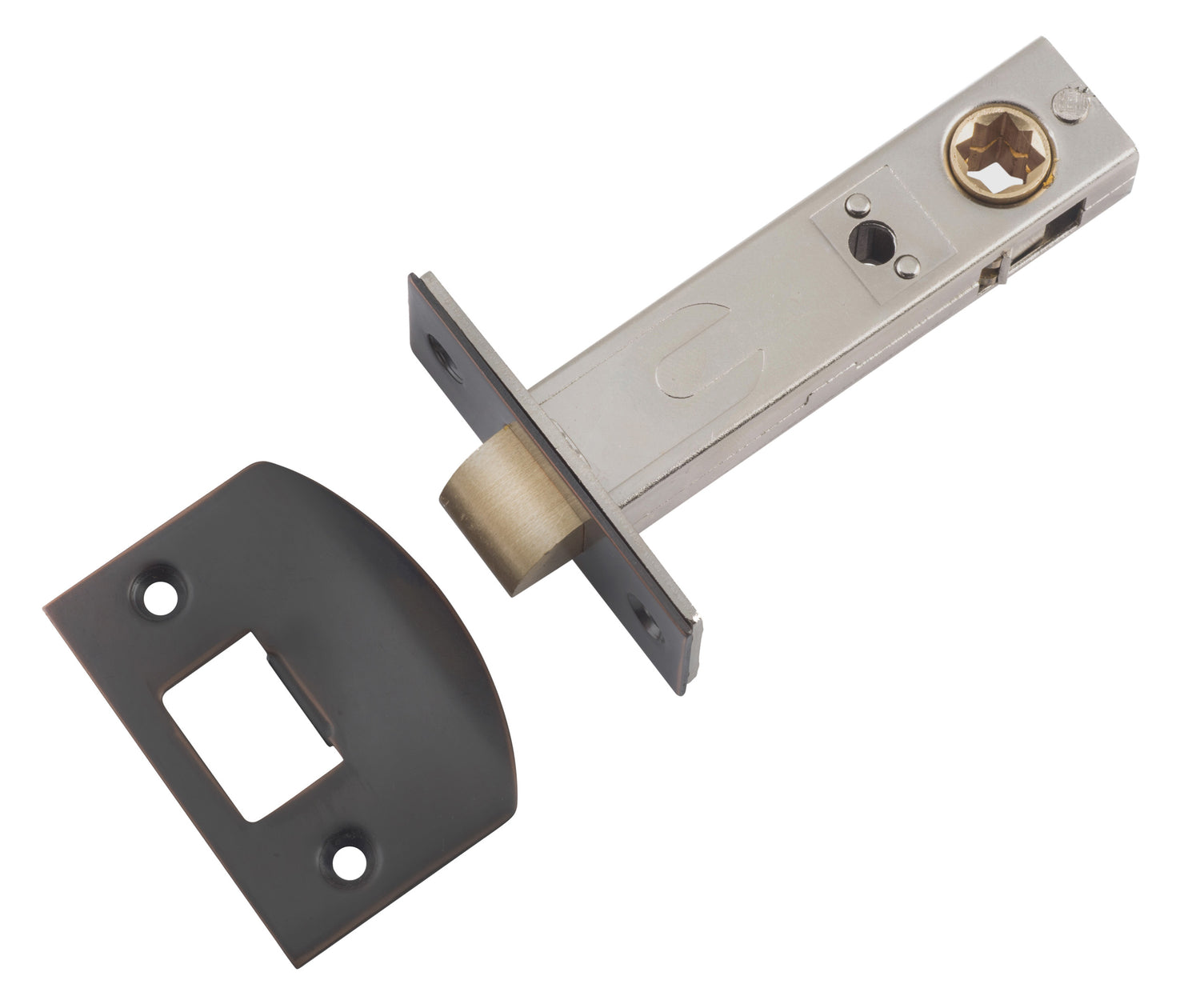

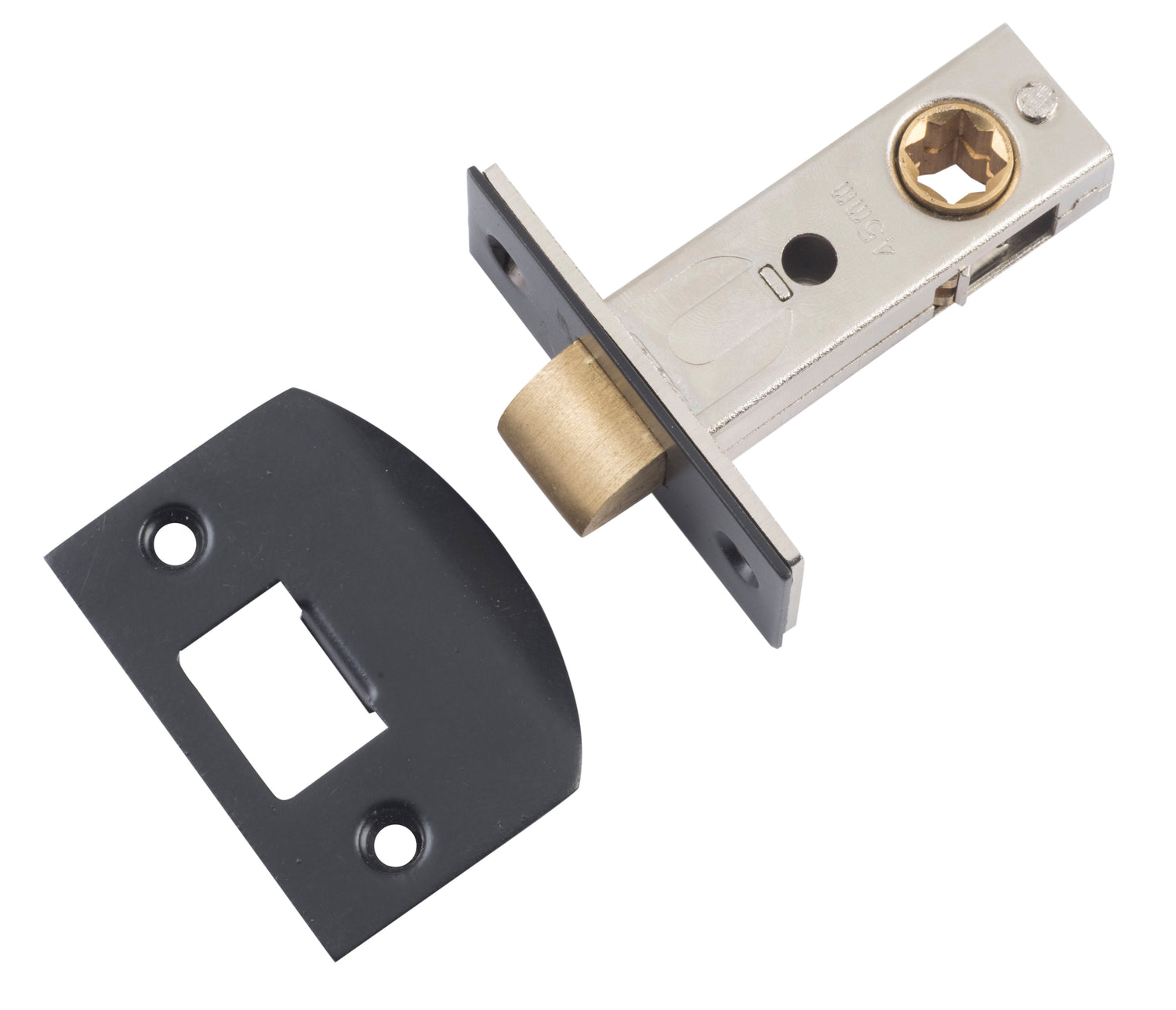

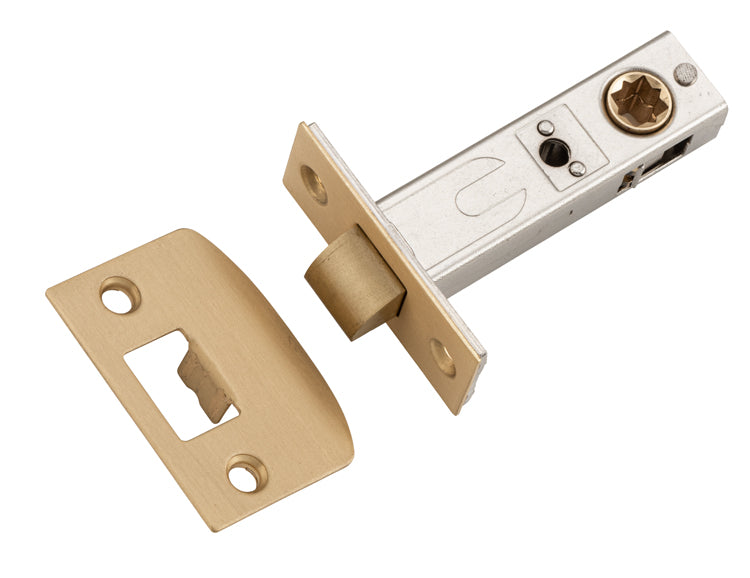

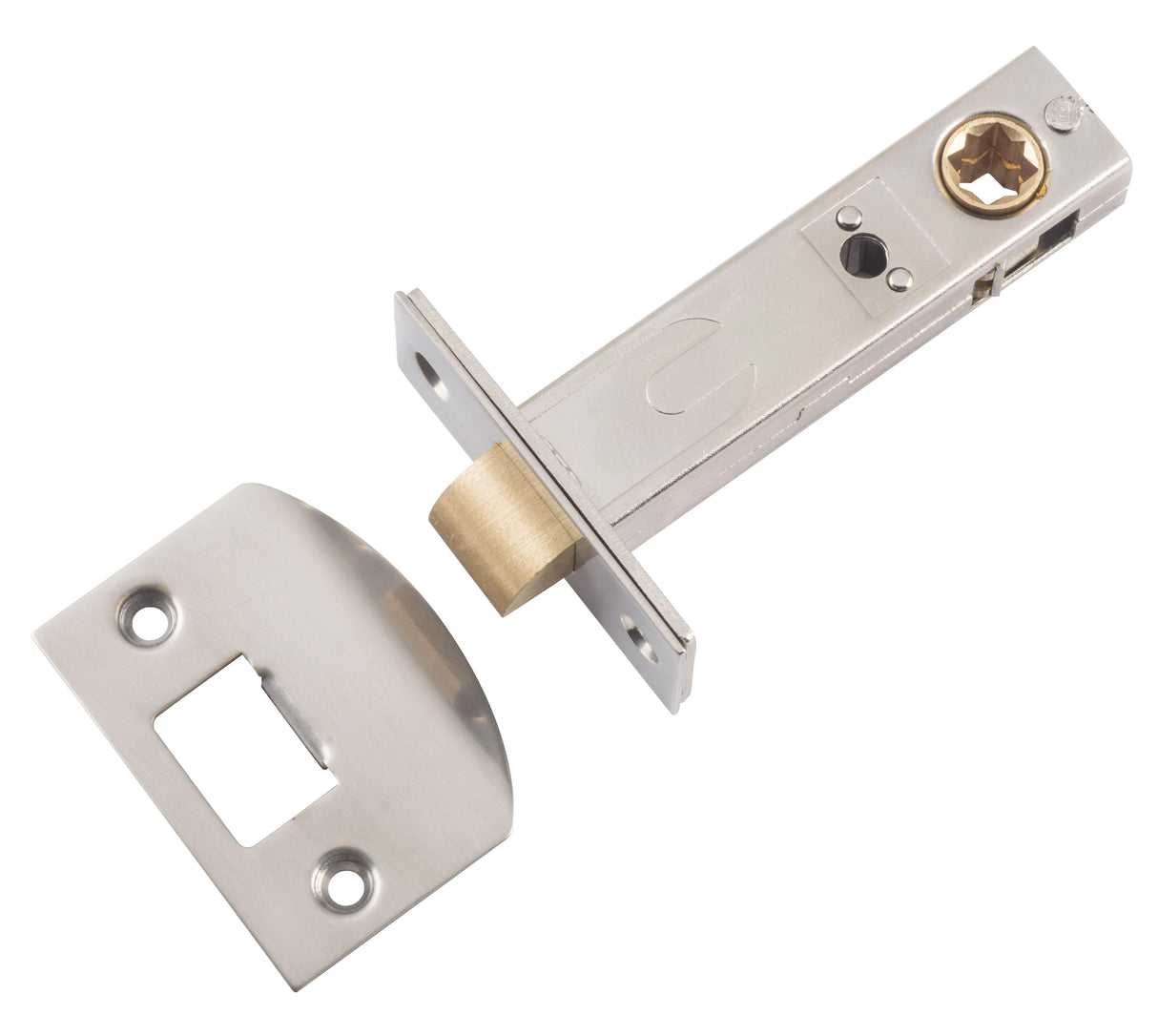

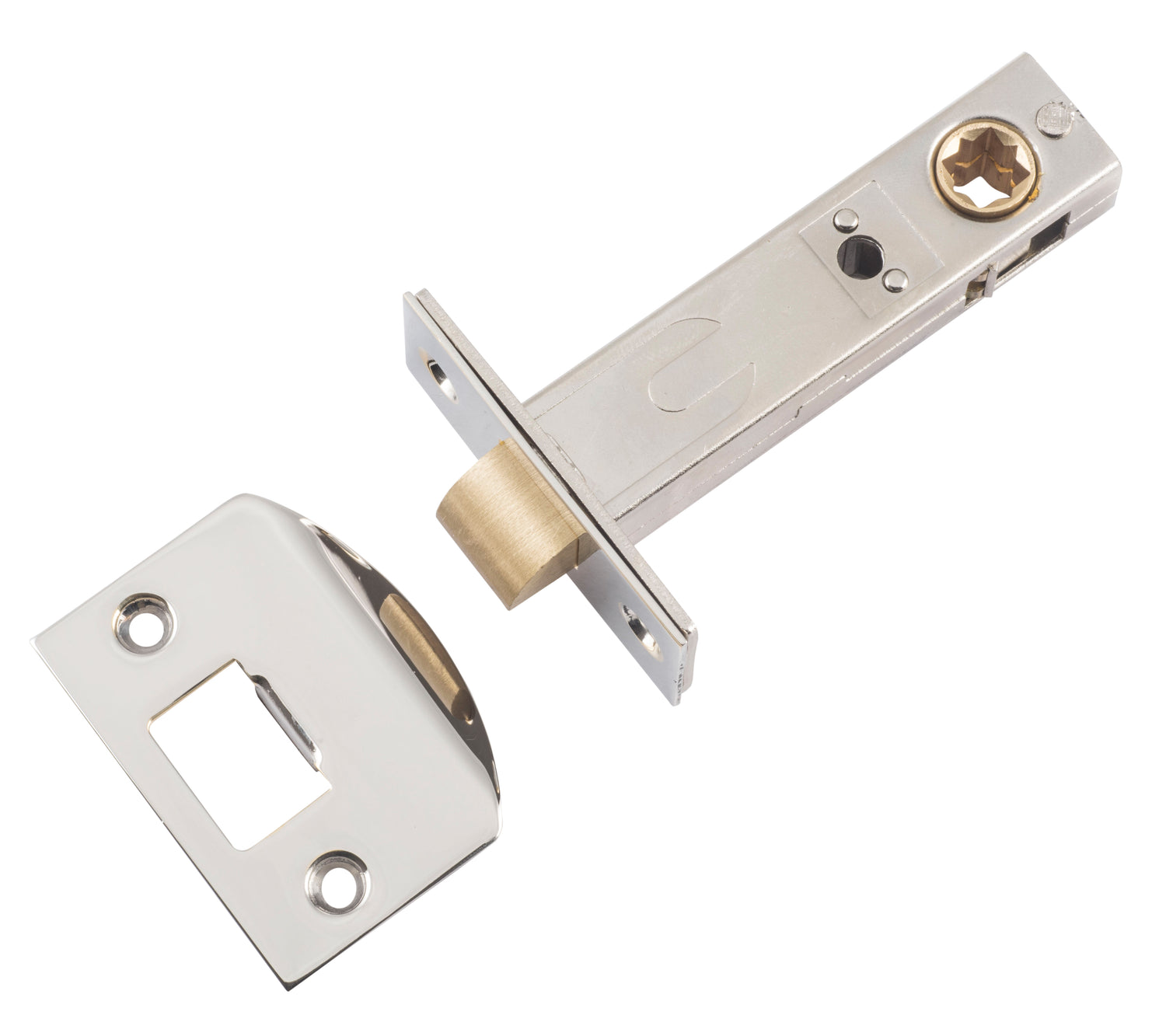

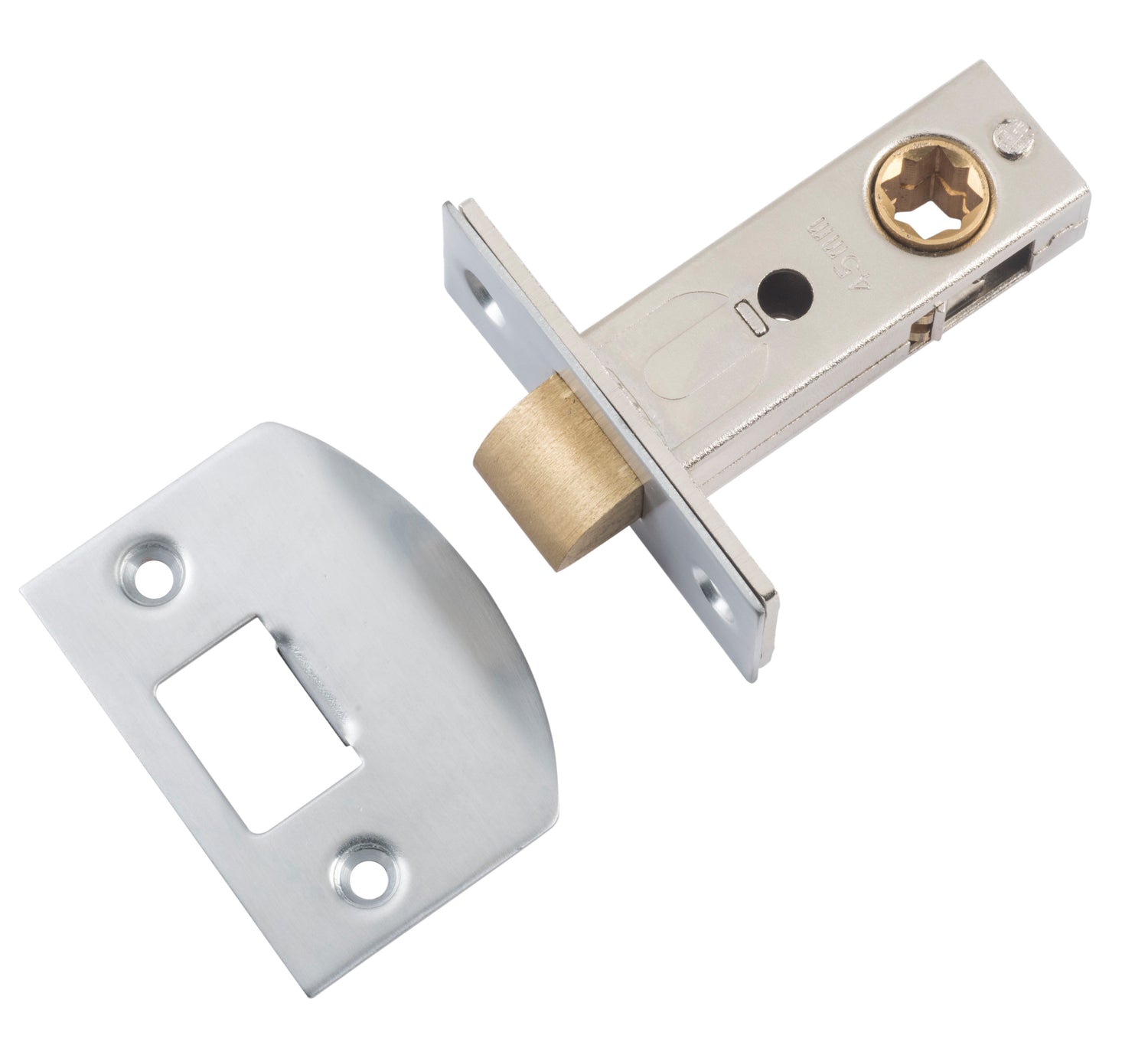

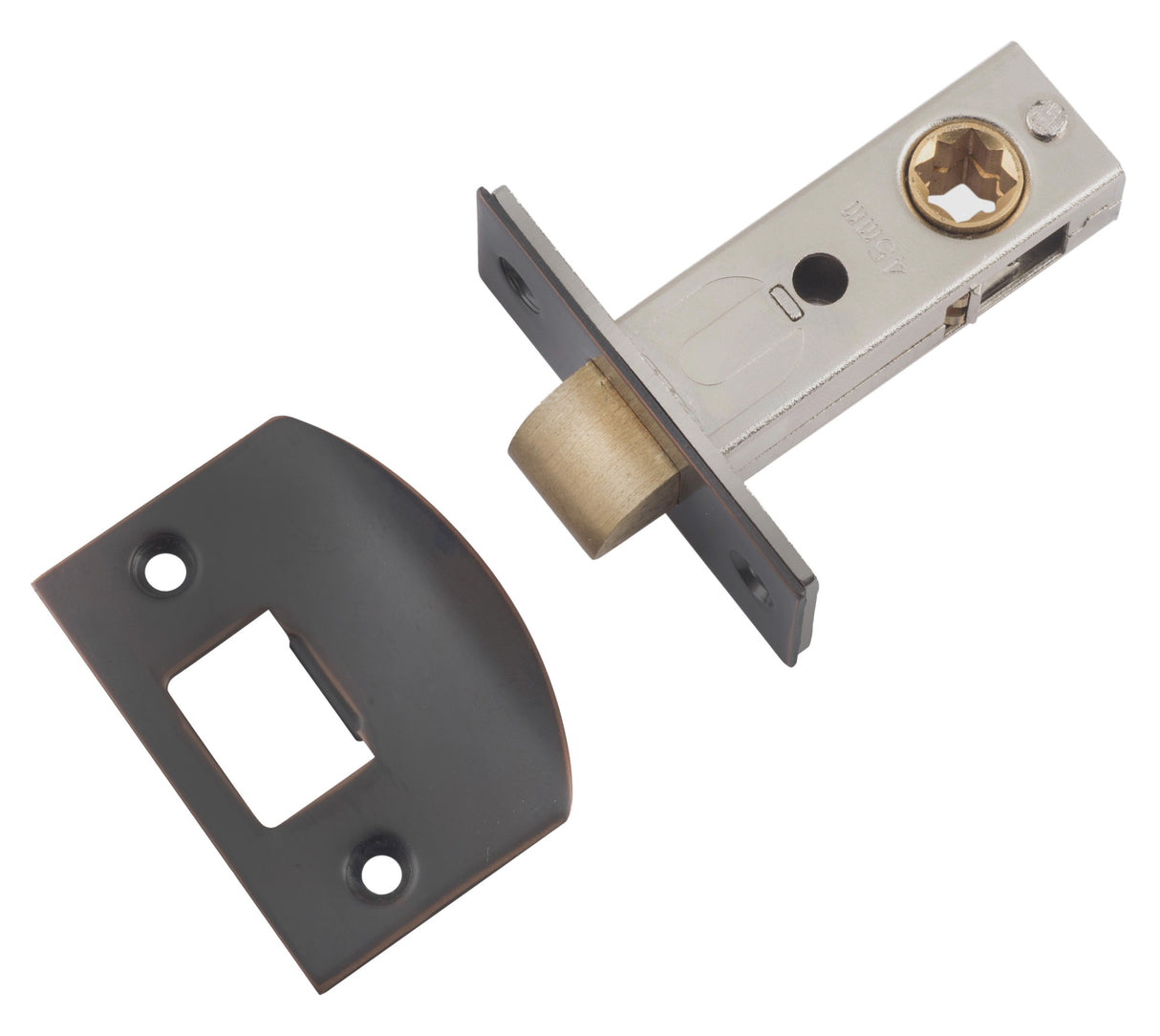

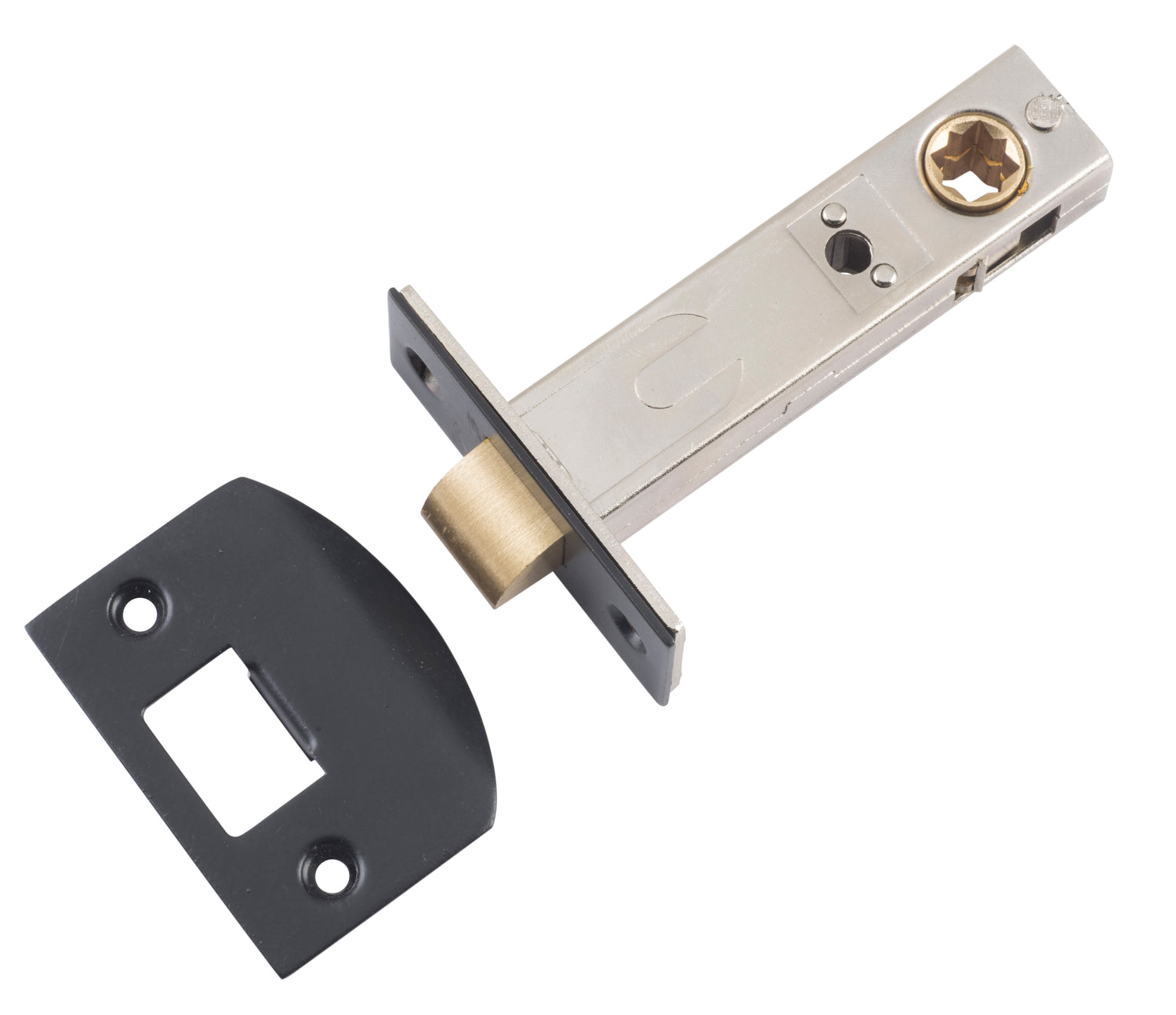

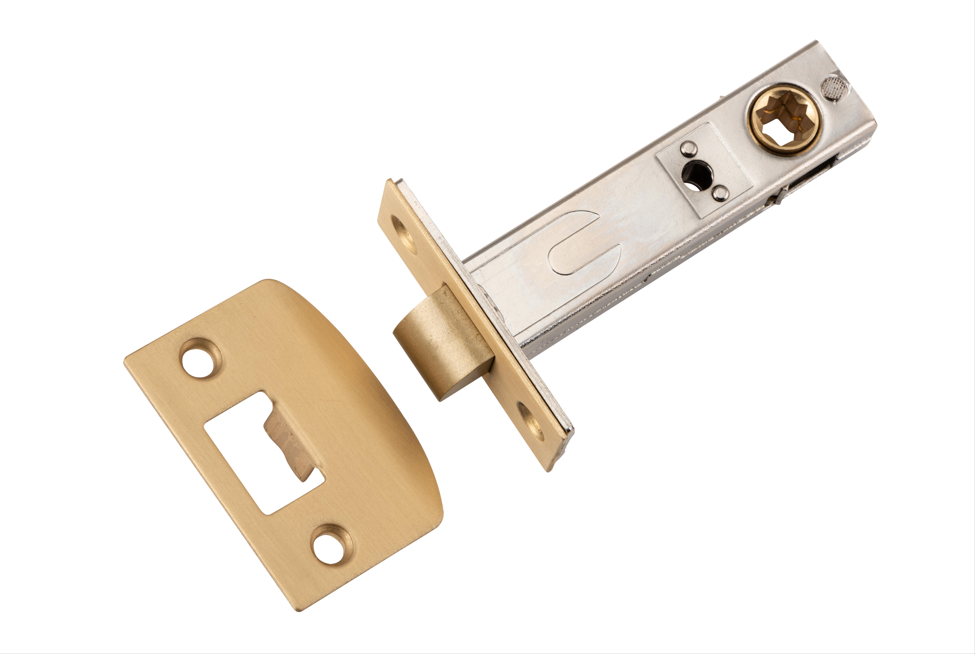

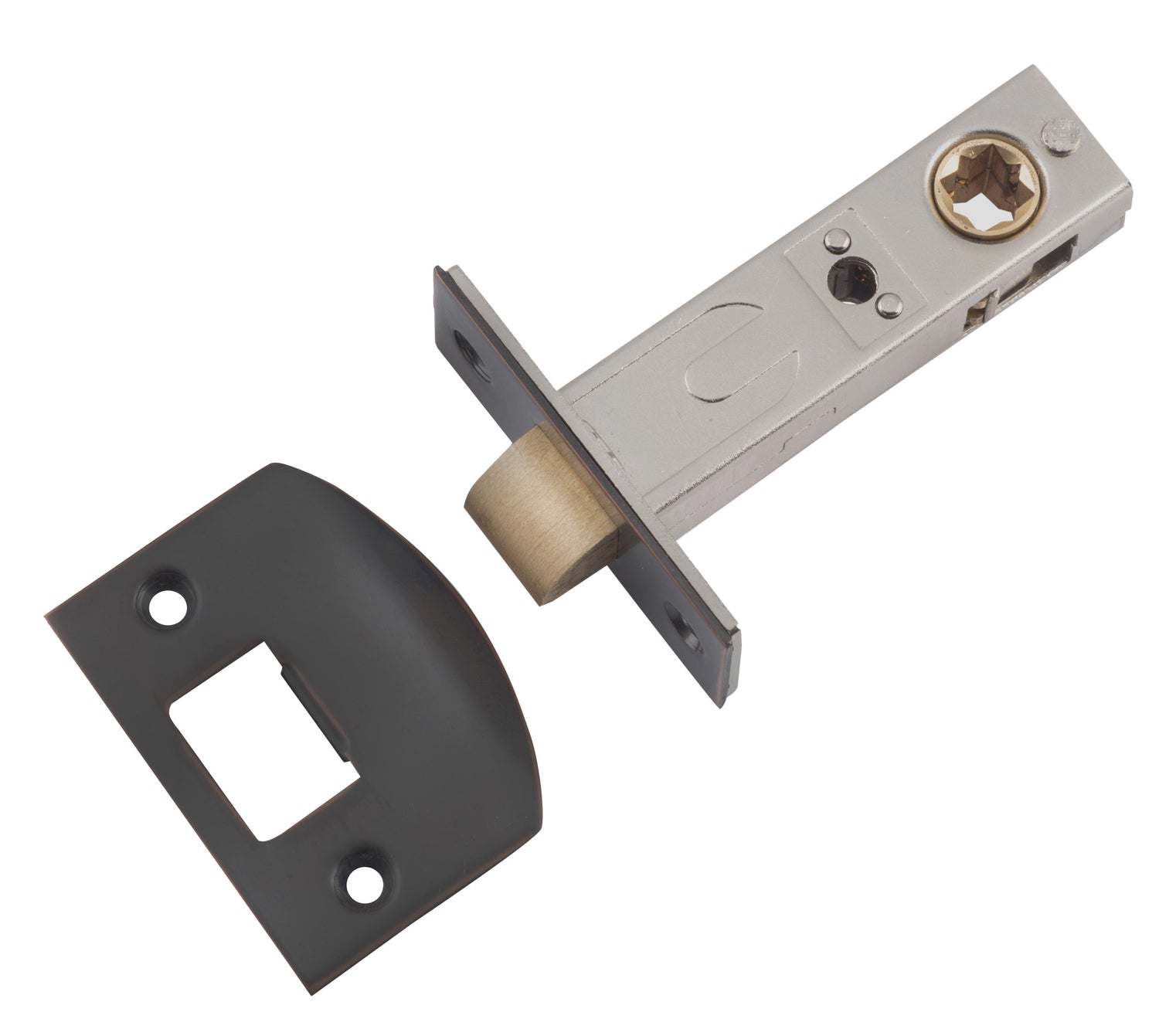

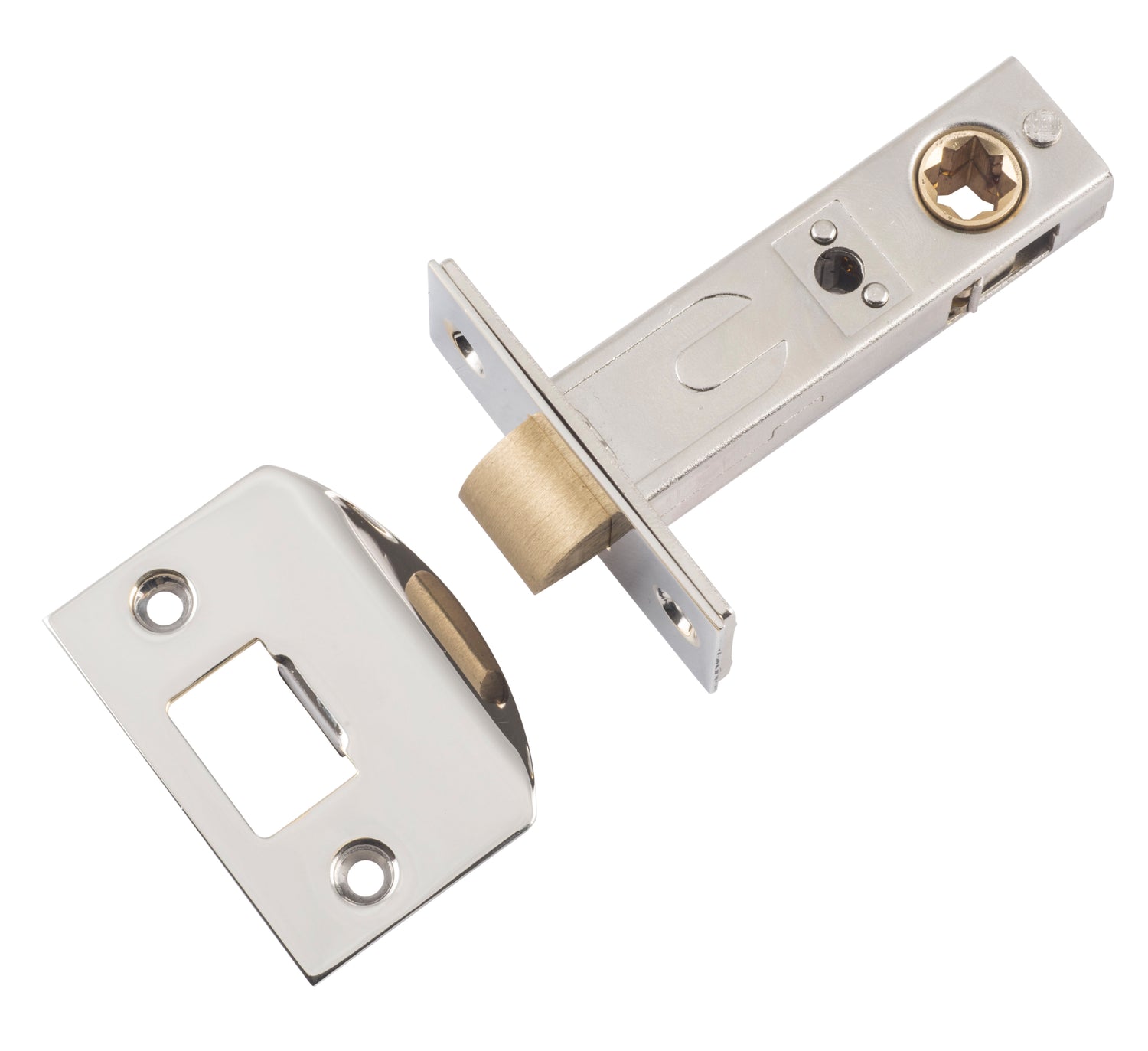

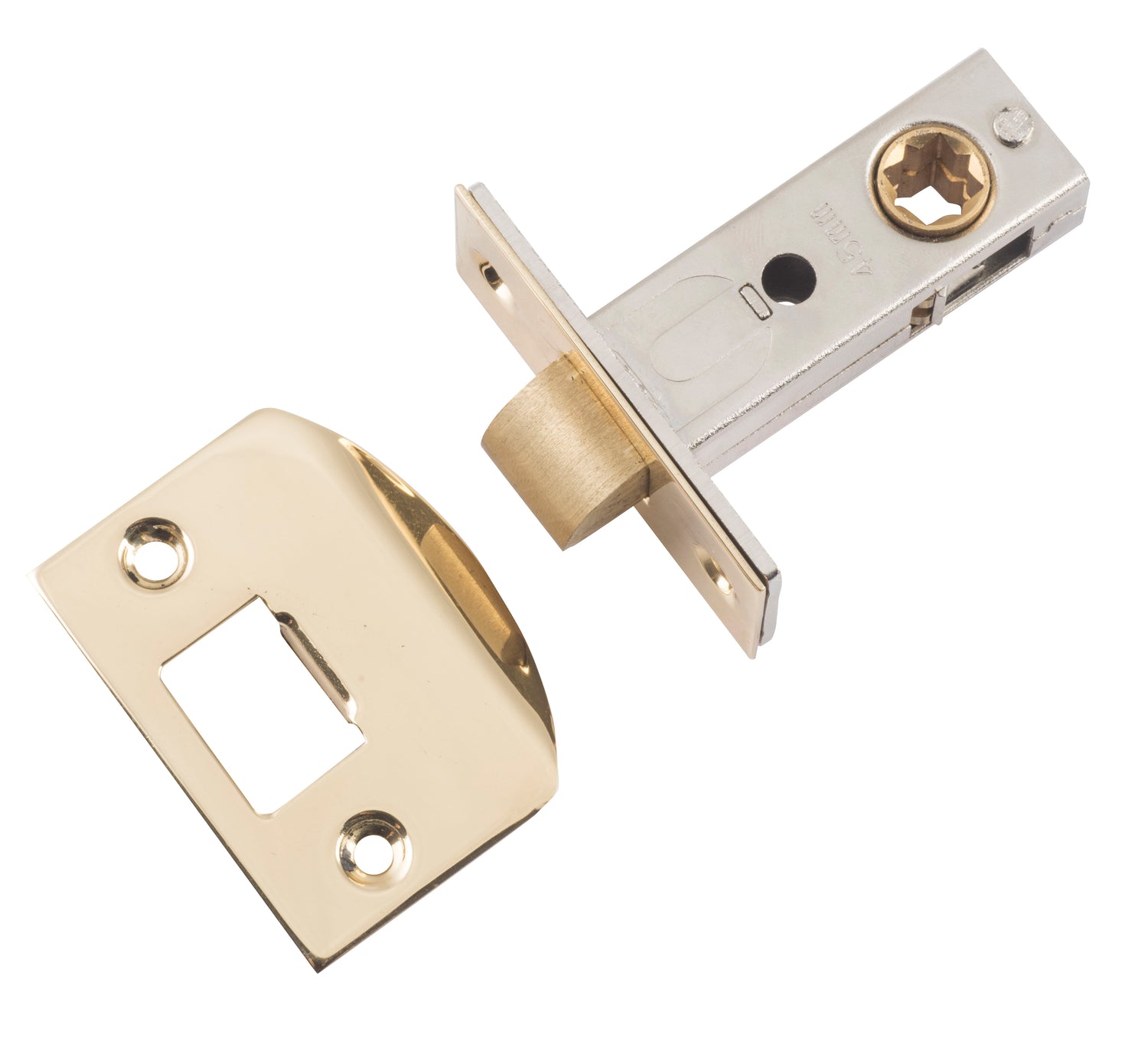

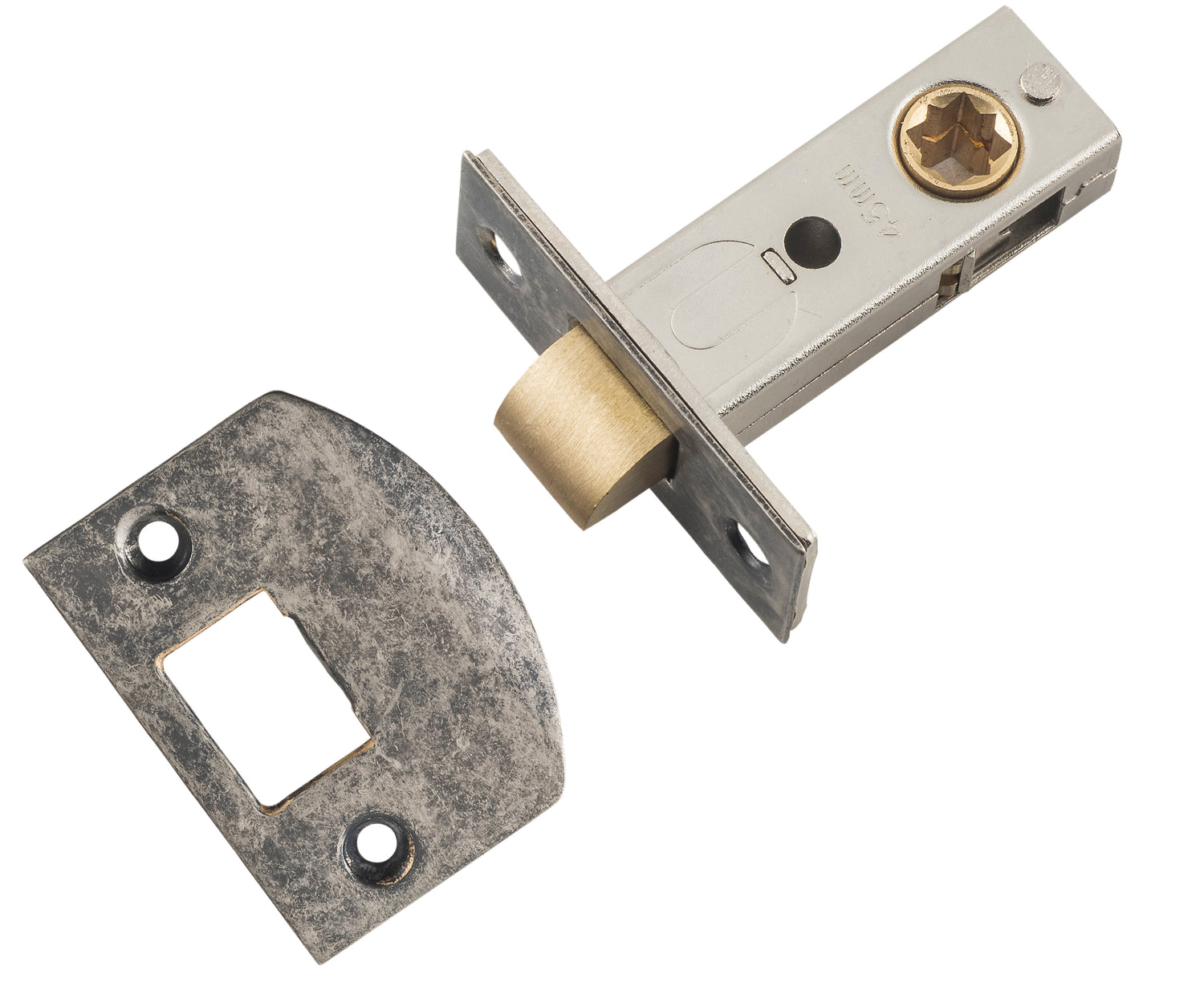

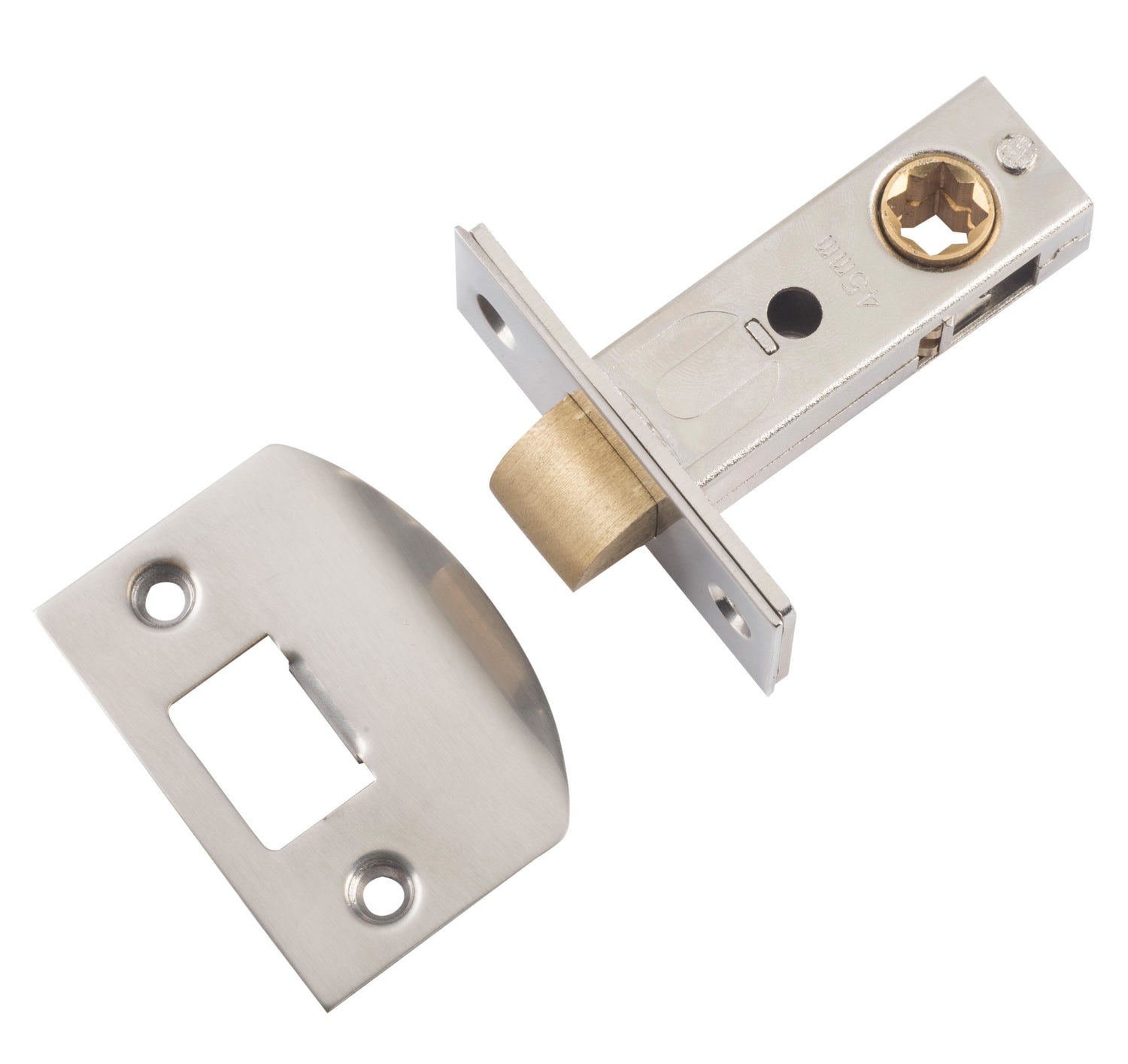

Tradco Split Cam Tubular Latch
Description
Description

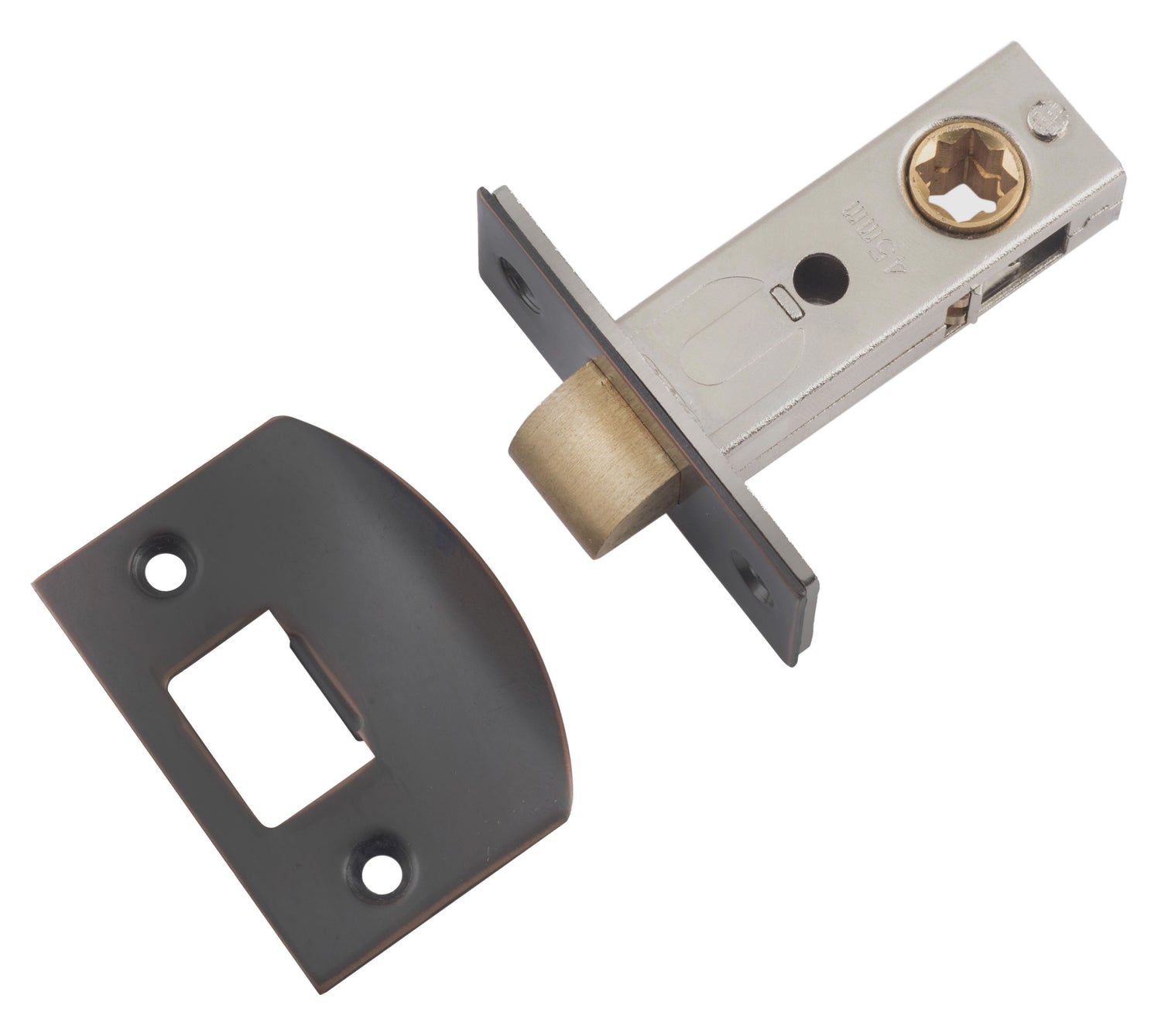

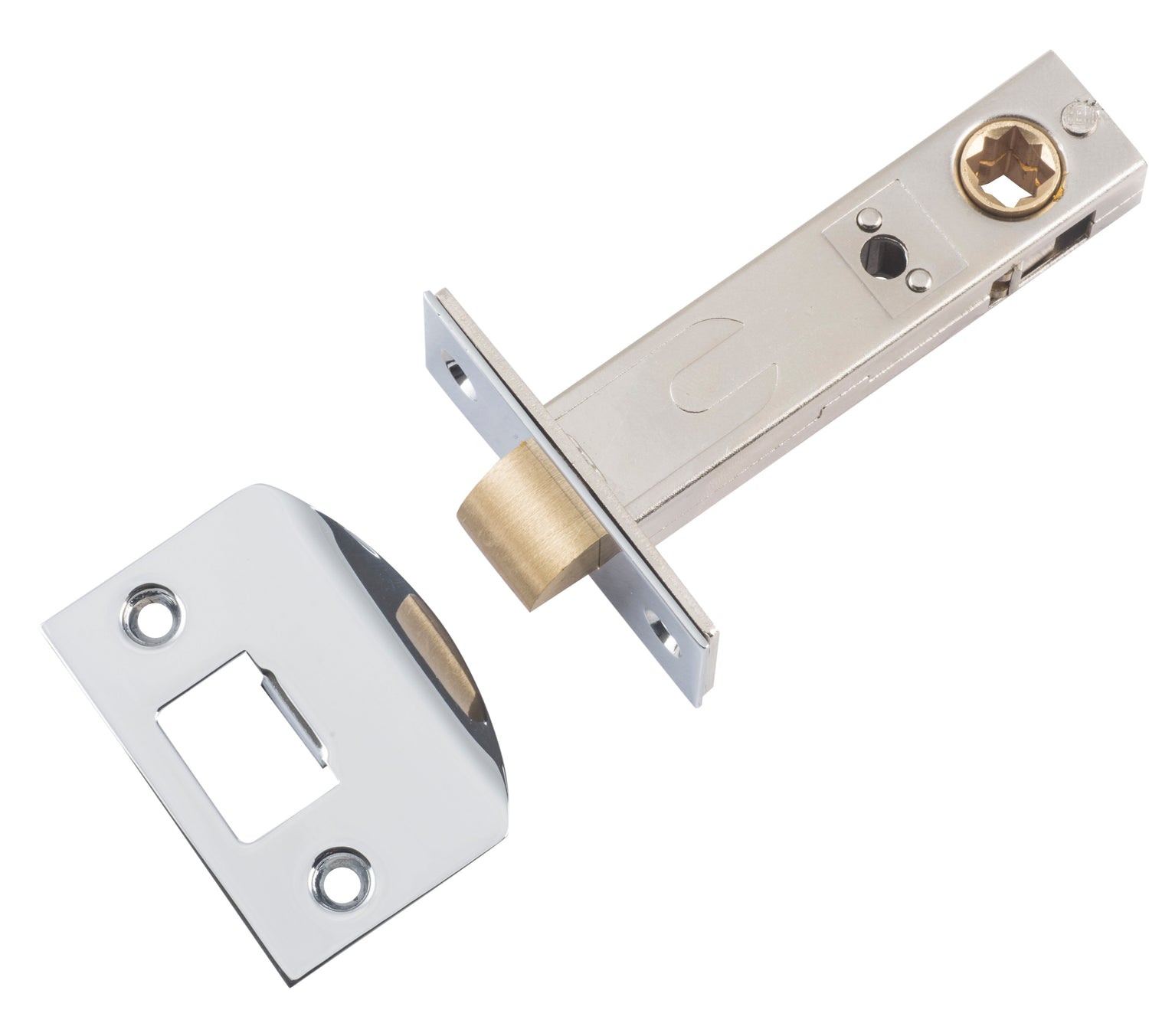

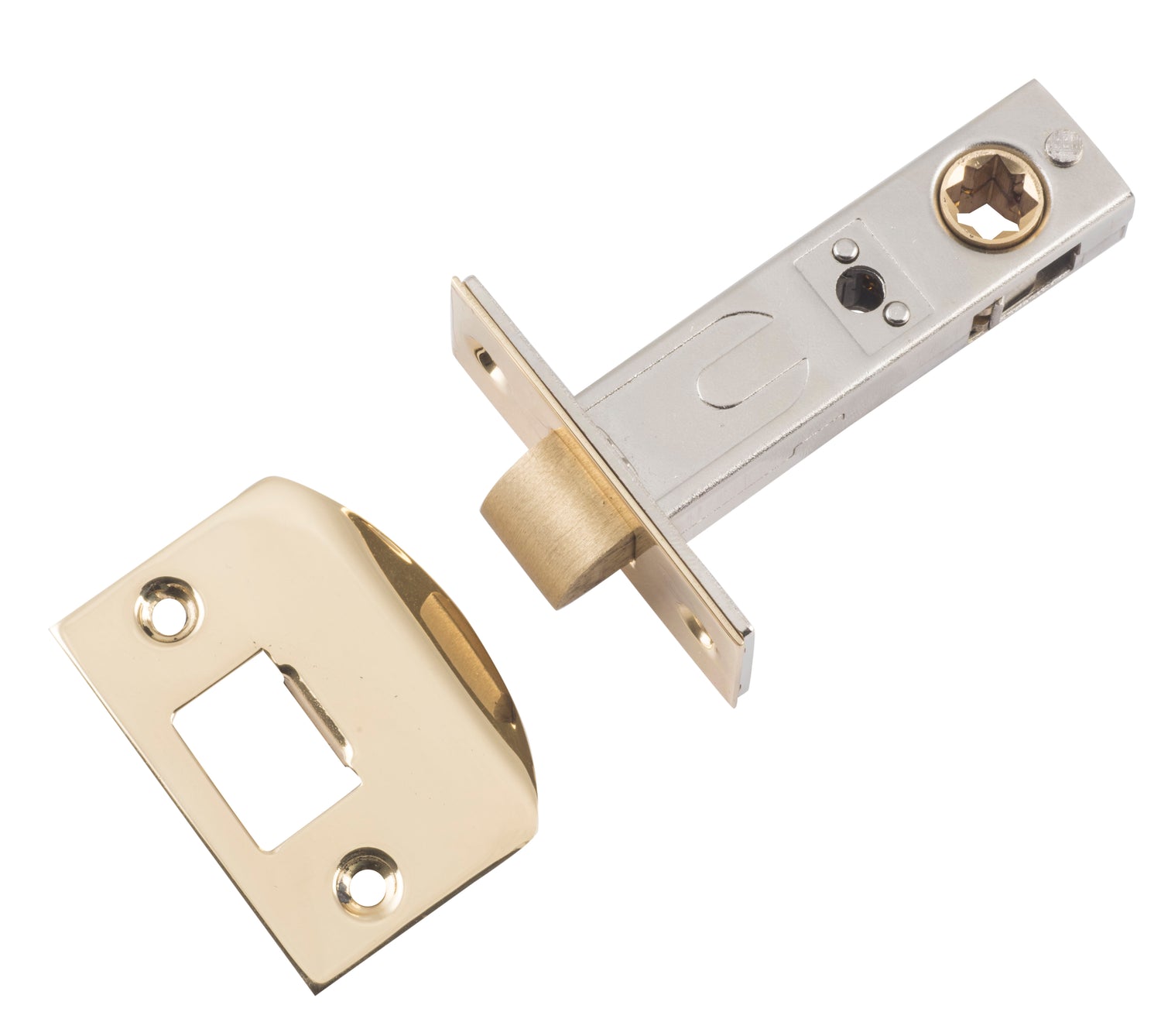

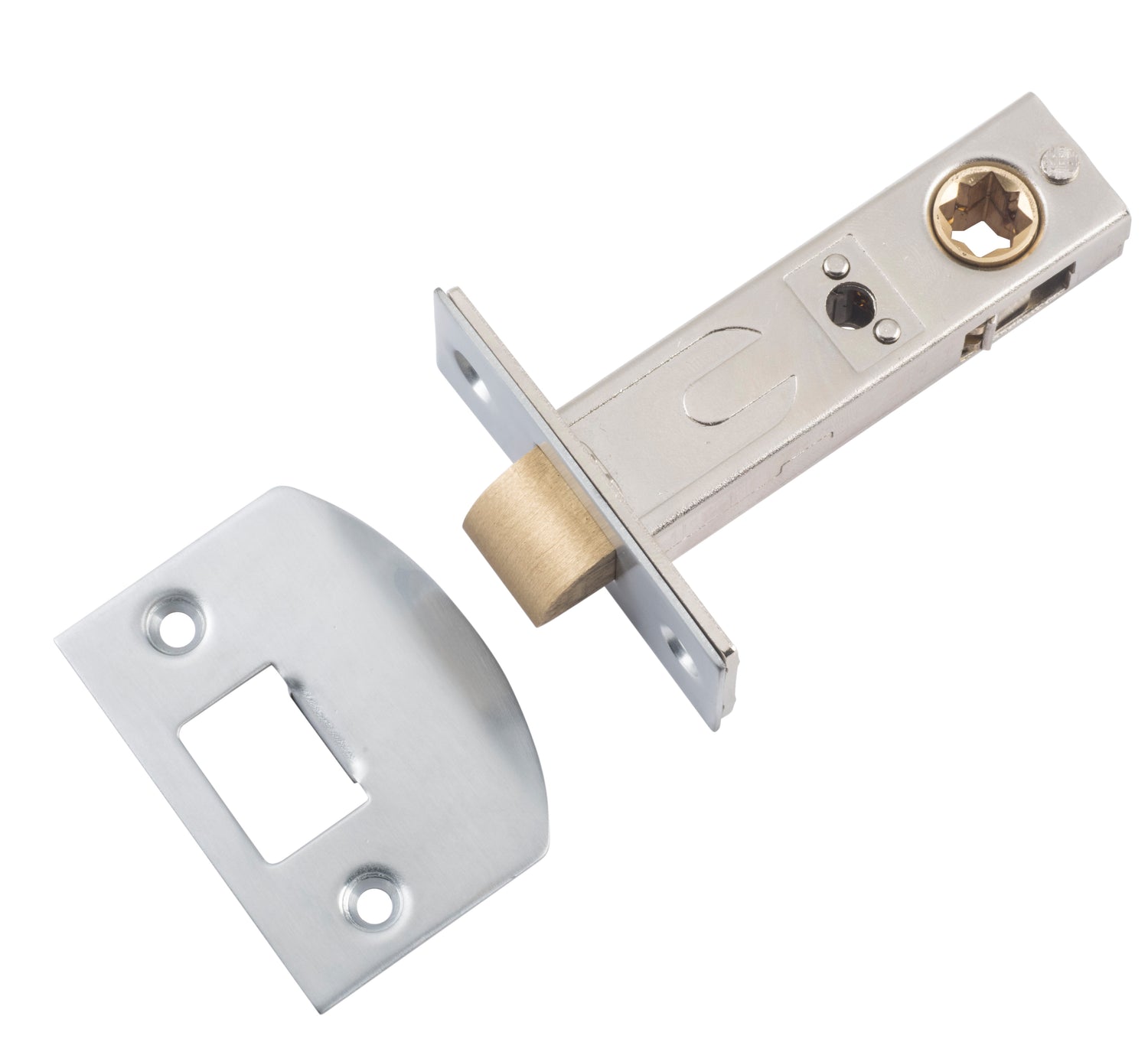

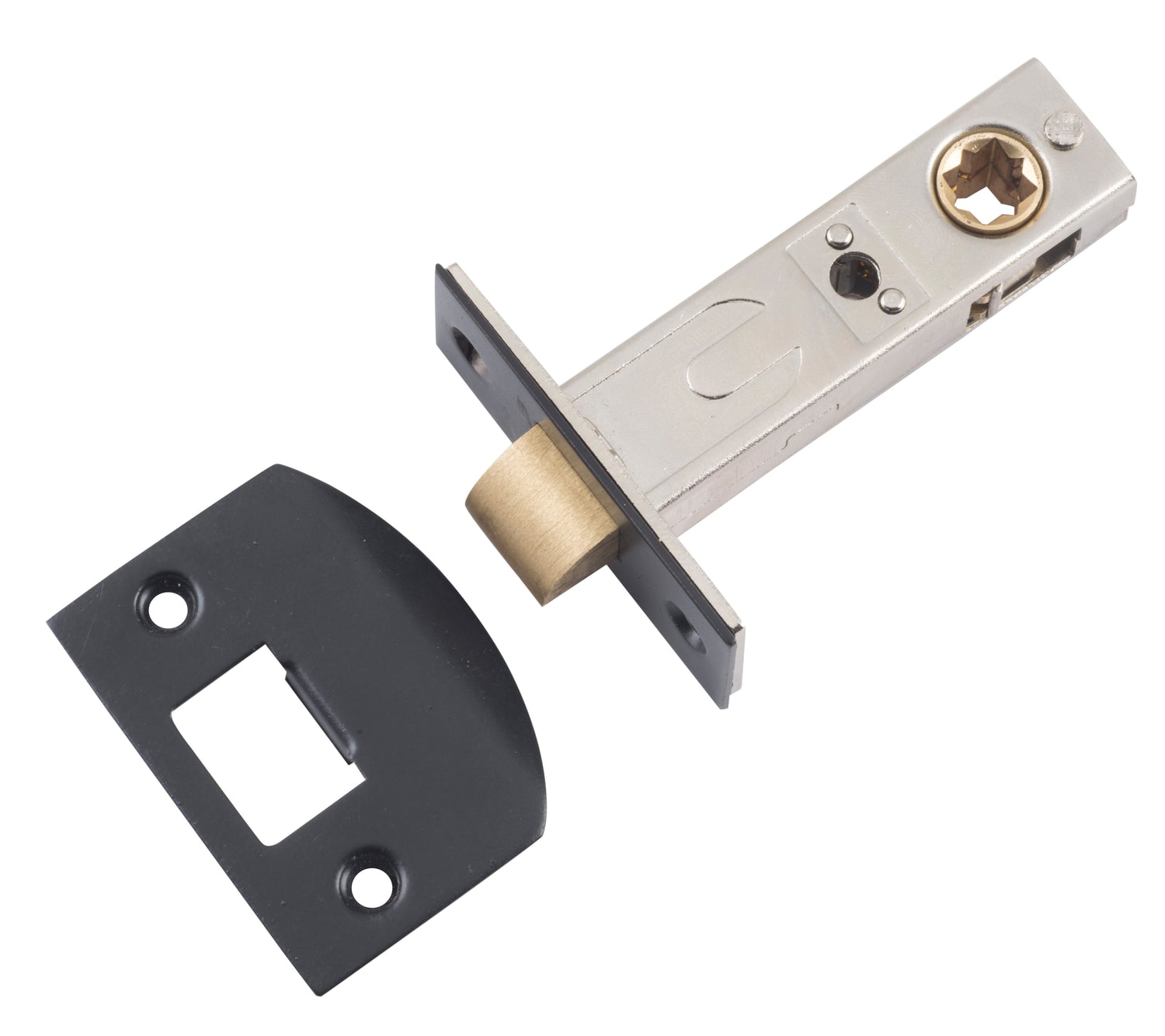

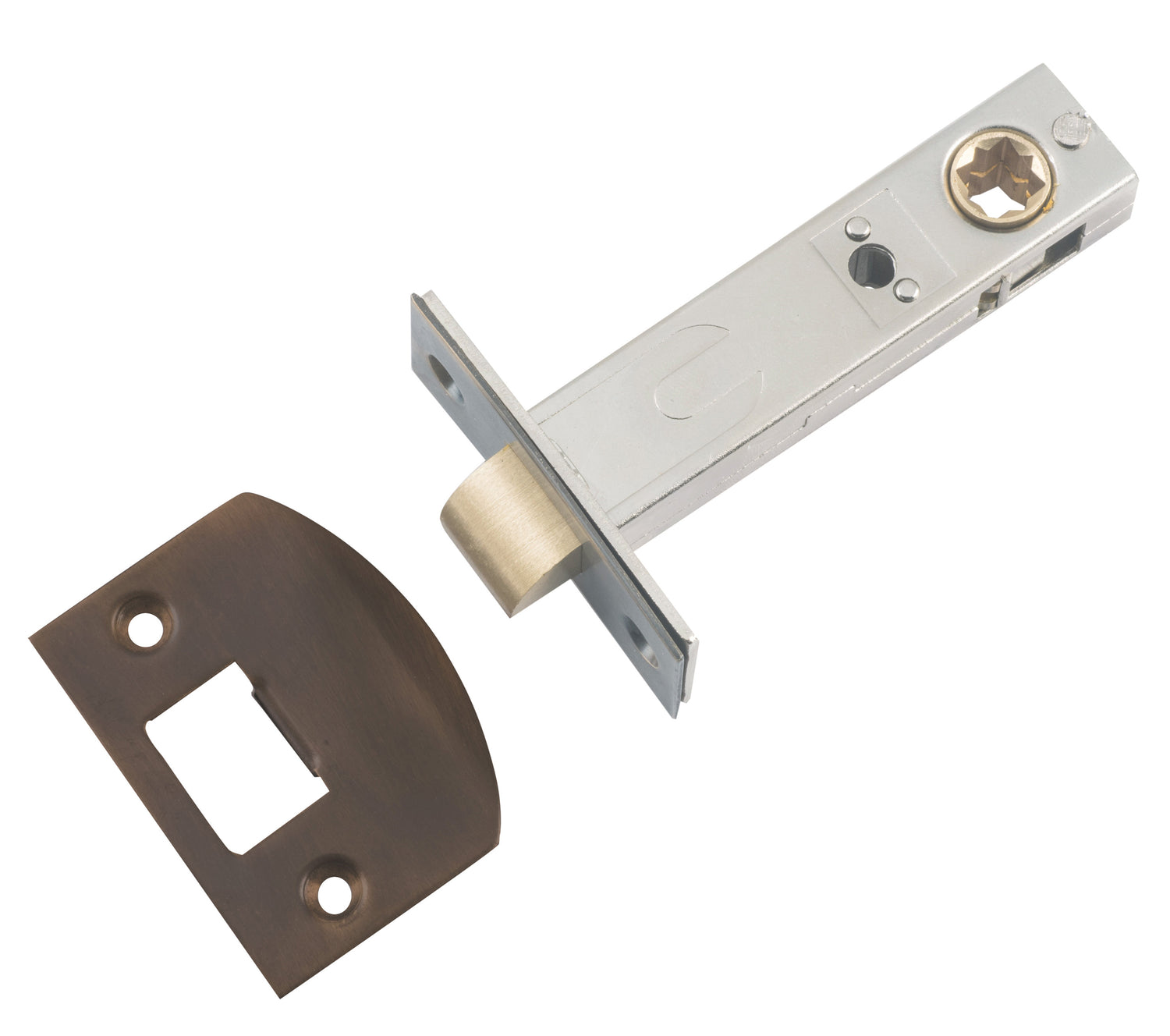

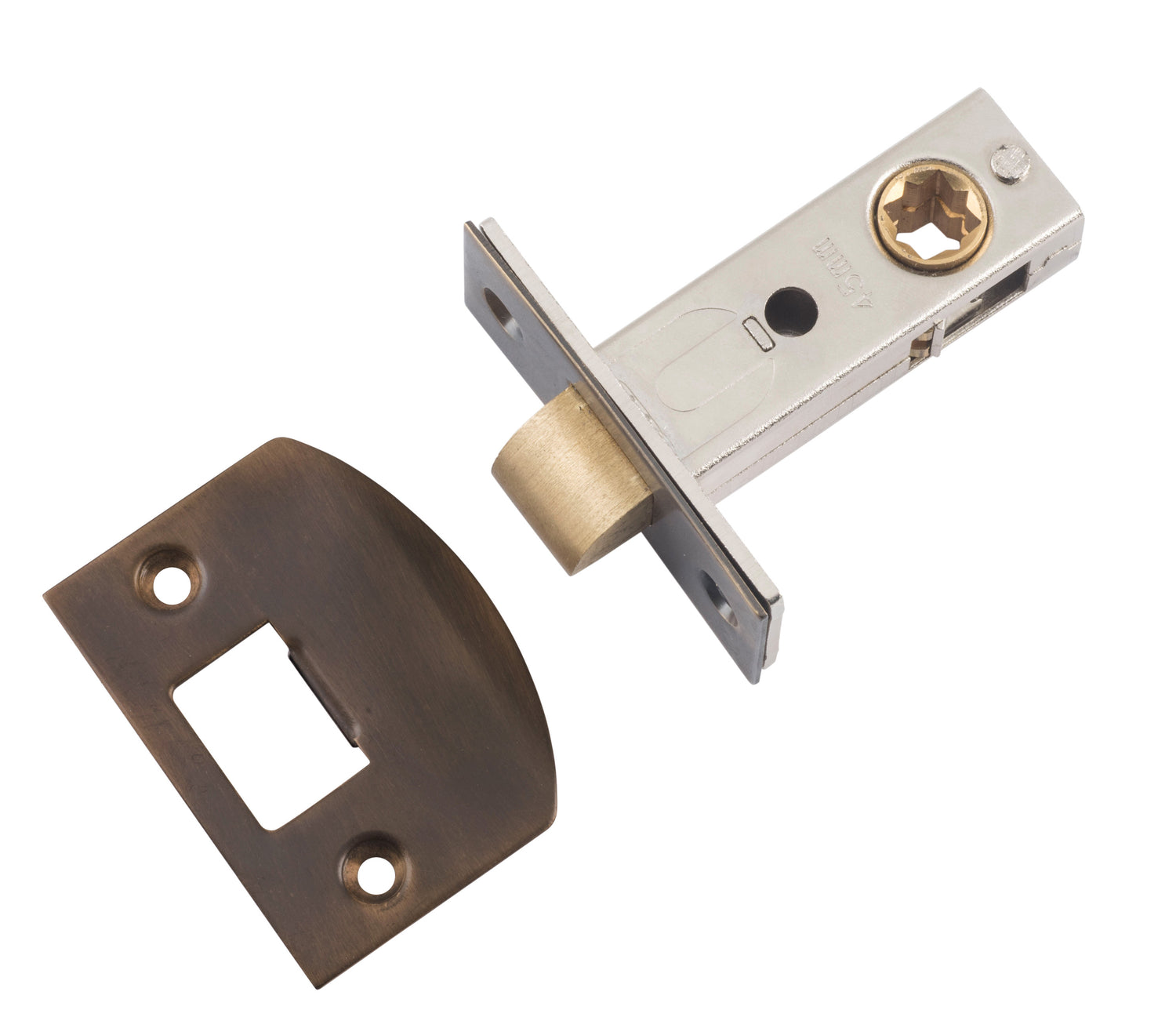

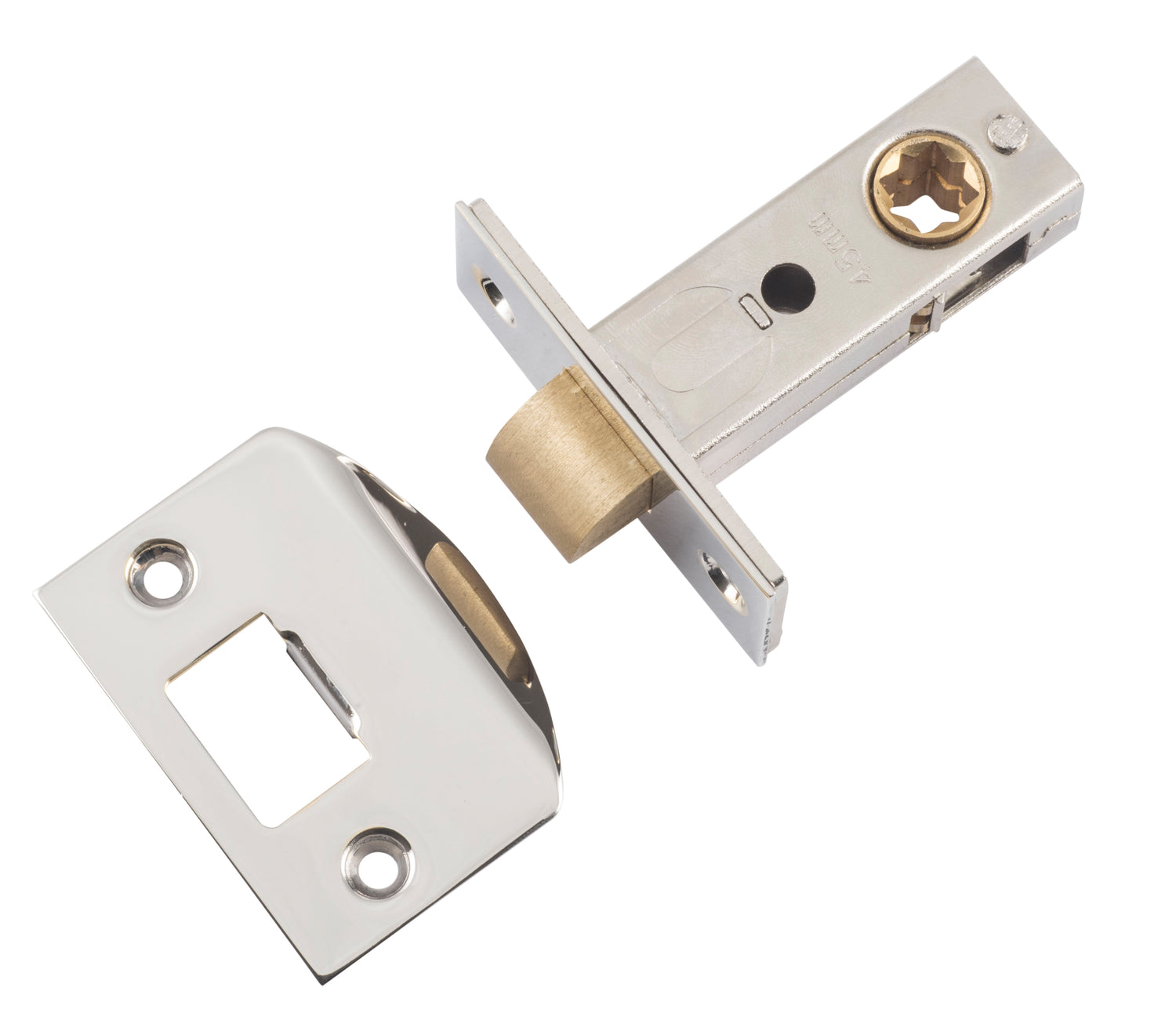

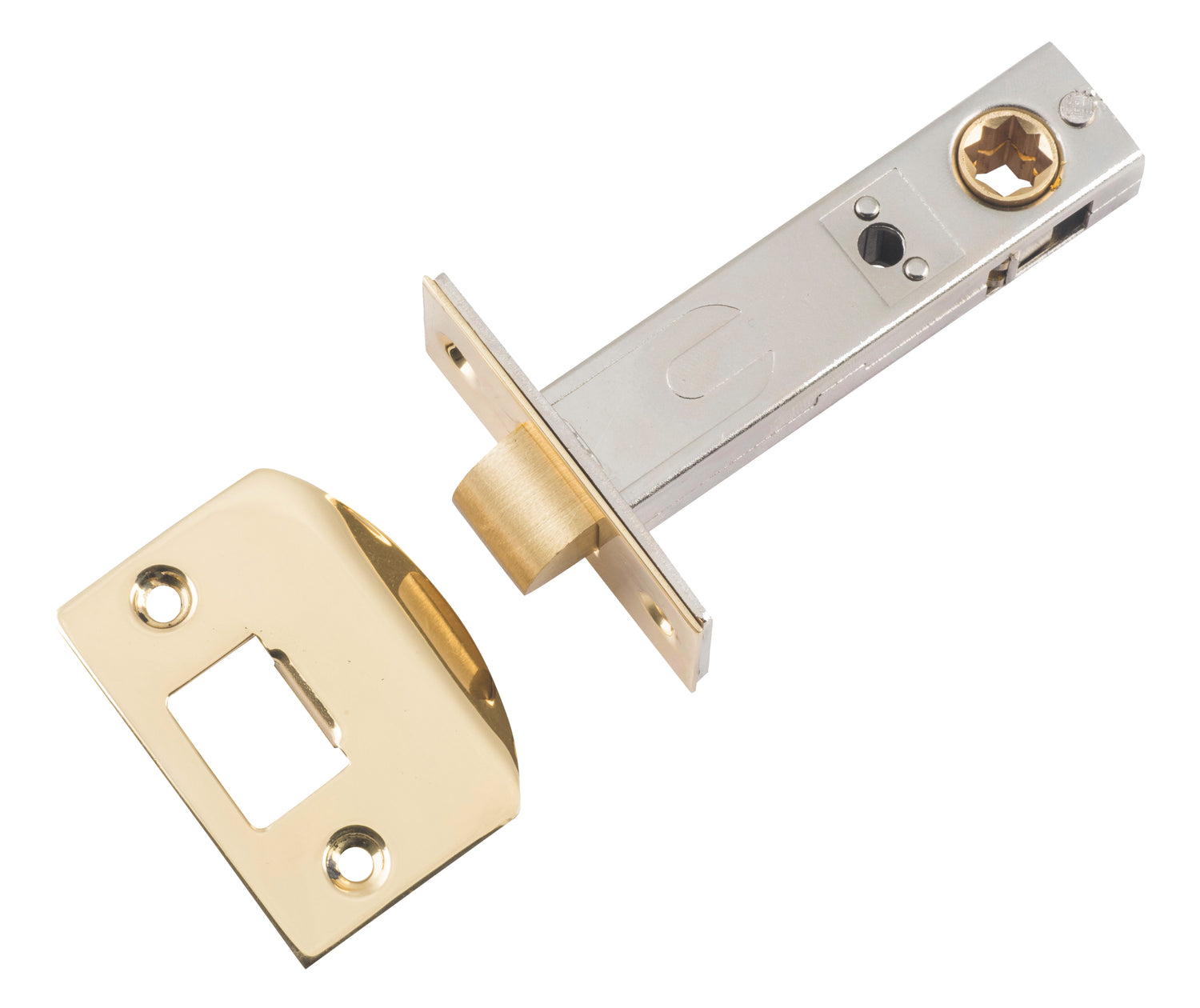

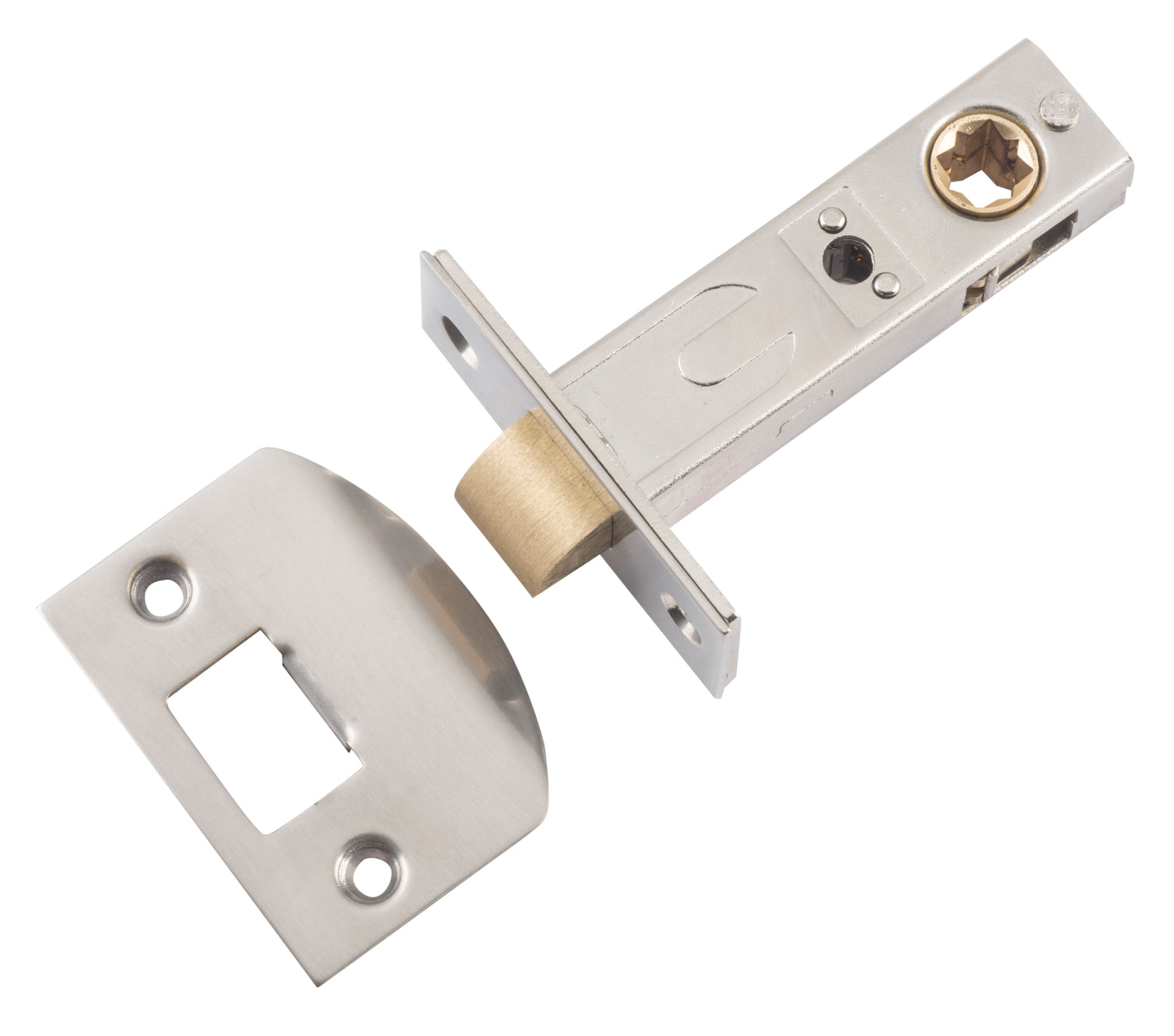

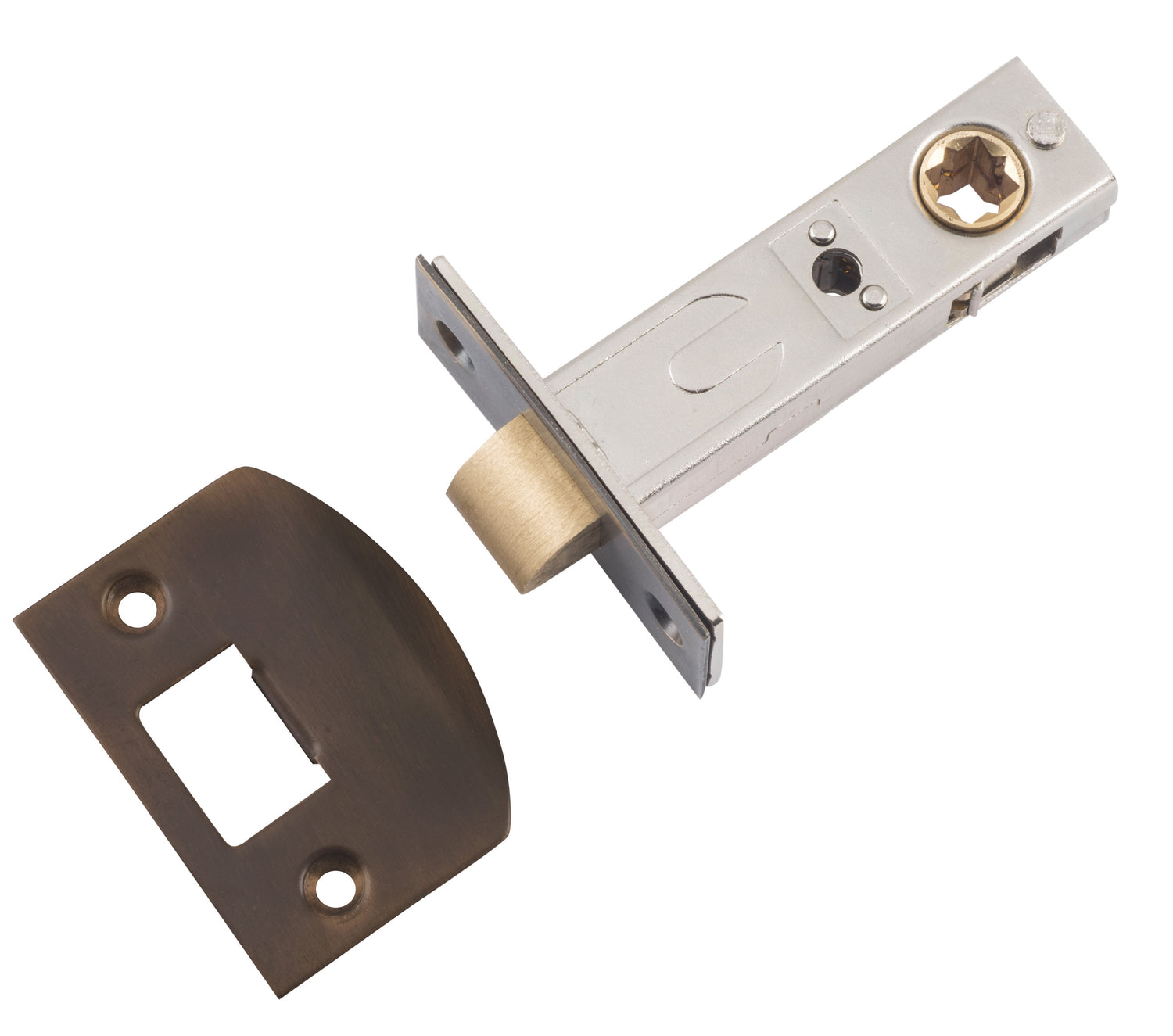

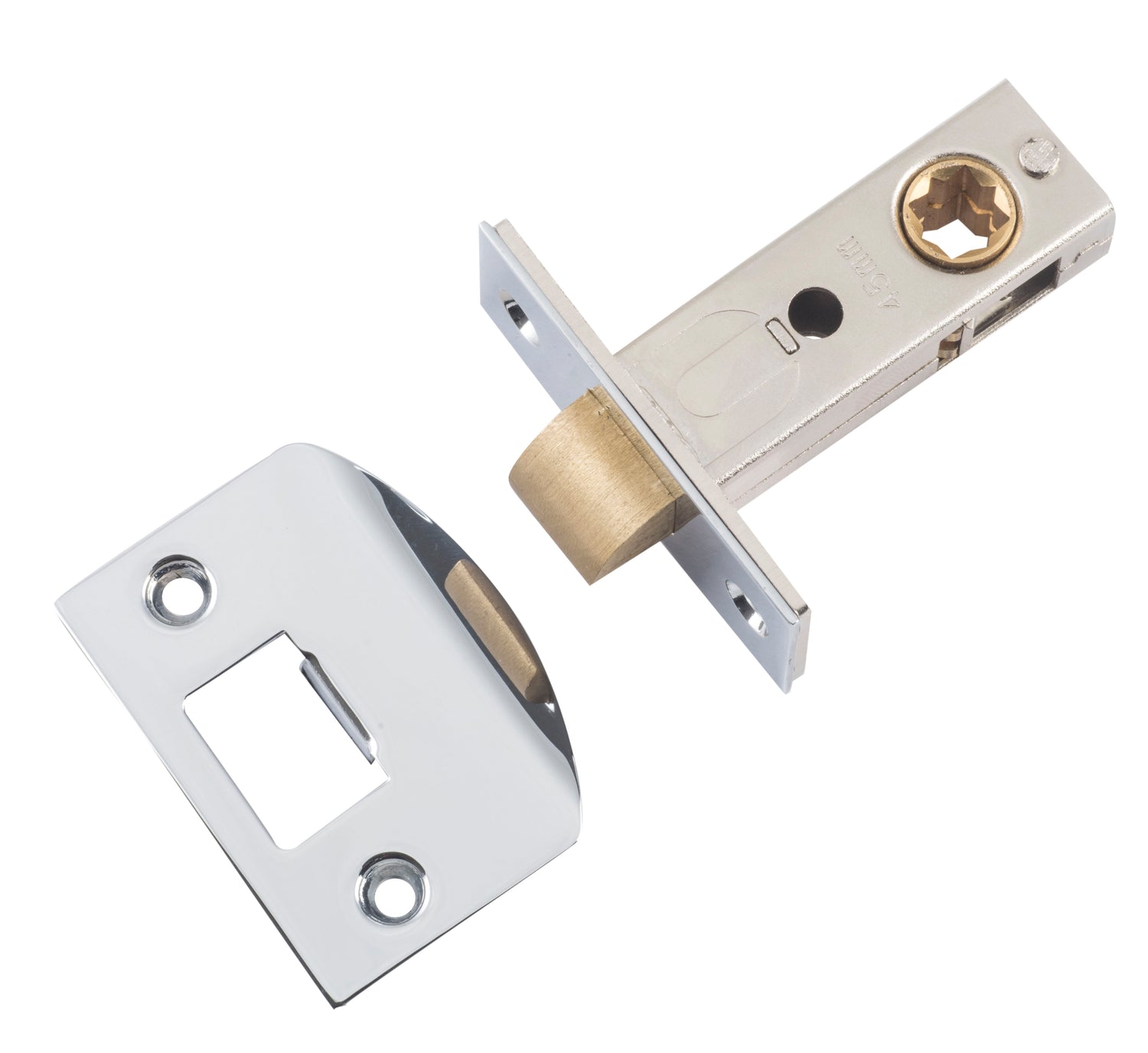

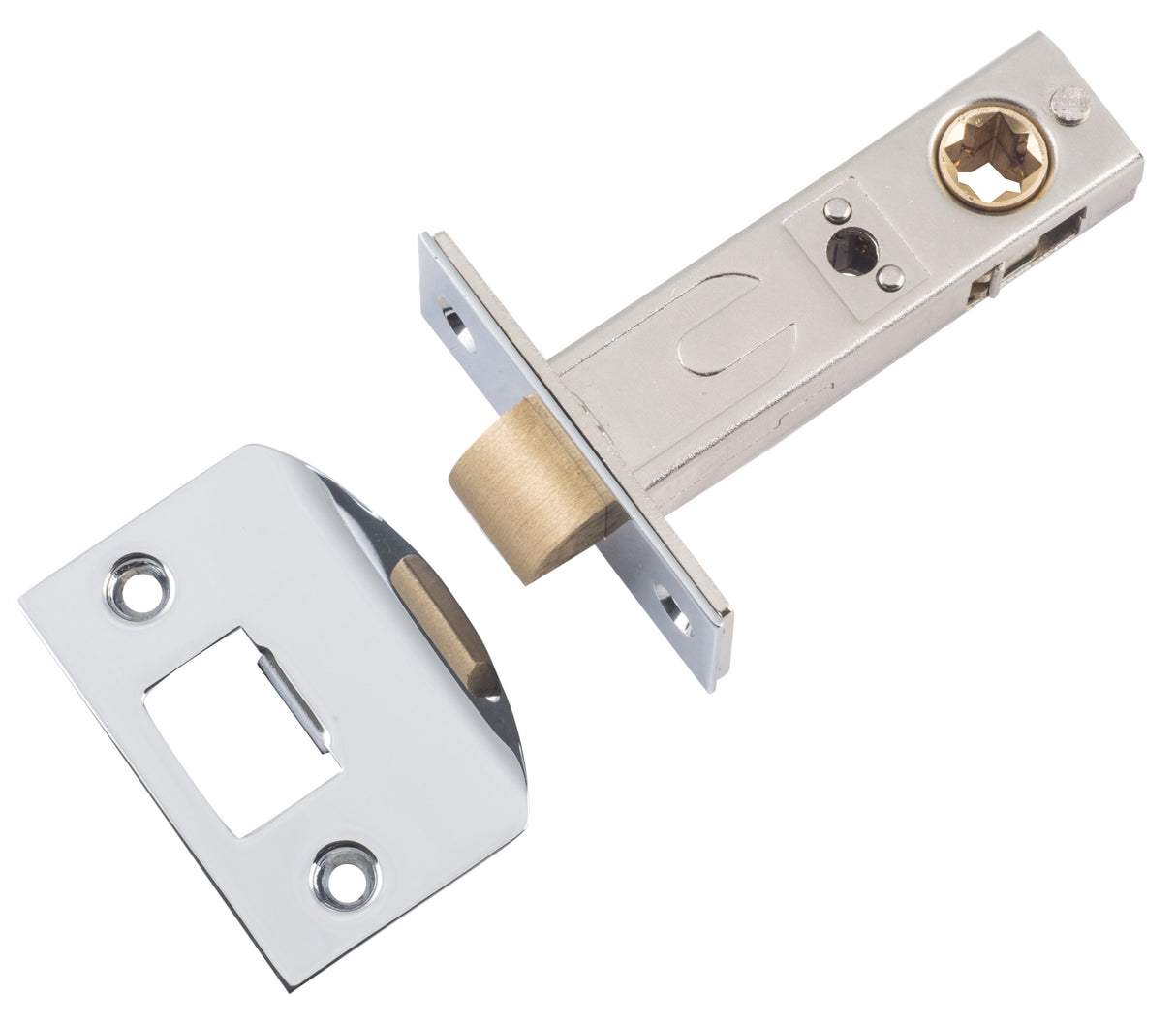

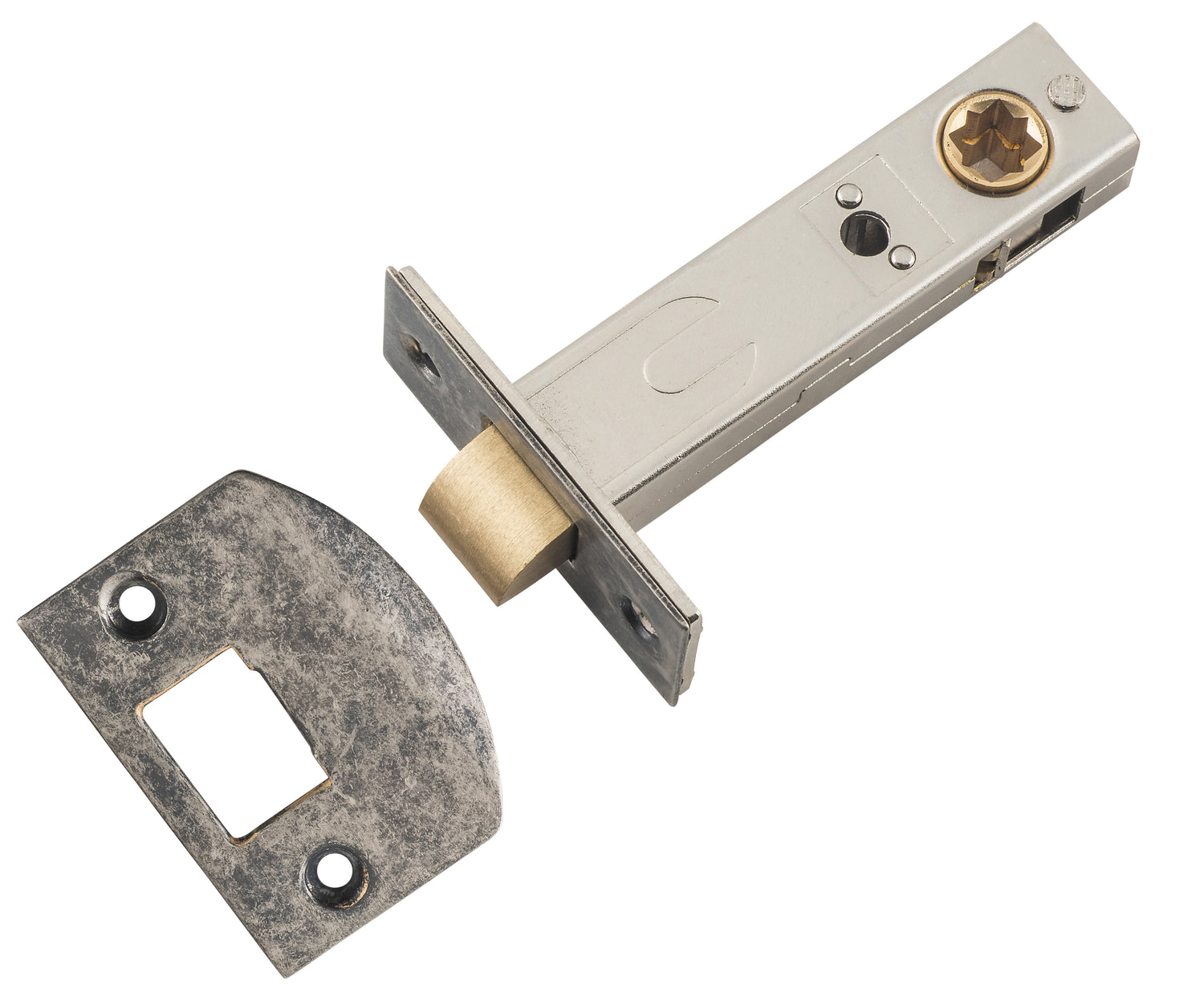

The Tradco Split Cam Tube Latch is designed for use with lever door handles and provides smooth and reliable latch operation for internal doors.
Featuring a split cam mechanism, this latch allows independent operation of each door lever when used with a split spindle, making it ideal for installations where handles on each side of the door need to function separately. It is also compatible with standard spindles for conventional lever handle setups.
The latch is manufactured with a brass faceplate and striker, providing durability and a finish that matches a wide range of architectural door hardware.
Available in three backset sizes (45 mm, 60 mm and 70 mm) and a wide range of finishes, the Tradco split cam tube latch integrates seamlessly with Tradco lever handles and other door furniture.
Features
- Split cam design for independent lever operation
- Compatible with split spindle or standard spindle
- Brass faceplate and striker plate
- Smooth latch operation
- Suitable for residential internal doors
- Designed to suit lever door handles
- Available in multiple backset sizes
Available Backsets
| Backset | Typical Application |
|---|---|
| 45 mm | Narrow stile or aluminium doors |
| 60 mm | Standard internal doors |
| 70 mm | Larger timber doors or deeper handle placement |

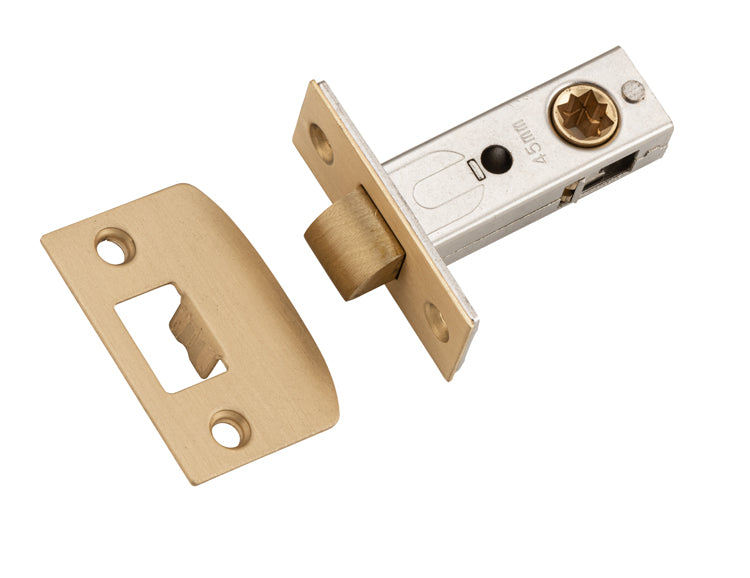

Specifications – 45 mm Backset
| Feature | Measurement |
|---|---|
| Backset | 45 mm |
| Height | 57 mm |
| Width | 25.5 mm |
| Projection | 60 mm |
| Centre to Centre | 41.5 mm |
Specifications – 60 mm Backset
| Feature | Measurement |
|---|---|
| Backset | 60 mm |
| Height | 57 mm |
| Width | 25.5 mm |
| Projection | 75 mm |
| Centre to Centre | 41.5 mm |
Specifications – 70 mm Backset
| Feature | Measurement |
|---|---|
| Backset | 70 mm |
| Height | 57 mm |
| Width | 25.5 mm |
| Projection | 85 mm |
| Centre to Centre | 41.5 mm |
