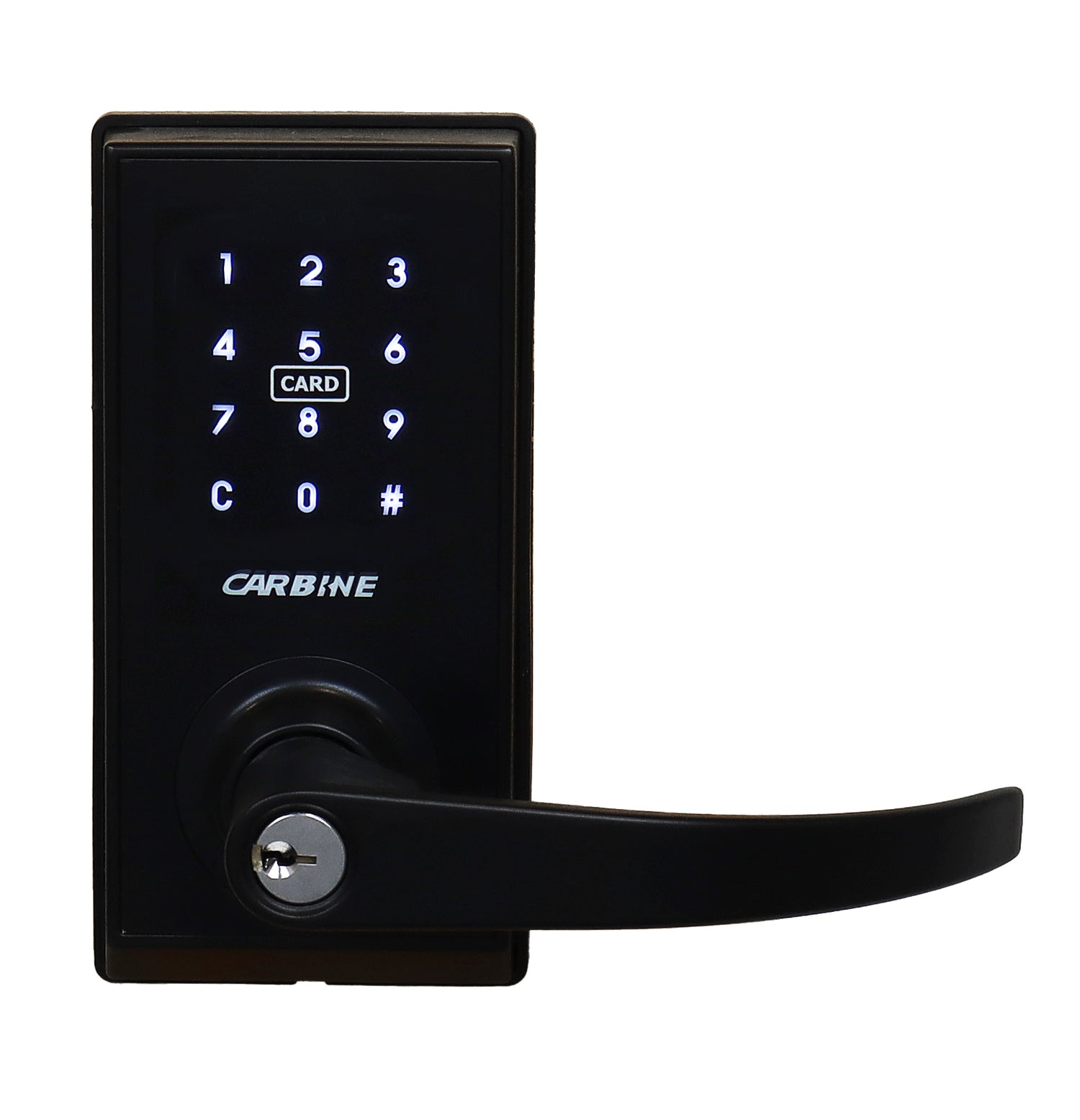

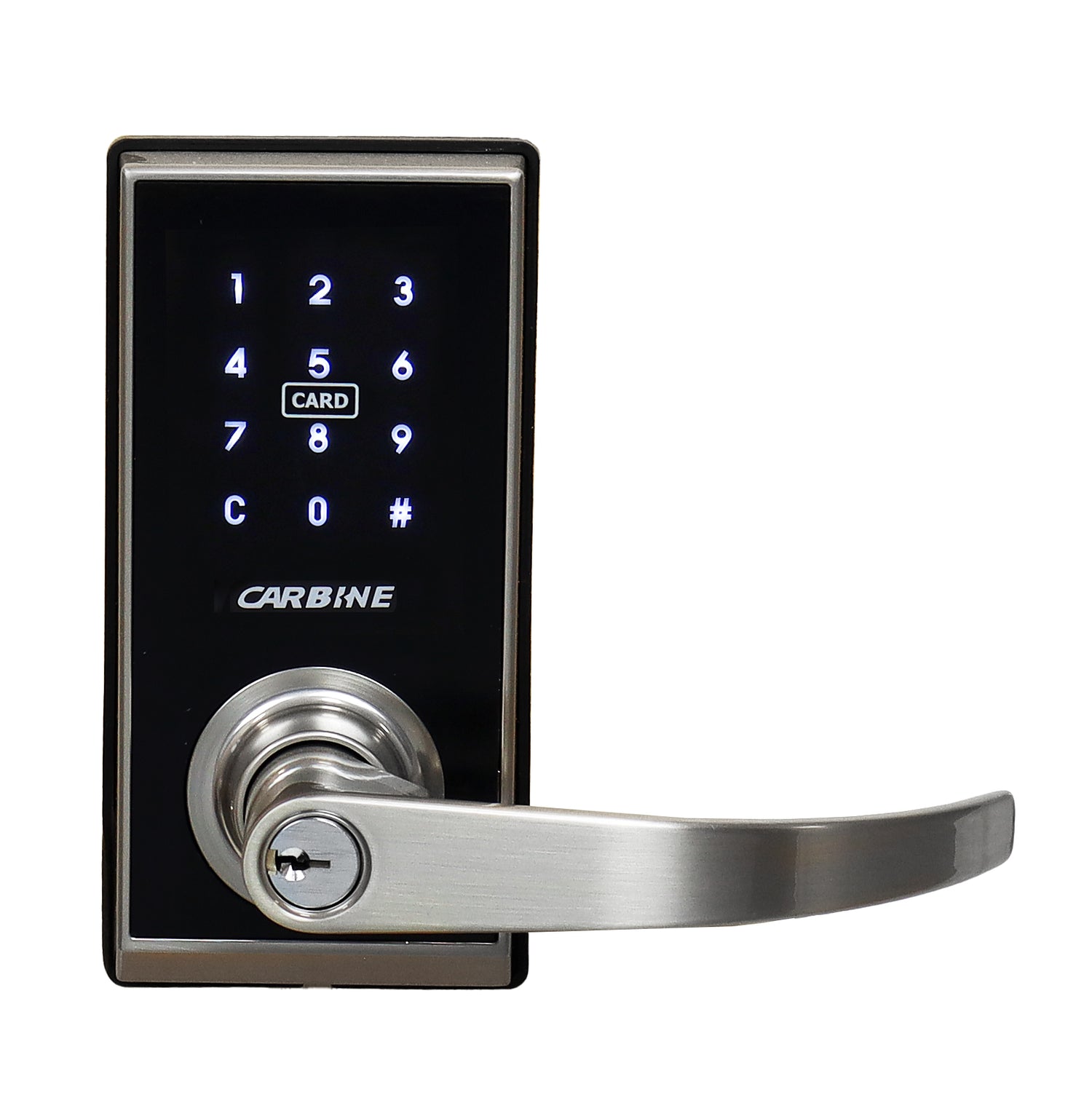

Carbine CEL2 3in1 Digital Leverset Standalone

The Carbine CEL2 electronic digital locks are available in a leverset and deadbolt model and in both satin nickel or matte black finishes.

Never worry about a lost key again as CEL2 has several keyless access options including a 4 to 8 digit code, NFC* enabled smartphone or via a number of RFID accessories. CEL2 comes in a leverset or deadbolt option, as well as a 2 hour fire rated leverset model making the CEL2 a great selection for use on emergency exits or fire doors.*

CEL2 has been designed to IP54 standards and all leverset models are NCC compliant.

^We recommend checking your smartphone before purchasing or installing. If your phone is not compatible we suggest using the RFID sticker on the back of your phone

• Recommended for medium use installations
• New stylish escutcheon with lower profile
• Improved touchscreen and motor function
• Fits in standard 54 mm lockset hole, no additional drilling required
• Fits from 35-51mm thick doors
• Touch keypad with backlight
• Entry by code, key or RFID media
• 1 programming code, 100 user codes or RFID cards
• 2 Hour fire rating (Note: separate model for fire door installations)
• IP Rating of IP54 (external)
• SL8 style lever which is NCC compliant
• Key override
• RFID entry
• Works on MIFARE S50EV1 13.56Mhz frequency
• RFID Cards, fobs, wristbands and stickers also available & sold separately
• Codes from 4 - 8 digits
• Guiding code - enter program false numbers before true code
• Vacation mode, lock out all users
• Can be put in passage mode, hold 'set' for 1 second
• Auto lock delay timer, 5-99 seconds. Pre set at 5 seconds
• Double authorisation mode possible, card and code
• ANSI G2
• C4 keyway 6 pin PD style cylinder, keyed to 5 pin key
• 60-70mm adjustable latch only, CAN NOT do 127mm
• Requires 4 x Duracell Procell AA batteries or good quality alkaline batteries only
• Batteries included in KIT part numbers
• Battery life of 5000 openings
• Box Packed
• Satin Nickel & Matte Black finishes
