Mardeco M Series 8004 Rectangular Flush Pull Privacy Set 35mm Backset

Mardeco M Series 8004 Rectangular Flush Pull Privacy Set — 35mm Backset

The Mardeco 8004 is the benchmark for sliding and cavity door privacy hardware in Australia. Flush-mounted and completely recessed, it disappears into your door when not in use, delivering a clean, minimal look that architects and builders specify by name.

This listing is for the 35mm backset version, suited to narrower door stiles where the standard 50–55mm backset won't fit. If you're unsure which backset you need, see the FAQ below or contact our team directly.

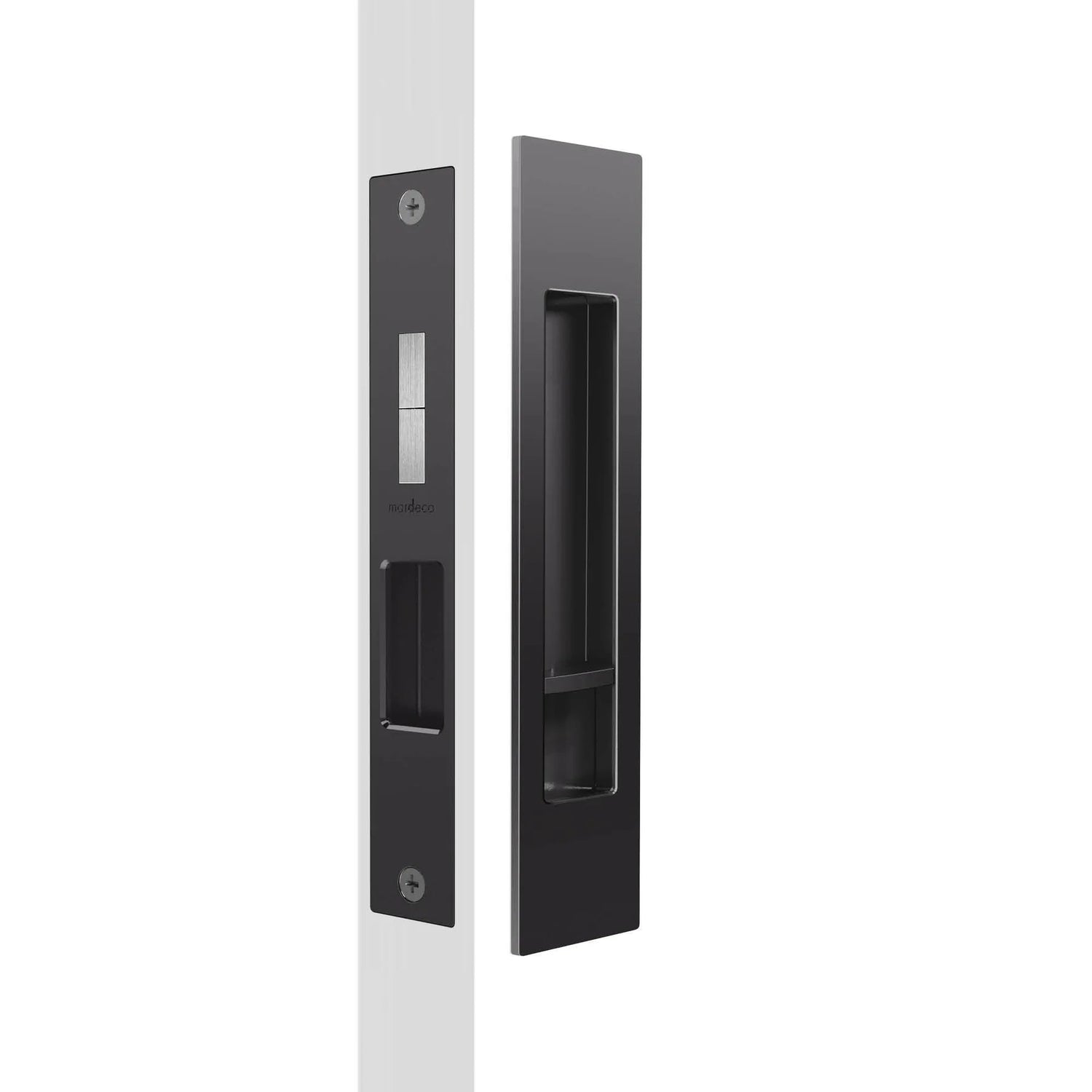

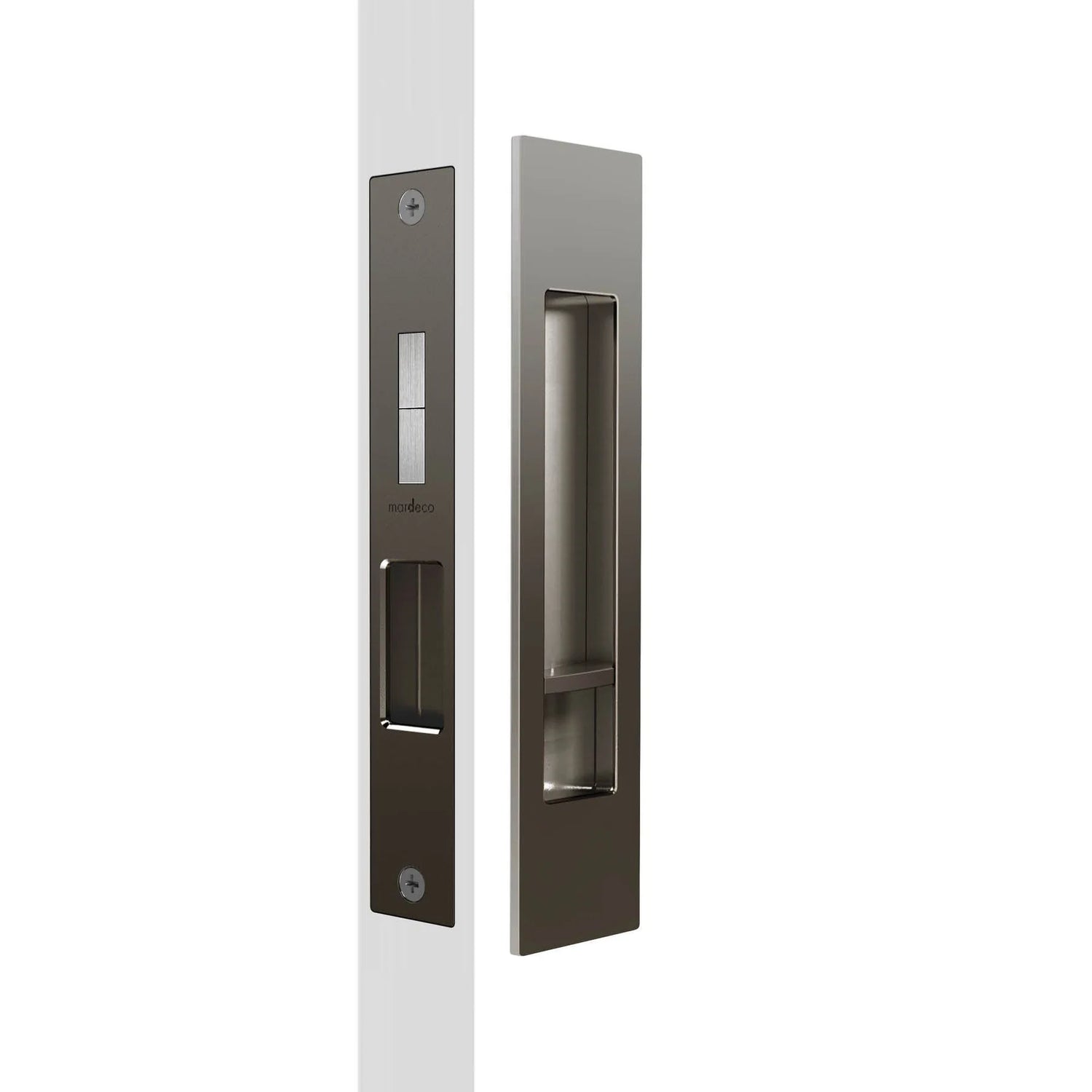

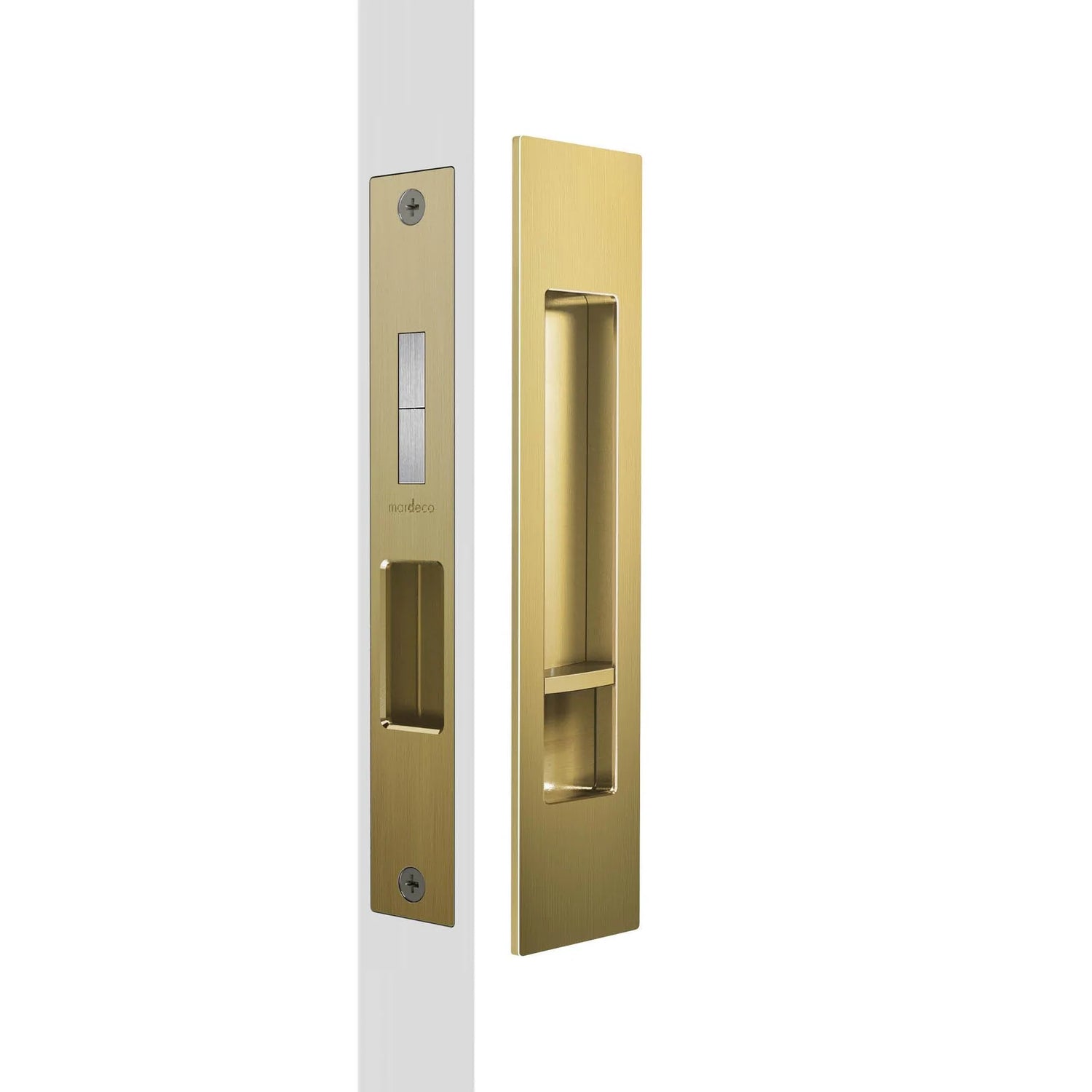

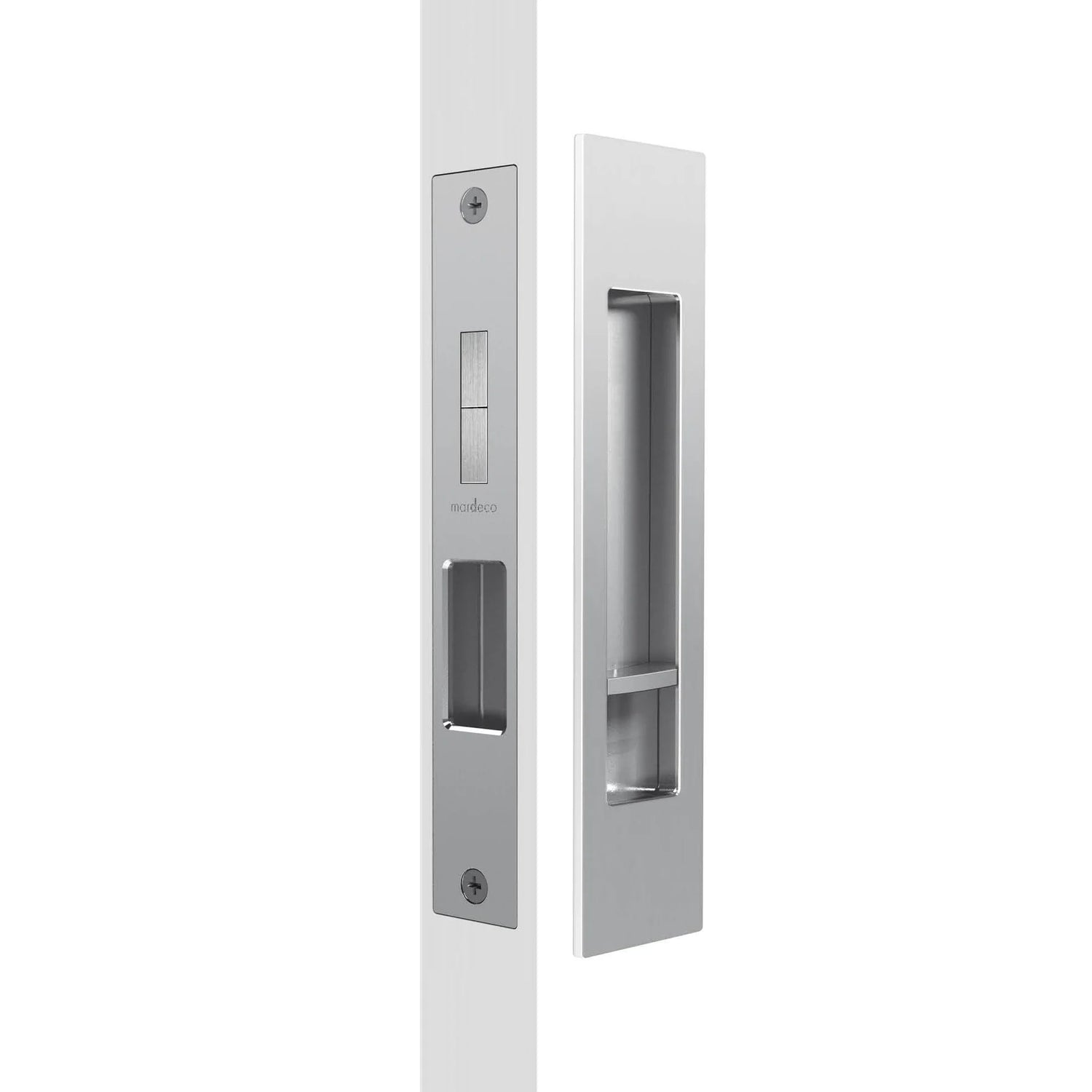

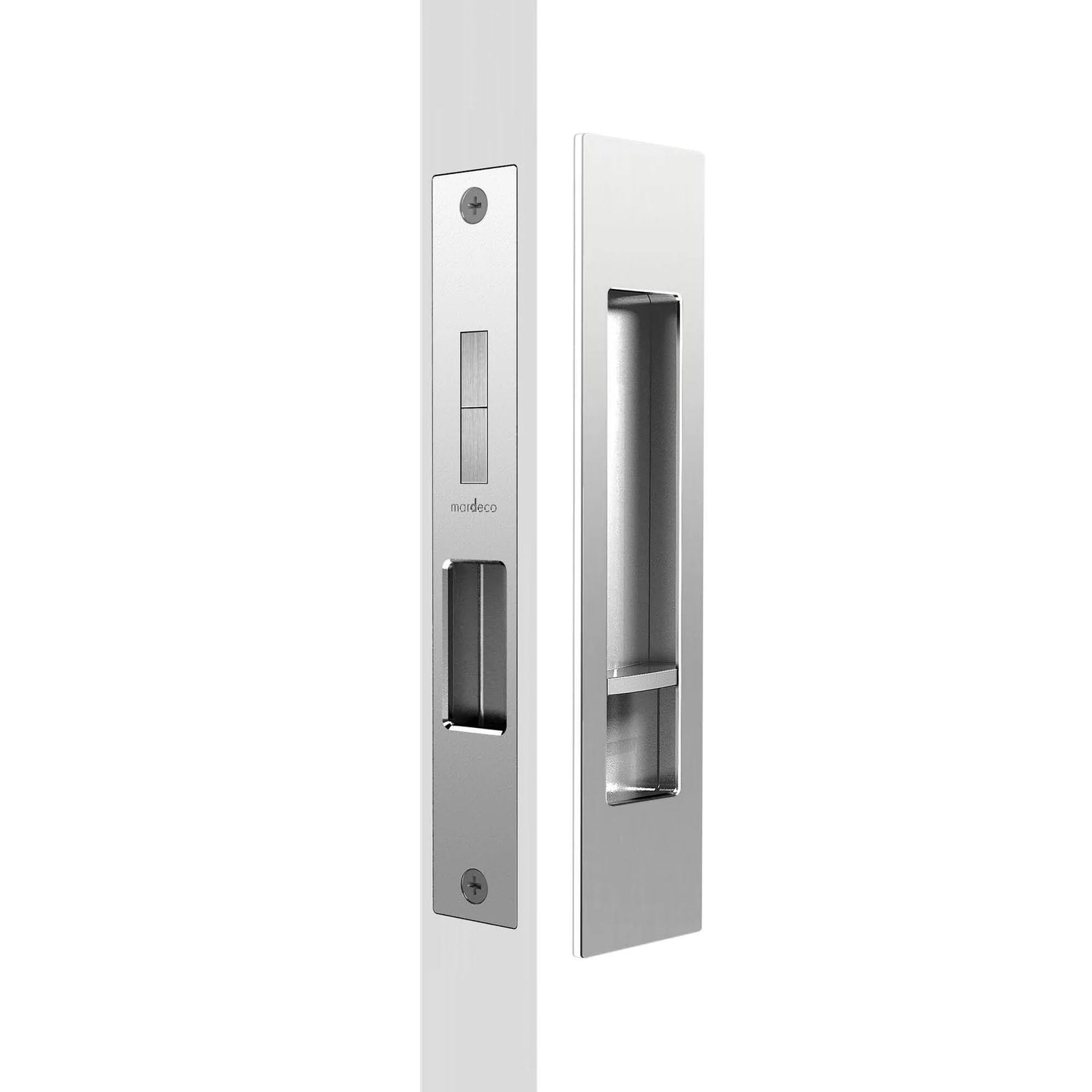

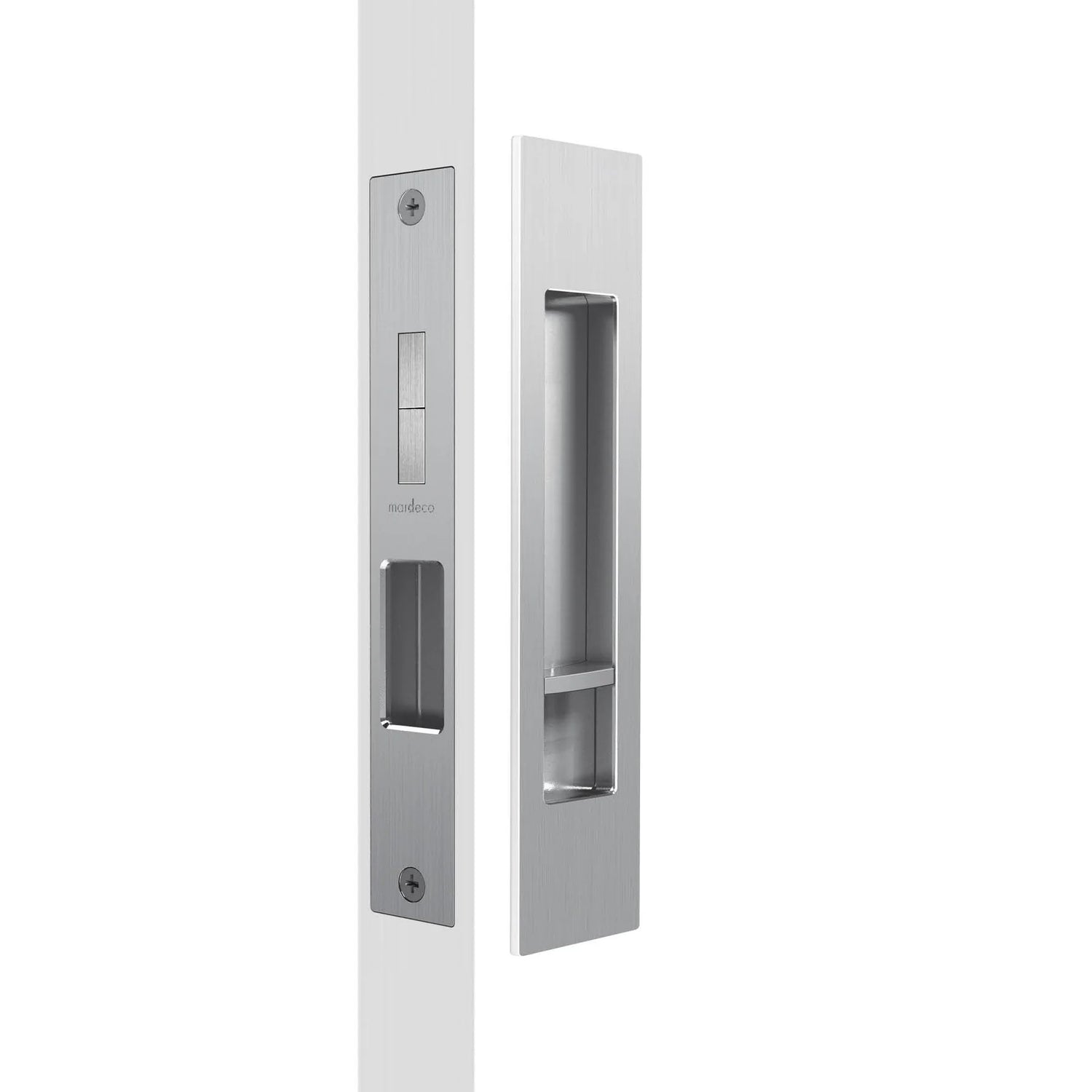

7 finishes available: Brushed Nickel · Brushed Satin Chrome · Bronze · Chrome Plate · Matte Black · Satin Brass · Satin Chrome

What's Included

Every set ships complete - nothing to source separately:

• 1 × Flush pull with privacy snib (interior)
• 1 × Flush pull with emergency release (exterior)
• 1 × Sliding door lock mechanism
• 1 × Striker plate and box
• 4 × Spindle sizes (suits door thicknesses 34mm–50mm)
• All fixing components and fasteners (timber and aluminium doors)
• Mardeco hex screwdriver
• Installation instructions with templates for multiple door configurations

Specifications

Frequently Asked Questions

What is a backset and how do I measure it? The backset is the distance from the edge of your door to the centre of the lock hole (snib). On a narrow door stile — common in cavity sliders and some aluminium frames — this is typically 35mm. Measure from the door's leading edge to where the lock sits, or will sit. If it's 50mm or more, you want our standard 8004 set instead.

What's the difference between the 35mm and the standard 8004 set? The standard Mardeco 8004 ships with an adjustable 50–55mm backset. This listing swaps that component for the 35mm brass lock slide (part BLS001/35), which is required for narrow door stiles that physically can't accommodate 50mm of clearance. Everything else in the set is identical.

Will this suit my cavity door? Yes — the 8004 is designed specifically for sliding and cavity doors. The flush-recessed design means the pull sits within the door face, so it clears the cavity frame pocket on both sides.

Can it be used on aluminium doors? Yes. The kit includes all fixings and fasteners for both timber and aluminium sliding doors.

Is professional installation available? Yes — Lockmart's qualified locksmiths can install this hardware at your property. Contact us to arrange a quote.

What if I ordered the wrong backset? Contact us before installation. We can advise on the 35mm brass lock slide replacement part (BLS001/35) if you have the standard set, or assist with exchange if unopened.

Does this set include an emergency release? Yes. The exterior pull has an emergency release function, allowing the door to be opened from outside in an emergency — a key requirement for bathroom and ensuite applications.

Why Lockmart? Lockmart has been operating for over 60 years across four Melbourne locations (Frankston, Braeside, Mornington, Rosebud). We're qualified locksmiths — not just a hardware store. When you have a question about fitment, backsets, or compatibility, you're talking to someone who installs this hardware for a living.

📍 Pick up in-store usually within 2–4 days · 🚚 Ships Australia-wide · 🔧 Local installation available
