McGrath G3 Gateway - Ethernet PoE & USB-C

The McGrath G3 Gateway is a wired Ethernet bridge that connects compatible McGrath smart locks to your network, enabling full remote management through the McGrath Locks App. Once installed, you can lock and unlock doors, manage users, change PINs, and view audit trails from anywhere in the world.

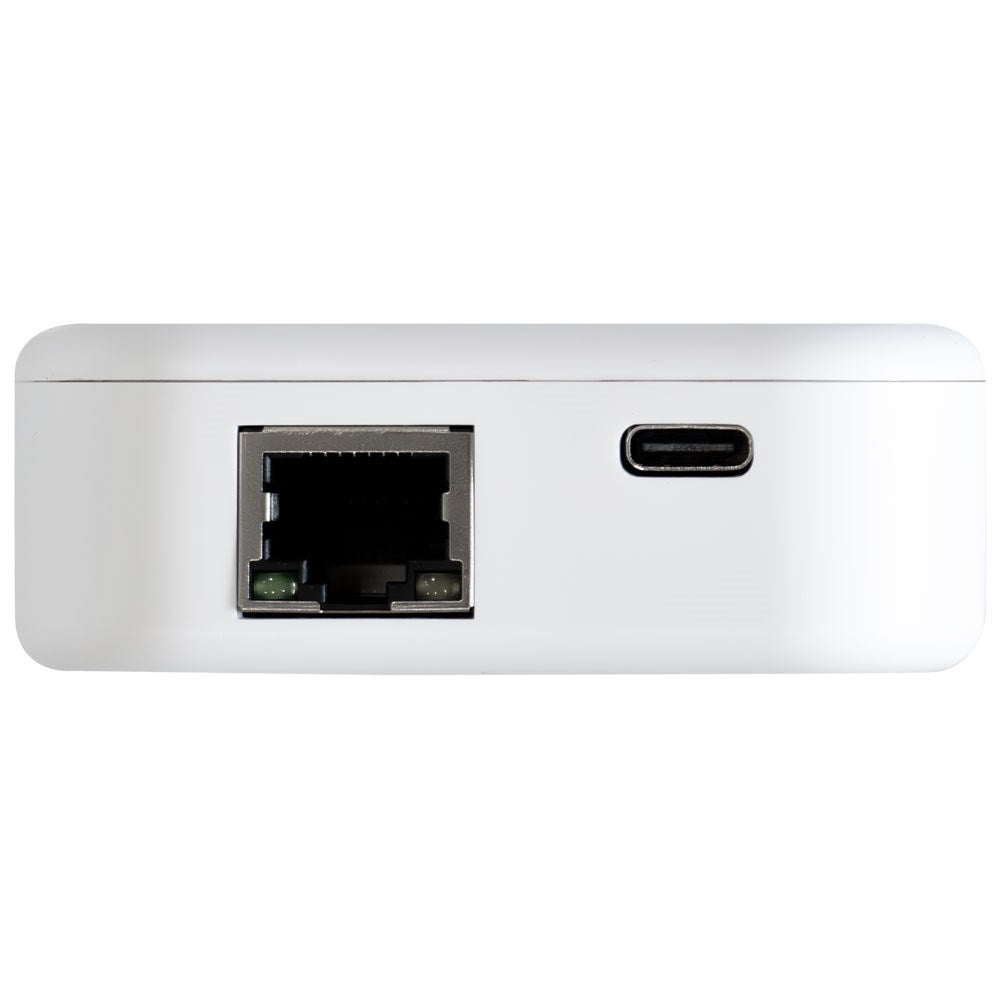

Unlike Wi-Fi gateways, the G3 connects via RJ45 Ethernet only - it does not rely on Wi-Fi at all. One Ethernet cable provides both power (via PoE) and data, making it significantly more stable and reliable in commercial installations where Wi-Fi is restricted, congested, or controlled by IT infrastructure. It can also be powered via Type-C USB where PoE switching is not available.

What the G3 Gateway Does

McGrath smart locks communicate locally via Bluetooth. Without a gateway, remote access is not possible - the lock can only be operated from within Bluetooth range. The G3 bridges that gap by sitting on your network and relaying remote commands from the McGrath Locks App to the lock via Bluetooth. It does not store user credentials or perform locking functions independently - it acts purely as a secure communication bridge between your network and the lock.

Key Features

• Wired Ethernet (RJ45) connection - no Wi-Fi dependency
• Powered by PoE (Power over Ethernet) or Type-C USB - no separate power adapter needed with PoE switch
• Supports up to 100 McGrath locks per gateway
• Recommended range: 10-15 metres from each lock (environment dependent)
• Mesh capability - multiple G3 gateways link together; if one goes offline, nearby gateways support connected devices
• Remote lock/unlock via McGrath Locks App
• Remote user management - add, change, and delete users remotely
• Remote audit trail - view access logs from anywhere
• Compact design - easy to install in comms rooms, above ceiling, or in server racks

Specifications

G2 vs G3 vs G4 vs G5 — Which Gateway Do You Need?

Not sure which gateway suits your installation? Contact Lockmart - our qualified locksmiths can advise on the right gateway for your network, lock count, and site layout.

Compatible McGrath Locks

The G3 Gateway is compatible with all Bluetooth-enabled McGrath smart locks in the Lockmart range, including:

• McGrath Kedron Digital Deadbolt
• McGrath NX1 Digital Lock
• McGrath Hamilton Digital Lock - DDA/Fire Rated
• McGrath Ashgrove 4-in-1 Digital Deadbolt
• McGrath Bardon Digital Lock - DDA Compliant
• McGrath Albion Lever Digital Lock
• McGrath Ultra Digital Lock - Security Screen Doors
• McGrath NX6 WiFi Digital Lock

Not sure if your lock is compatible? Contact Lockmart - our team can confirm compatibility and advise on gateway placement for your installation.

Supply & Installation

Lockmart's qualified locksmiths can supply and install the G3 Gateway as part of a complete McGrath smart lock system across Melbourne's south-east - Frankston, Mornington, Rosebud, and Braeside. For commercial multi-door installations, we can plan gateway placement to ensure full coverage across your site. Contact us for advice or a site assessment.
