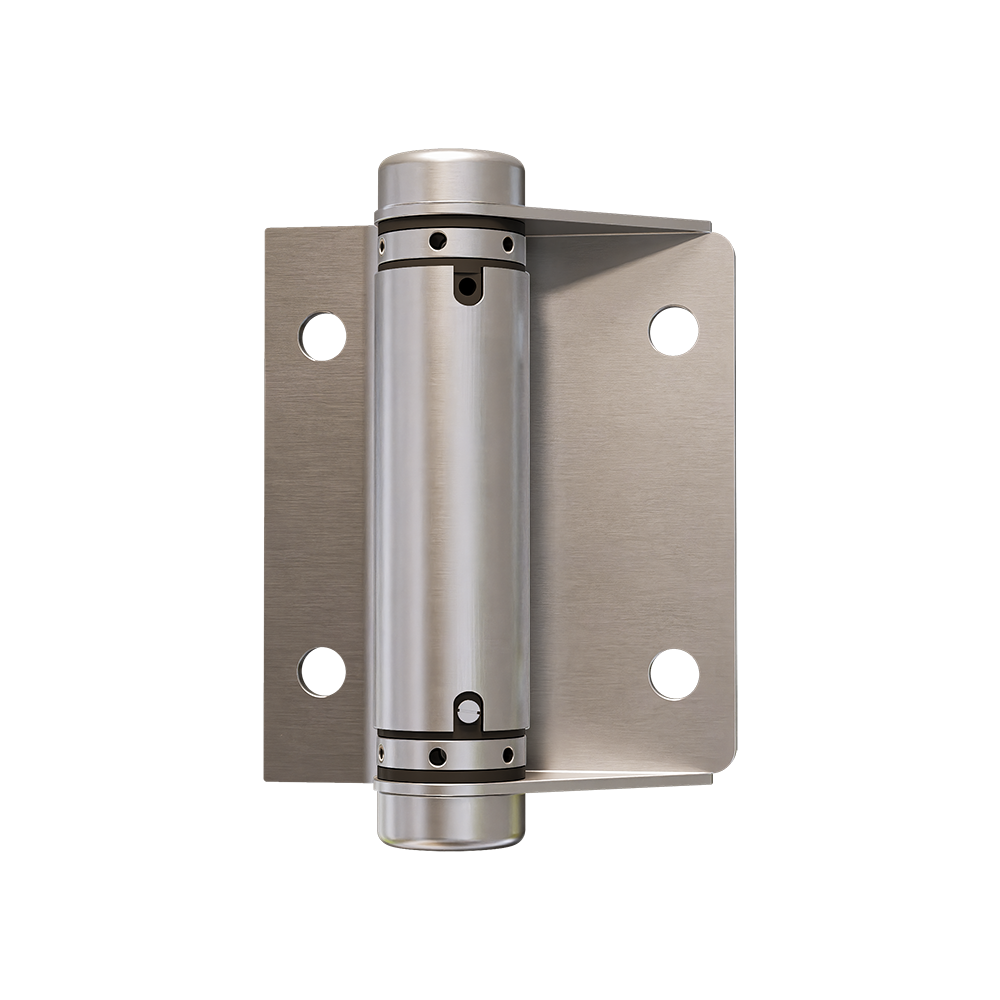

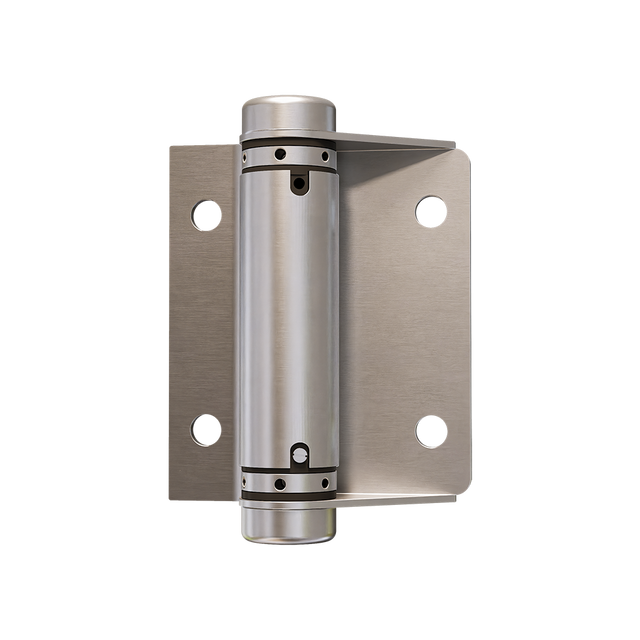

Metlam 209 Stainless Steel Spring Hinge

The Metlam 209 Spring Hinge is a visible fix, stainless steel spring hinge for commercial toilet cubicle doors. The spring gives a reliable hold open or hold closed action with tension adjustable on site.

Key features

• Satin Stainless Steel finish
• Spring-assisted action with on-site tension adjustment
• Hold Open or Hold Closed function
• Screw fix or bolt through

What's included

• 1 x 209 spring hinge
• Fixings to suit selected type

Specifications

How to order

Metlam hinges are sold individually. Choose Hold Open or Hold Closed and the fixing type. Order three hinges per door.

Ideal for

Commercial washrooms specifying stainless steel partition hardware, including high-traffic and coastal sites.

Frequently asked questions

Are these hinges sold individually?

Yes, the price is for one hinge. Metlam recommends three hinges per cubicle door to stop the door bowing, so order three per door unless your partition supplier specifies otherwise.

What is the difference between Hold Open and Hold Closed?

Hold Open hinges move the door towards the open position when the cubicle is vacant, so users can see it is free. Hold Closed hinges move the door towards the closed position for a neater look when the cubicle is not in use. Choose one function and use it on every hinge on the door.

How does a spring hinge differ from a gravity hinge?

A spring hinge uses an internal spring to move the door to its open or closed position. Because the spring tension can be adjusted on site, it gives more consistent action than a gravity hinge, particularly on heavier or slightly misaligned doors.

Should I choose Screw Fix or Bolt Through?

Screw Fix mounts the hinge to the partition board with screws and suits most installations. Bolt Through uses fixings that pass through the board, giving a stronger, more tamper-resistant fixing for high-traffic or vandal-prone washrooms.
